Mitsubishi Lancer Evolution IX 2005 - SRS Airbags, Seatbelt Pre-Tensioners (Vehicle Without Front Passenger Airbag)

3-148
CIRCUIT DIAGRAMS - EQUIPMENT

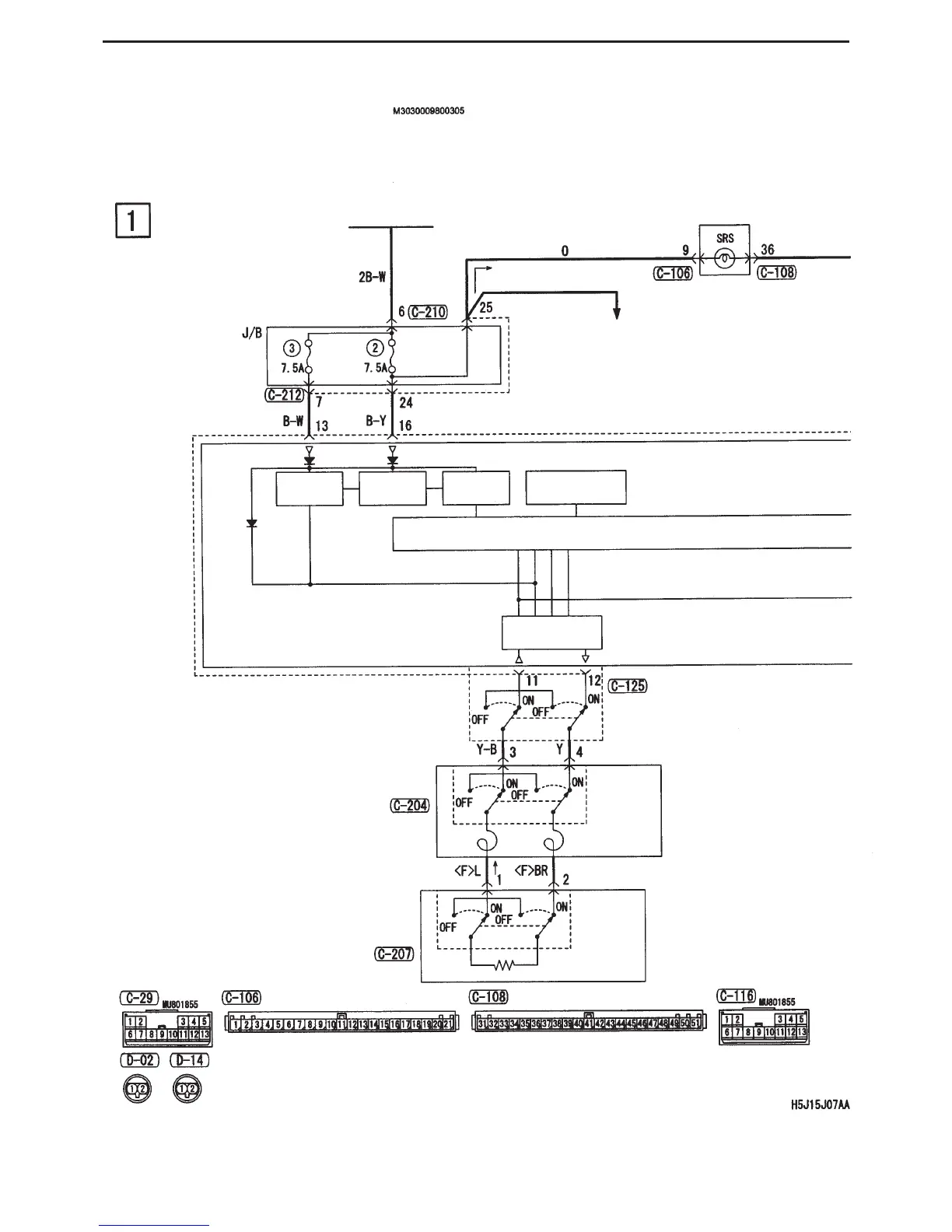

SRS airbags, seatbelt pre-tensioners (vehicle without front passenger airbag)
Note :
* : Connector inserted : ON
: Connector detached : OFF
Back-up
condenser
Ignition switch (IG1)
DC-DC
converter
Power
supply circuit
Front airbag
analogue G sensor
Squib drive circuit
Connector lock
switch*
Clock
spring
Driver’s airbag
module (squib)
Connector
lock switch*
Connector
lock switch*
Combination meter
•Windscreen washer / wiper
•Engine control
• Needle gauges
•Turn signal lights, hazard
lights
•Tail lights, position lights,
licence plate lights, lighting
monitor warning buzzer
•Electric stowable remote control door
mirrors
• Fog lamps
• Headlights
•Rear washer / wiper
• Cabin lights, boot compartment lights,
ignition key cylinder illumination light,
door ajar indicator light
