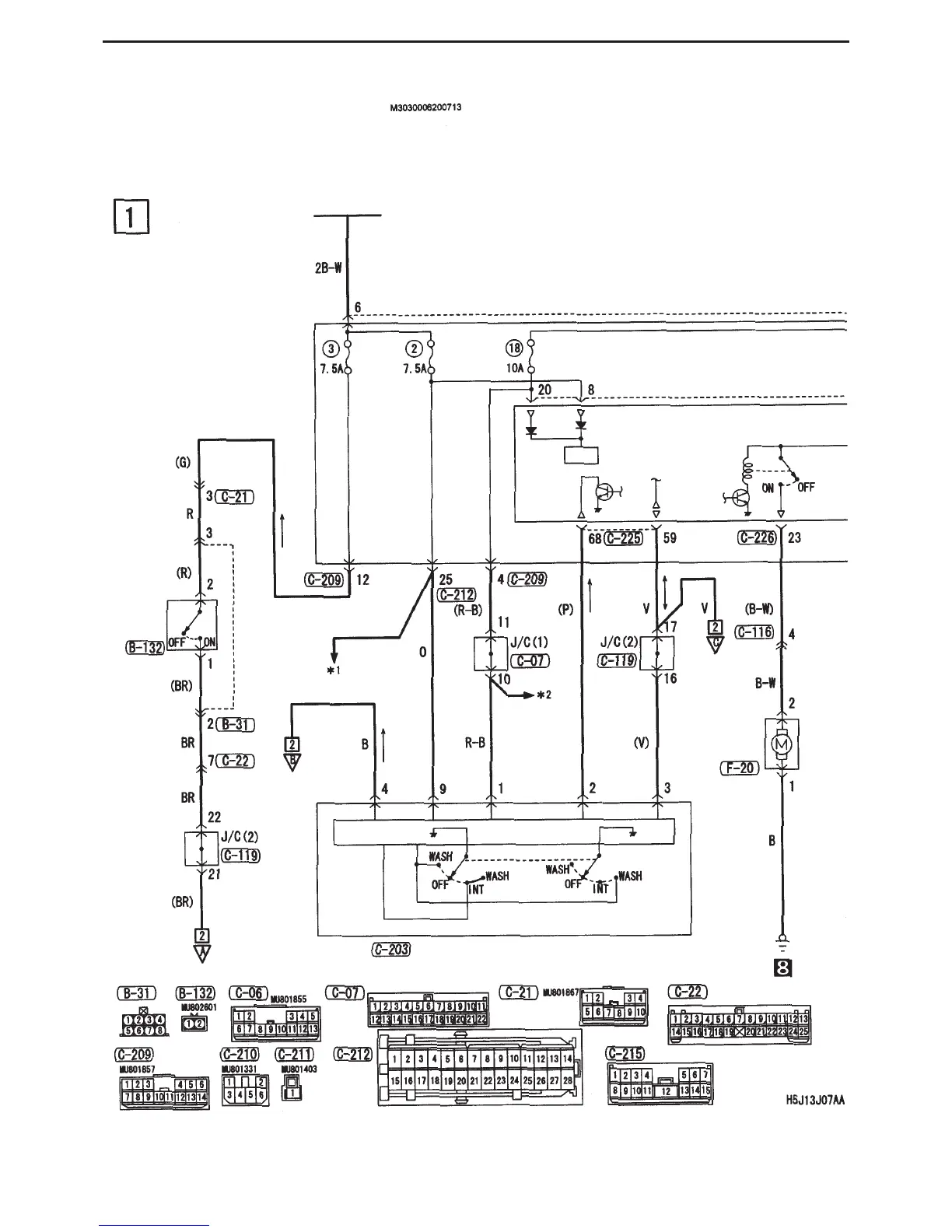

CIRCUIT DIAGRAMS - VISION / SAFETY
Rear washer / wiper
Reversing
light switch
Ignition switch (IG1)
Rear
washer /
wiper
switch
(
)
Column
switch
Power
supply
Column ECU
Rear
washer
motor
Rear
washer
relay
()
Note:
*1 :
• ABS
• ACD, AYC
• ACD (vehicle w/out
AYC)
• SRS airbags, seatbelt
pre-tensioners
•Intercooler water spray
•Windscreen washer/
wiper
•Warning light
• Engine control
• Needle meters
• Charging
•Electric stowable
remote •control door
mirrors
• Generic spare
connector
• Cabin lights, boot
compartment lights,
ignition key cylinder
illumination light, door
ajar indicator light
*2 :
•Windscreen
washer / wiper
• Turn signal
lights, hazard
lights
•Tail lights,
position lights,
licence plate
lights, lighting
monitor warning
buzzer
• Fog lamps
• Headlights
•Headlight
levelling
system
