3-109

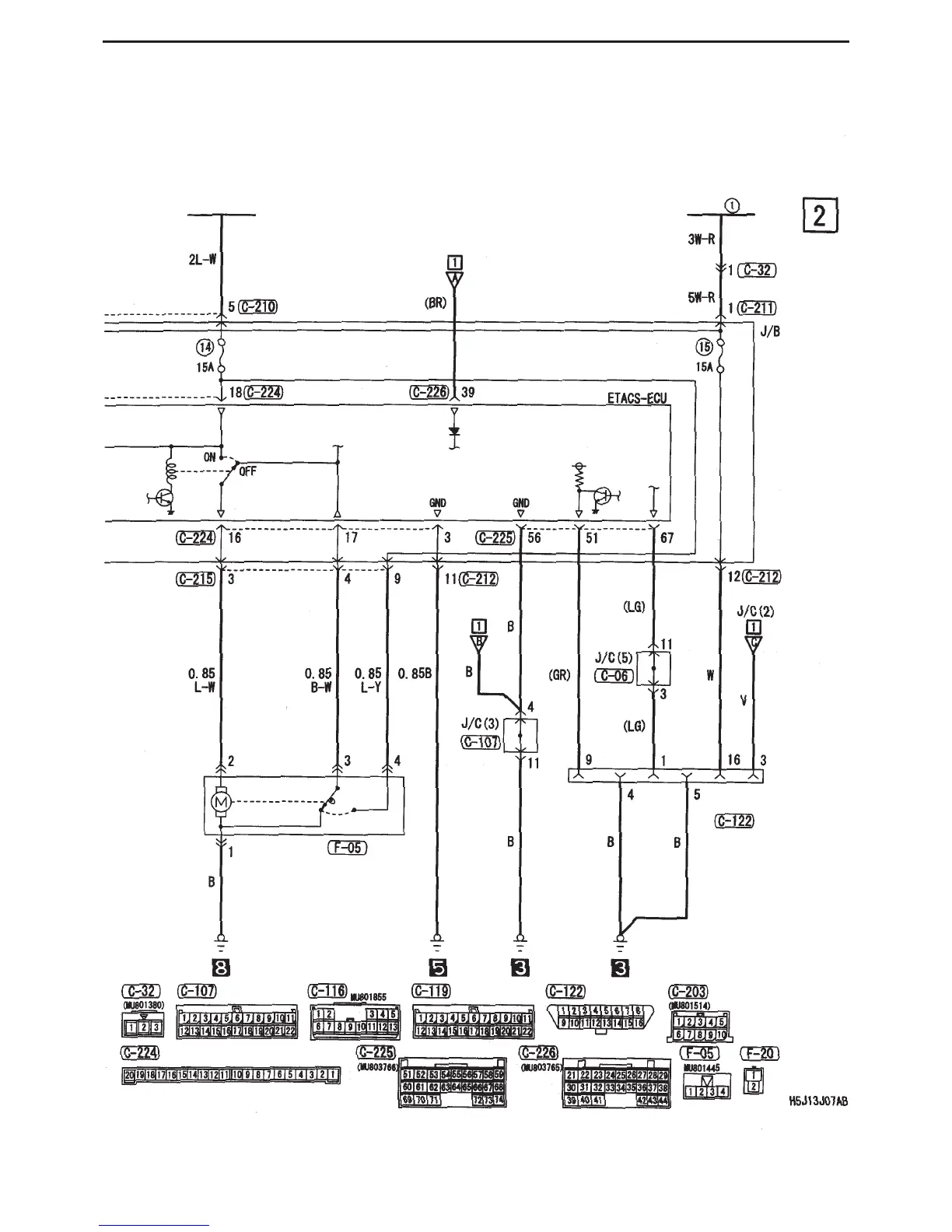

CIRCUIT DIAGRAMS - VISION / SAFETY
Ignition switch (ACC)
(Rear wiper relay)
Rear wiper
motor
Reversing light switch
J/B side connector
Column switch
Front side
Fusible link
Diagnosis
connector
