3-168

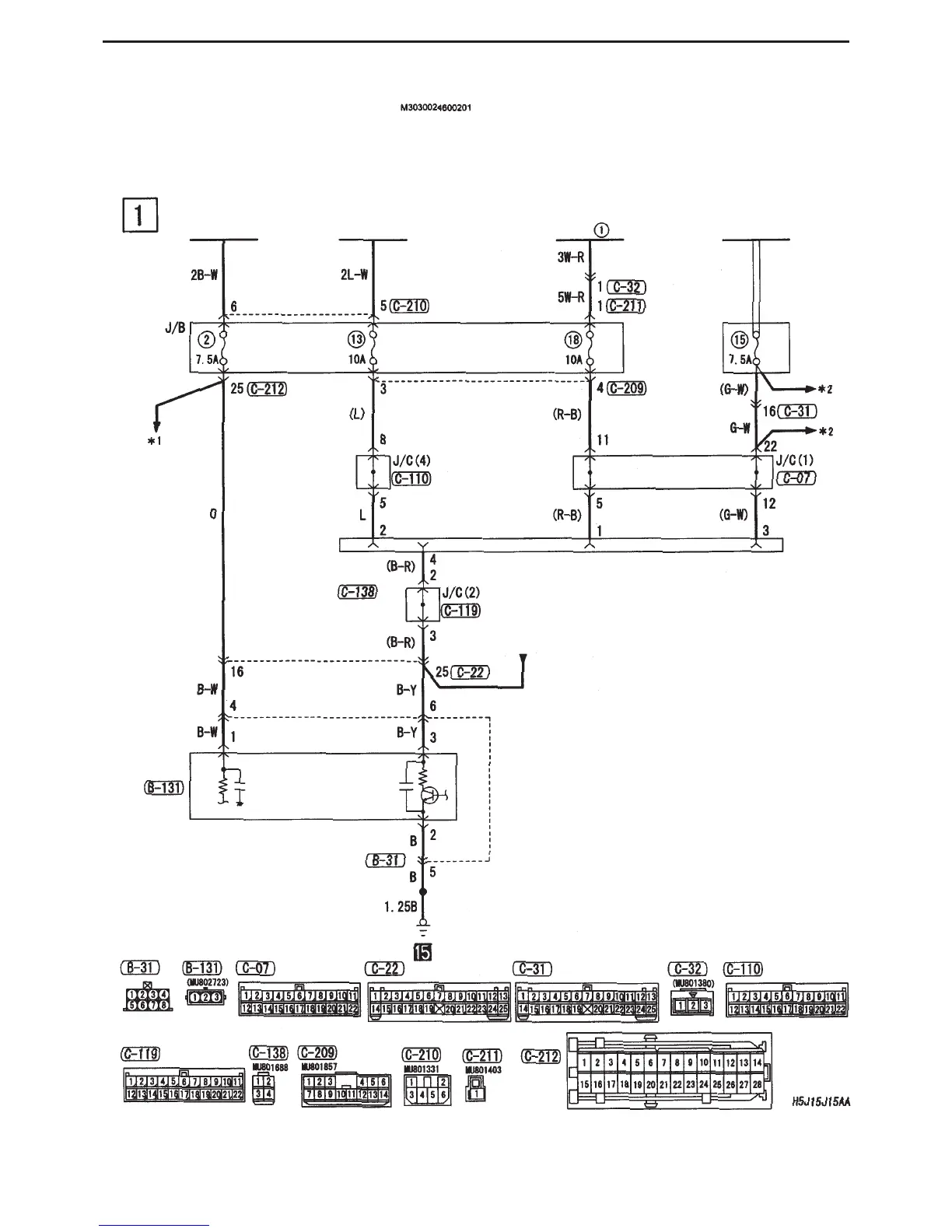

CIRCUIT DIAGRAMS - EQUIPMENT
Generic spare connector
Vehicle
speed
sensor
Ignition switch (IG1)
Ignition switch (ACC)
Fusible
link
Front ECU
(tail light relay)
Dedicated
fuse
Generic spare
connector
Engine
control
Note
*1 :
• ABS
• ACD, AYC
• ACD (vehicle w/out AYC)
• SRS airbags, seatbelt pre-tensioners
•Intercooler water spray
•Windscreen washer / wiper
•Warning lights
• Engine control
• Needle meters
• Charging
•Turn signal lights, hazard lights
•Tail lights, position lights, licence plate
lights, lighting monitor warning buzzer
• Fog lamps
• Headlights
• Rear washer / wiper
*2 :
Tail lights, position lights, licence plate
lights, lighting monitor warning buzzer
To Next Page
