Stop Lights

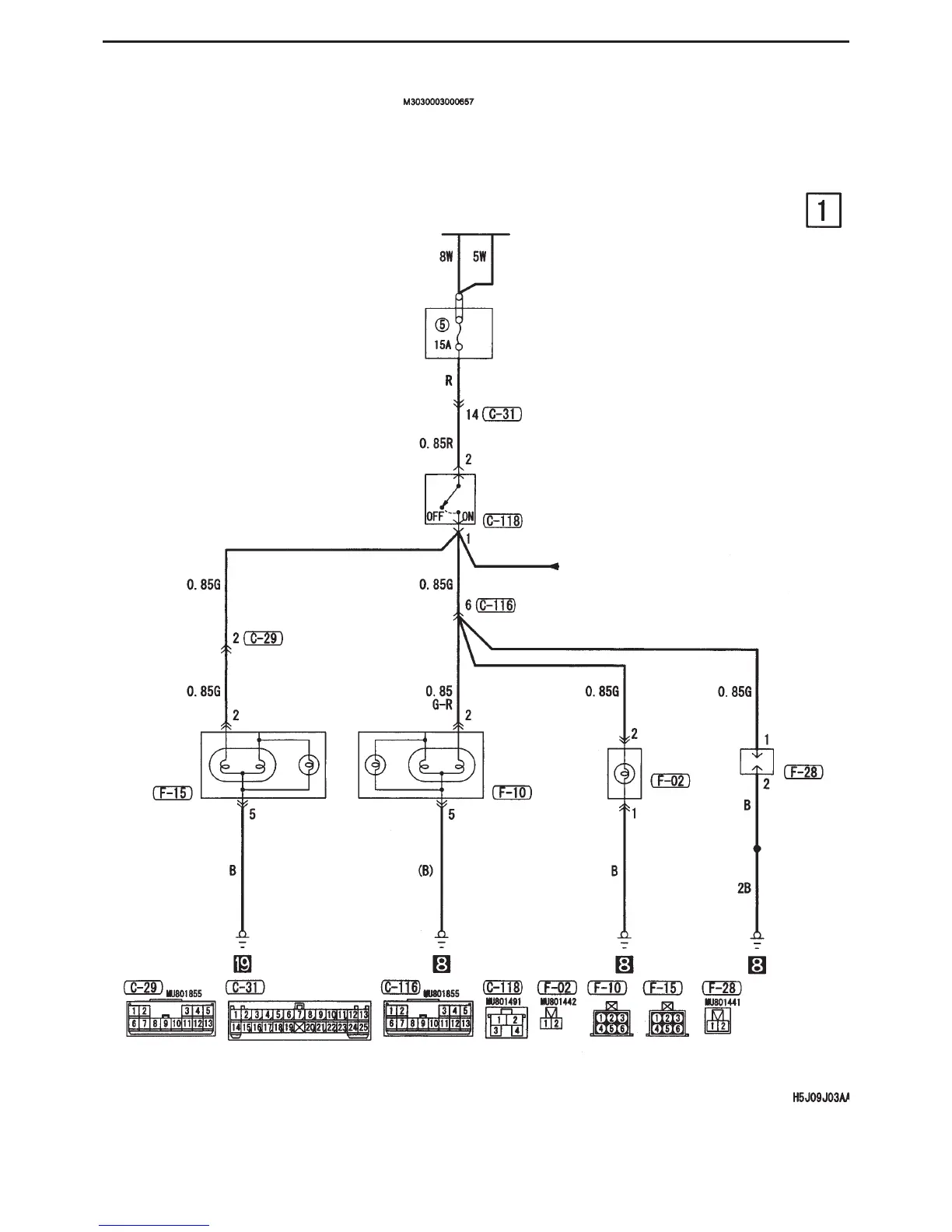

CIRCUIT DIAGRAMS - SIGNALS
Battery
Dedicated
fuse
Stop light
switch
Rear combination
light (stop : LH)
Rear combination
light (stop : RH)
High-mount
stop light
Dummy connector
• ABS
• ACD, AYC
• ACD (vehicle w/out AYC)
