Mitsubishi Lancer Evolution IX 2005 User Manual

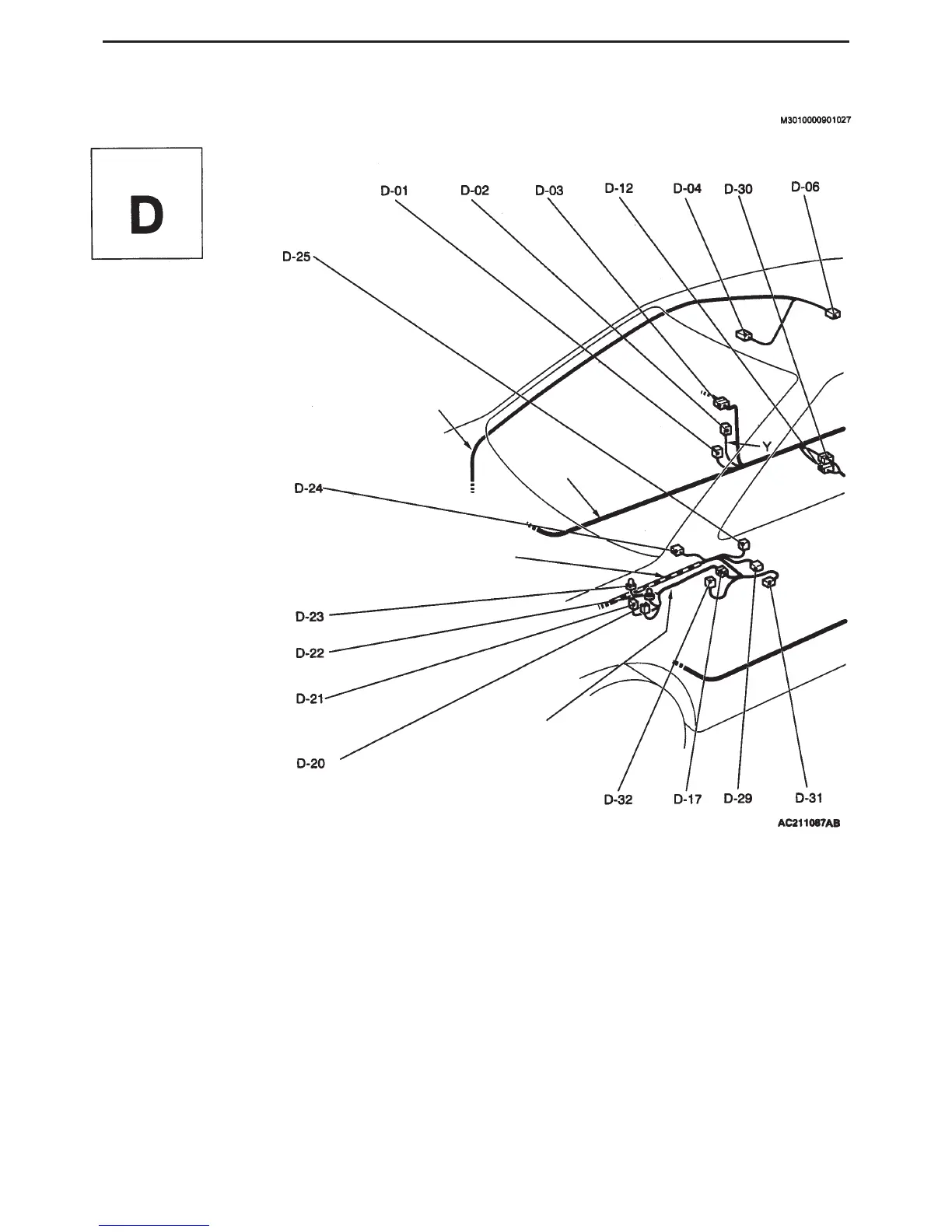

LAYOUT DIAGRAMS - FLOOR / ROOF
1-16
D-01 (3) Door switch (front : RH)
D-02 (2-black) Seatbelt pre-tensioner (RH)
D-03 (8) Floor harness (RH) / Rear door harness
(RH) junction
D-04 (2) Front cabin lamp
D-05 (2-black) Rear ABS sensor (RH)
D-06 (2-grey) Rear cabin lamp (Vehicle not fitted with
sunroof)
D-07 (3) Door switch (rear : RH)
D-09 (3) Door switch (rear : LH)
D-10 (5-grey) Fuel pump and fuel gauge unit (main)
D-11 (2-black) Rear ABS sensor (LH)
D-12 (8) Floor harness (RH) / Fuel harness
junction
D-13 (8) Floor harness (LH) / Rear door harness
(LH) junction
D-14 (2-black) Seatbelt pre-tensioner (LH)
D-15 (3) Door switch (front : LH)
FLOOR / ROOF
Connector Symbol
Roof harness
Floor
harness (RH)
Instrument panel harness
Console harness
