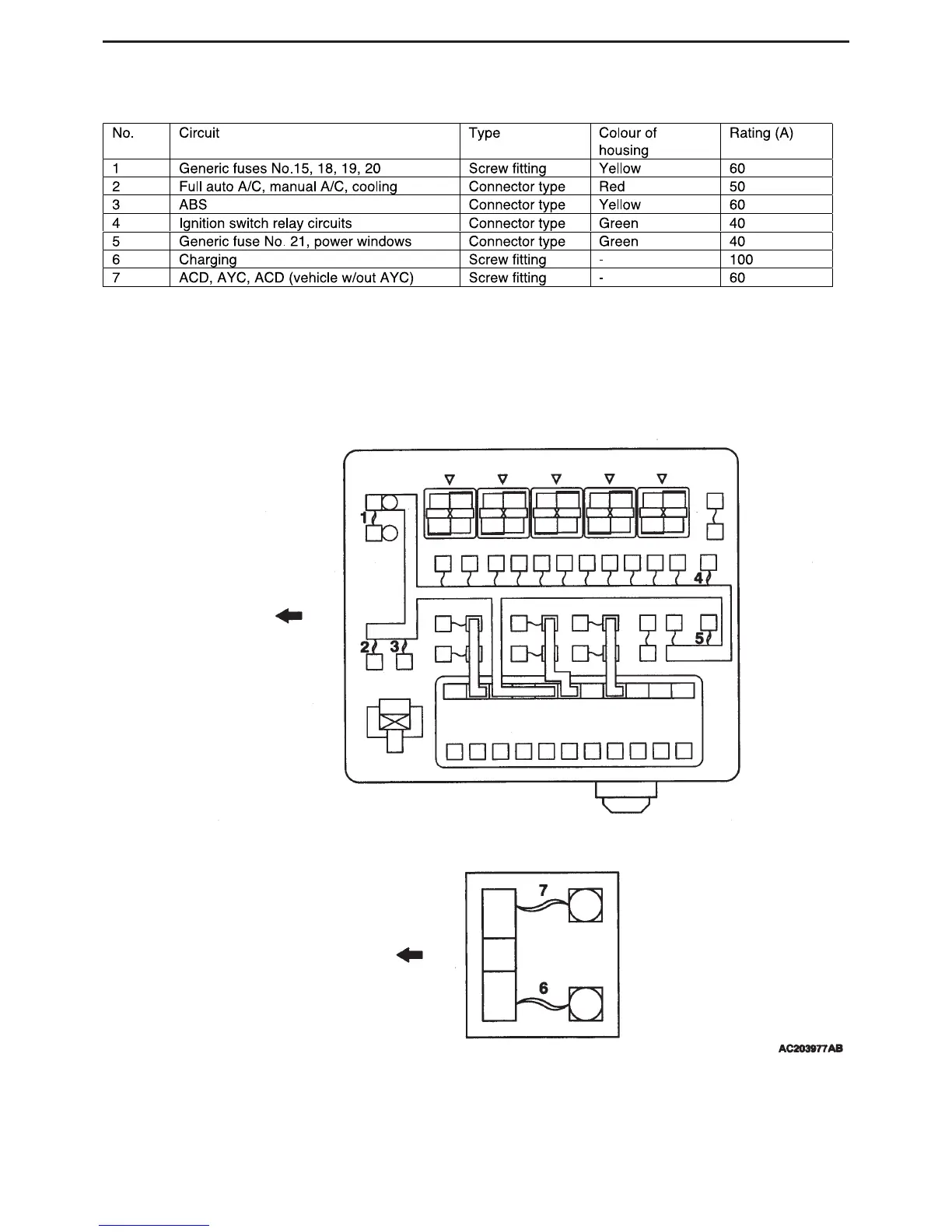

CIRCUIT DIAGRAMS - CENTRAL JUNCTION

3-11

CENTRAL JUNCTION

Fusible Links (relay box inside engine compartment and fuse box connected directly to battery)

Relay box in engine compartment

Fuse box connected directly to battery

Front of vehicle
