METERS
Needle meters

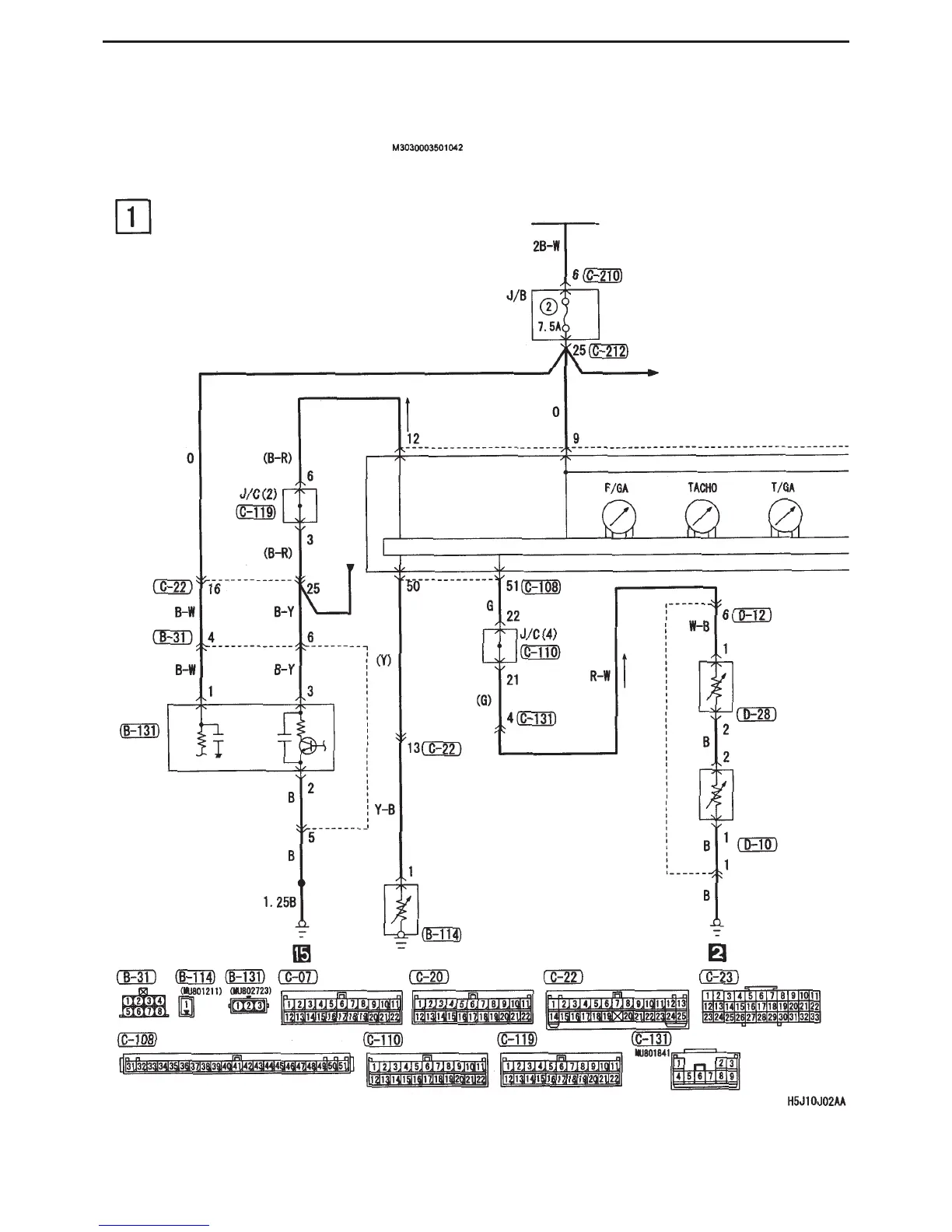

CIRCUIT DIAGRAMS - METERS
Ignition switch (IG1)
Engine
control
•Windscreen washer / wiper
•Turn signal lights, hazard
lights
•Tail lights, position lights,
licence plate lights, lighting
monitor warning buzzer
• Fog lamps
• Headlights
•Rear washer / wiper
Control circuit
Vehicle speed
sensor
Water
temperature
gauge unit
Fuel pump
& fuel gauge
unit (main)
Fuel gauge
unit (sub)
