3-86

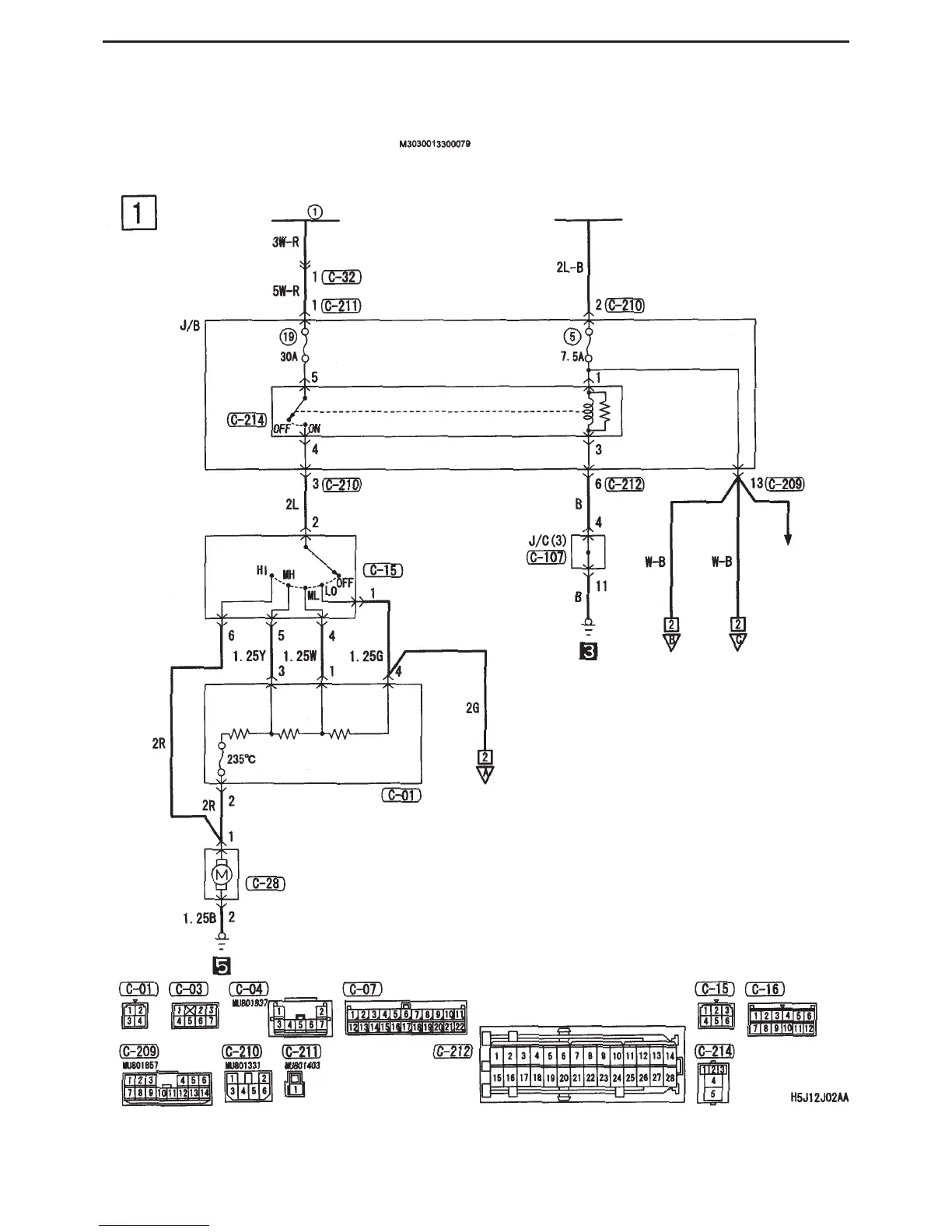

CIRCUIT DIAGRAMS - TEMPERATURE CONTROL
TEMPERATURE CONTROL
Heater
Fusible link
Blower
relay
Ignition switch (IG2)
Blower switch
Intercooler
water spray
Register
Blower
motor
