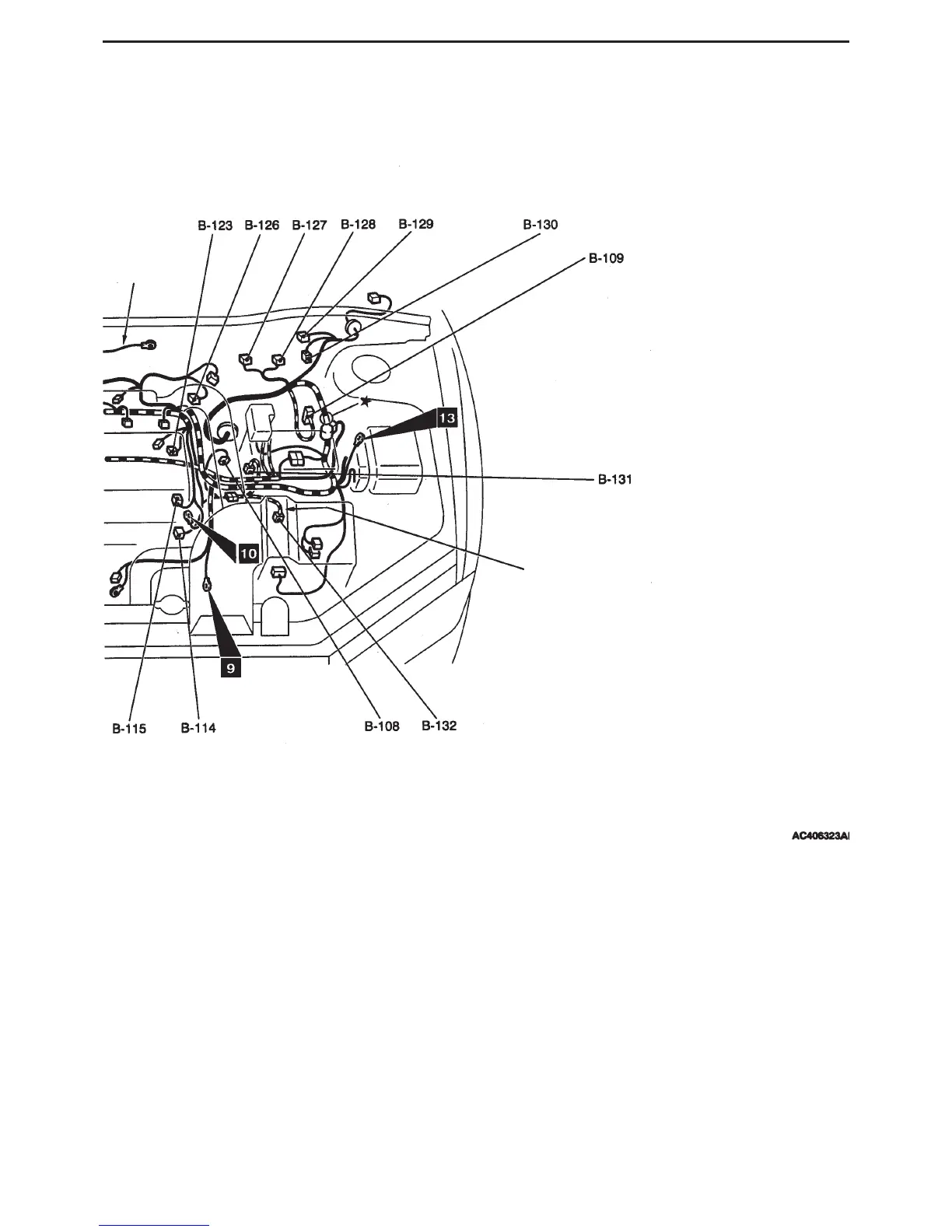

LAYOUT DIAGRAMS - ENGINE / TRANSMISSION

1-9

B-126 (6-black) Idle speed control servo

B-127 (4) Electric pump relay

B-128 (4) Fuel pump relay 3

B-129 (6-black) Register (for injector)

B-130 (2-black) Fuel pump register

B-131 (3-black) Vehicle speed sensor

B-132 (2-black) Back-up lamp switch

B-133 (2-black) Secondary air control solenoid valve

B-134 (2-black) Oil feeder control valve

B-135 (3-black) Manifold absolute pressure sensor

Ground cable

Transmission harness
