GENERAL INFORMATION - HOW TO READ THE WIRING DIAGRAMS
0-5

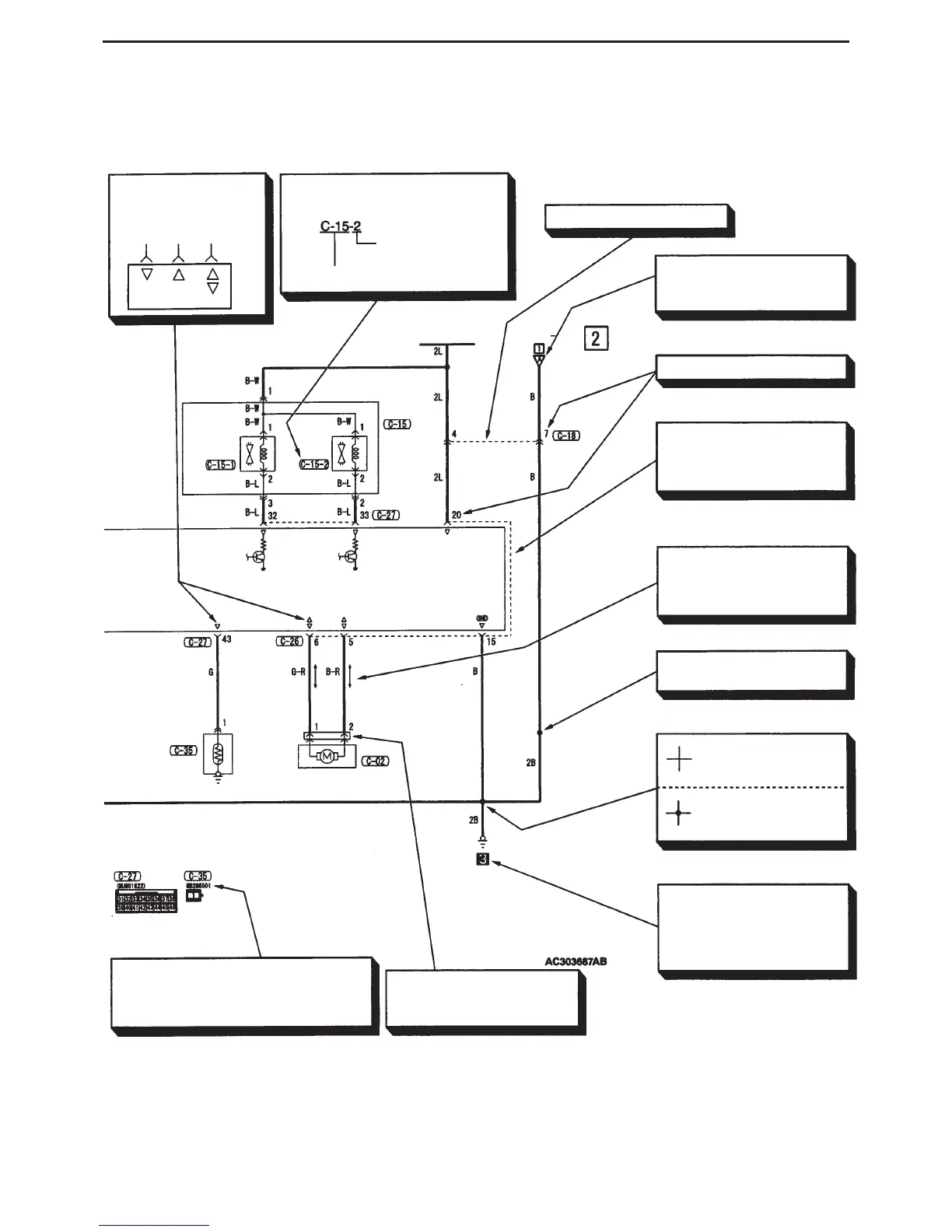

Indicates input / output to
and from control unit
(direction of current flow).
Input Output Input/Output
Indicates a wiring connector inside a device,
which is not shown in the layout diagrams.
Example :
Indicates a connector
located inside a
device, numbered in
order starting from 1.
Indicates the number of the connector
shown in the layout diagram.
Indicates that these are the same
intermediate connector.
Indicates that the diagram
continues from section [A] in
block [1].
Indicates the terminal No.
If two or more connectors are
connected to the same device, a
broken line between parts indicates
that the same connector is used.
The two-way arrow shows that
current can flow downwards or
upwards, under the control of
the ECU.
Indicates a harness junction point
where the wire changes colour or
diameter.
Indicates an intersection
where the wires are not
connected.
Indicates an intersection
where the wires are
connected
Indicates the representative earth
point on the vehicle body for that
circuit. (This number matches that of
the earth point in the layout diagrams
and the diagrams of individual part
installation positions.)
Indicates a spare connector, if the
corresponding device is not
installed, due to the vehicle
specifications.
Indicates the connector part number given in
the harness repair manual. A number in
( ) indicates the part number of the connector
that corresponds to a connector symbol.
Ignition
switch (IG1)
Solenoid
valve 1
Solenoid
valve
2
Solenoid
valve
ASSY
Sensor
Motor
Register
To Next Page
