3-161

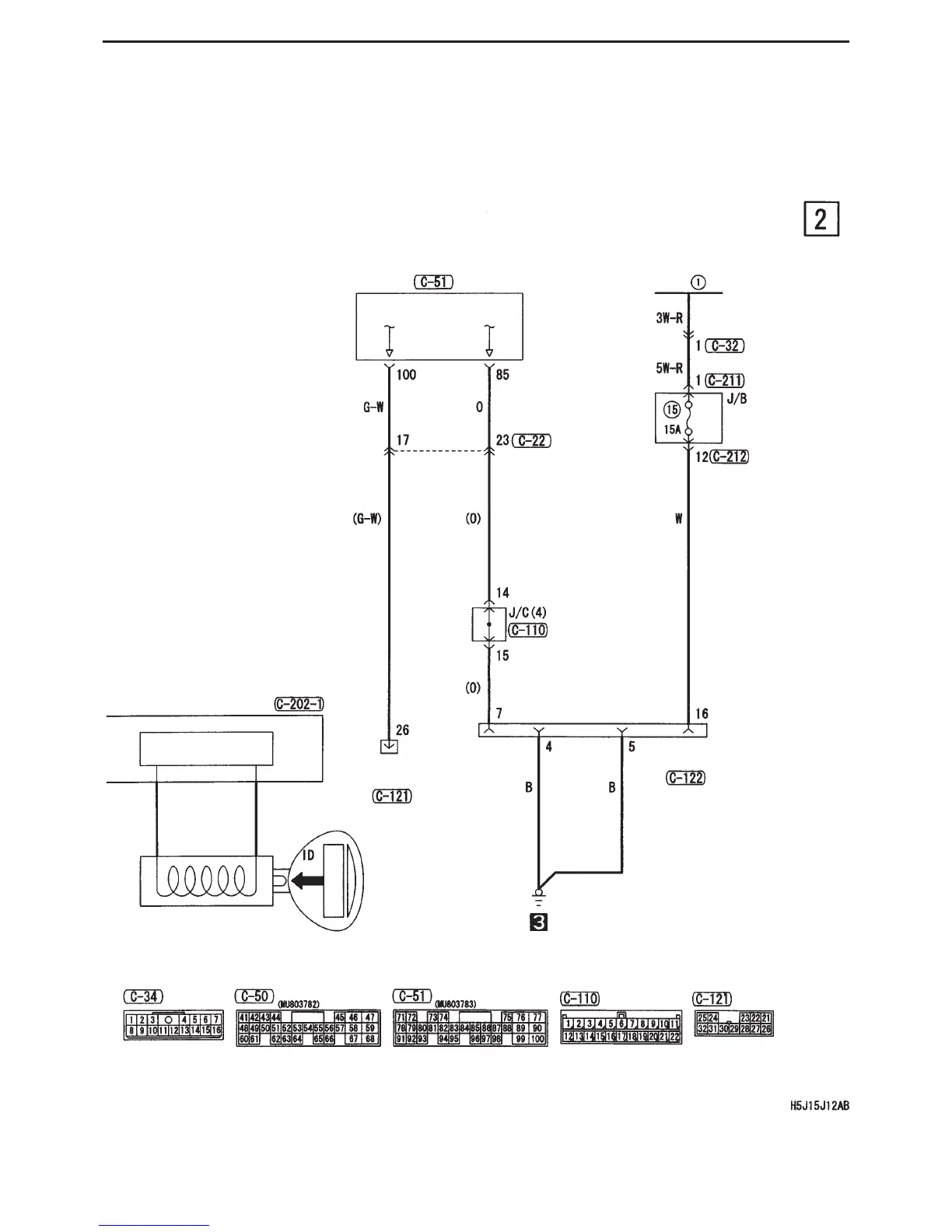

CIRCUIT DIAGRAMS - EQUIPMENT
High-frequency
circuit
Ignition key ring
antenna
Immobiliser ECU
Diagnosis
connector
Transponder
Engine ECU
Fusible
link
Diagnosis
connector
