3-124

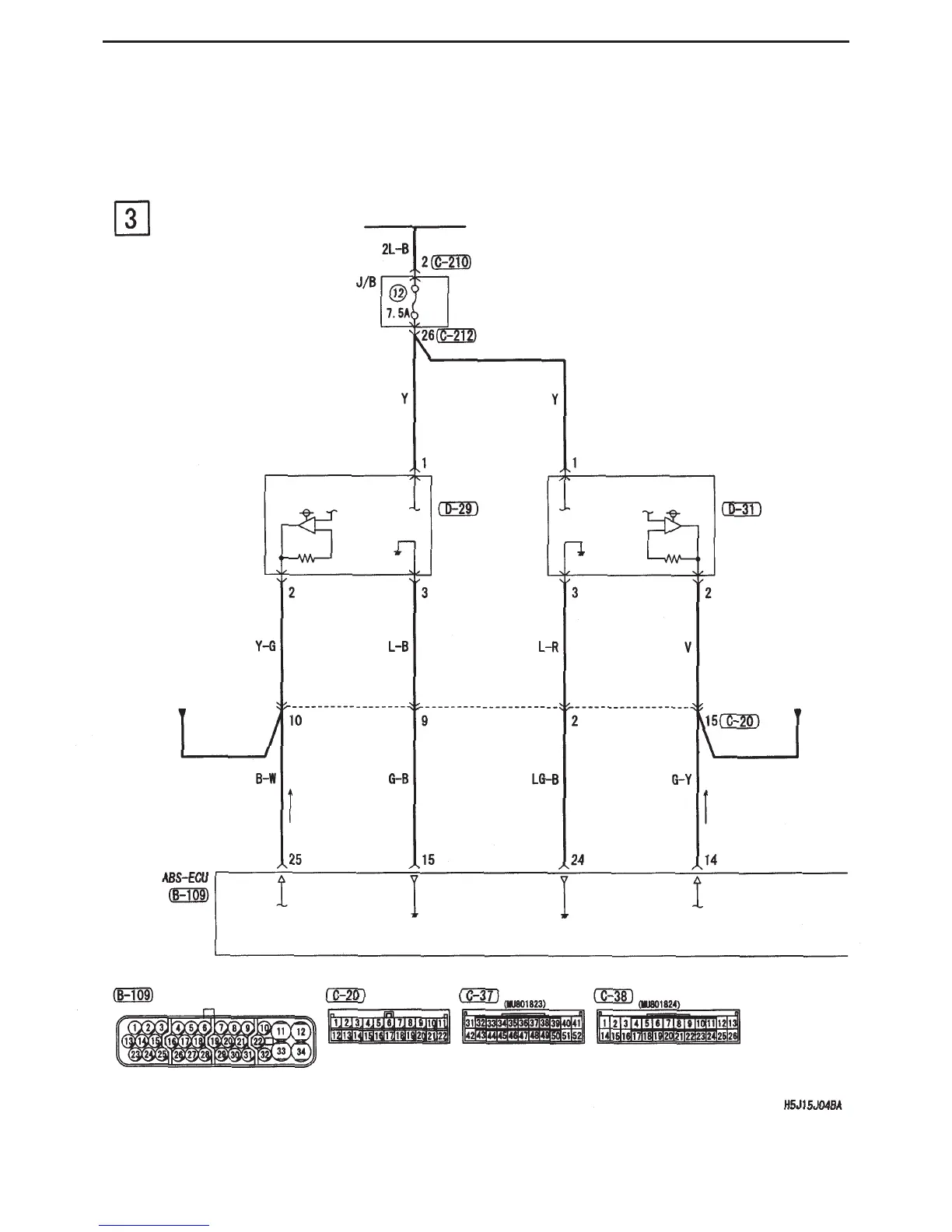

CIRCUIT DIAGRAMS - EQUIPMENT
ABS (cont’d)
ACD, AYC ACD
(vehicle w/out AYC)
Ignition switch (IG2)
Front / rear G
sensor
Lateral G
sensor
ACD, AYC ACD
(vehicle w/out AYC)
