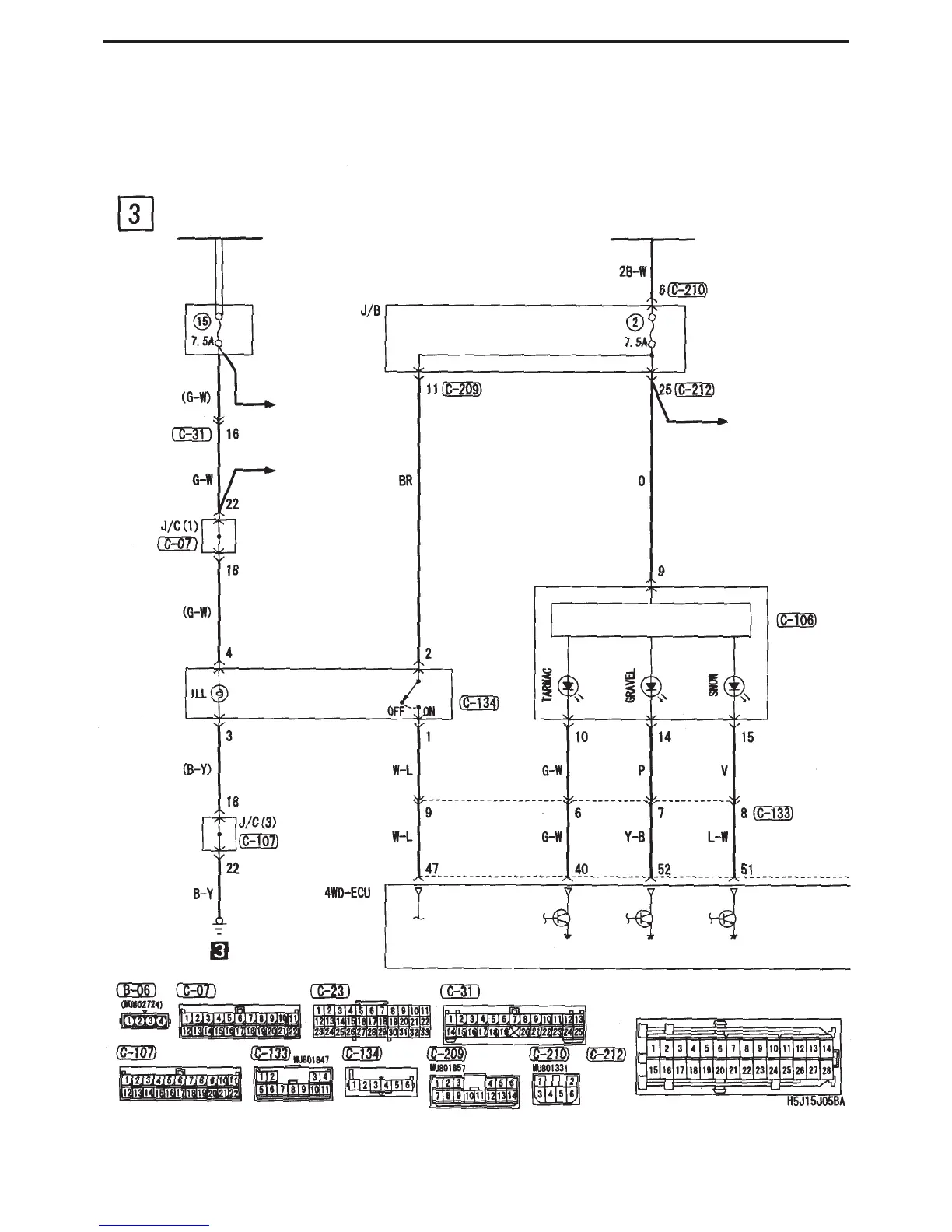

CIRCUIT DIAGRAMS - EQUIPMENT
ACD (vehicle not fitted with AYC) (cont’d)
Front ECU
(tail light relay)
Dedicated
fuse
Tail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer
Tail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer
ACD mode
switch
Drive circuit
Ignition switch (IG1)
•Windscreen washer /
wiper
• Engine control
• Needle gauges
•Turn signal lights,
hazard lights
•Tail lights, position lights,
licence plate lights,
lighting monitor warning
buzzer
•Electric stowable remote
control door mirrors
• Generic spare connector
• Fog lamps
• Headlights
• Rear washer / wiper
• Cabin lights, boot
compartment lights,
ignition key cylinder
illumination light, door
ajar indicator light
Combination
meter
