3-134

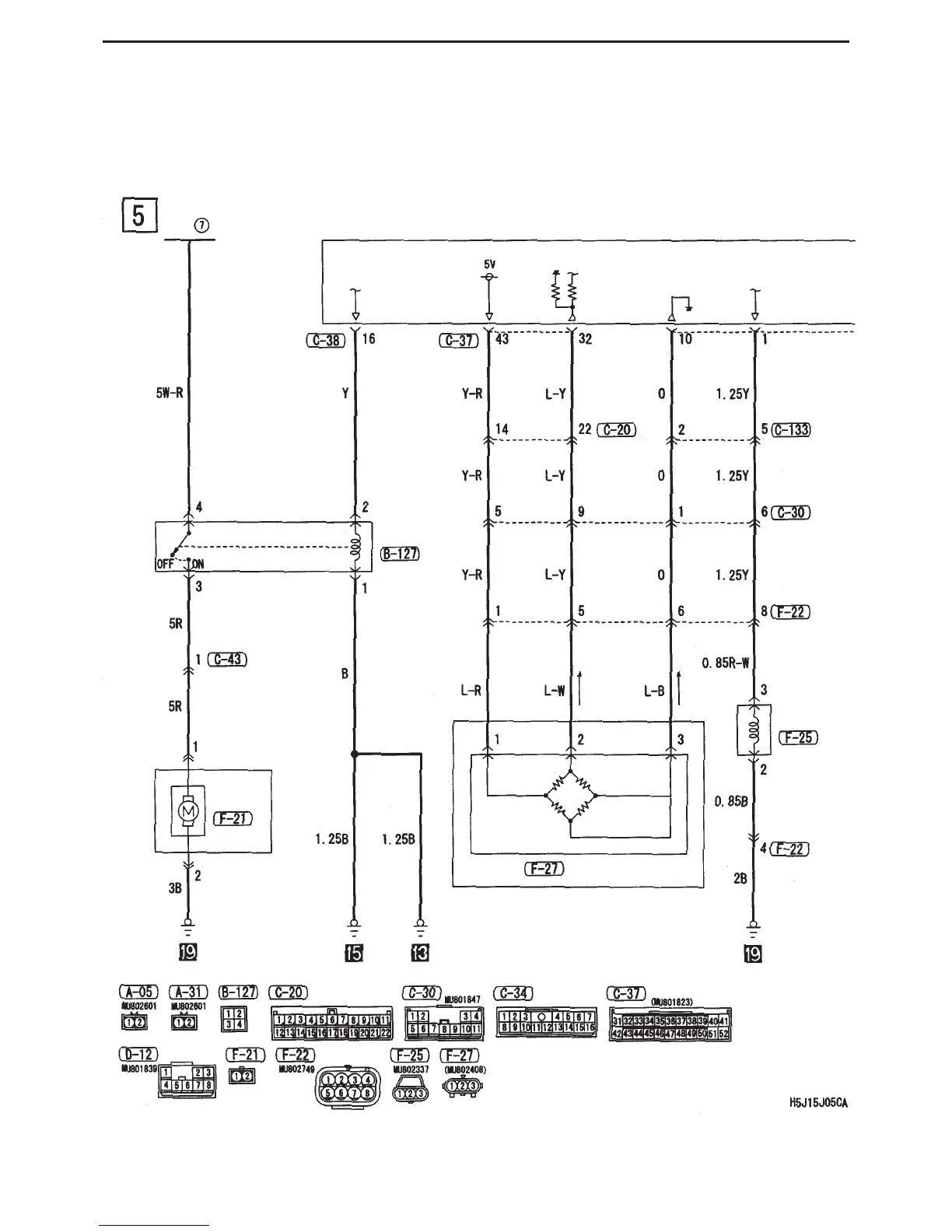

CIRCUIT DIAGRAMS - EQUIPMENT
ACD (vehicle without AYC) (cont’d)
Fusible
link
Electric
pump
Hydraulic
unit ASSY
Electric pump
relay
Pressure
sensor
Hydraulic unit ASSY
Proportional
valve (for
ACD)
