Mitsubishi Lancer Evolution IX 2005 - Page 167

3-164
CIRCUIT DIAGRAMS - EQUIPMENT

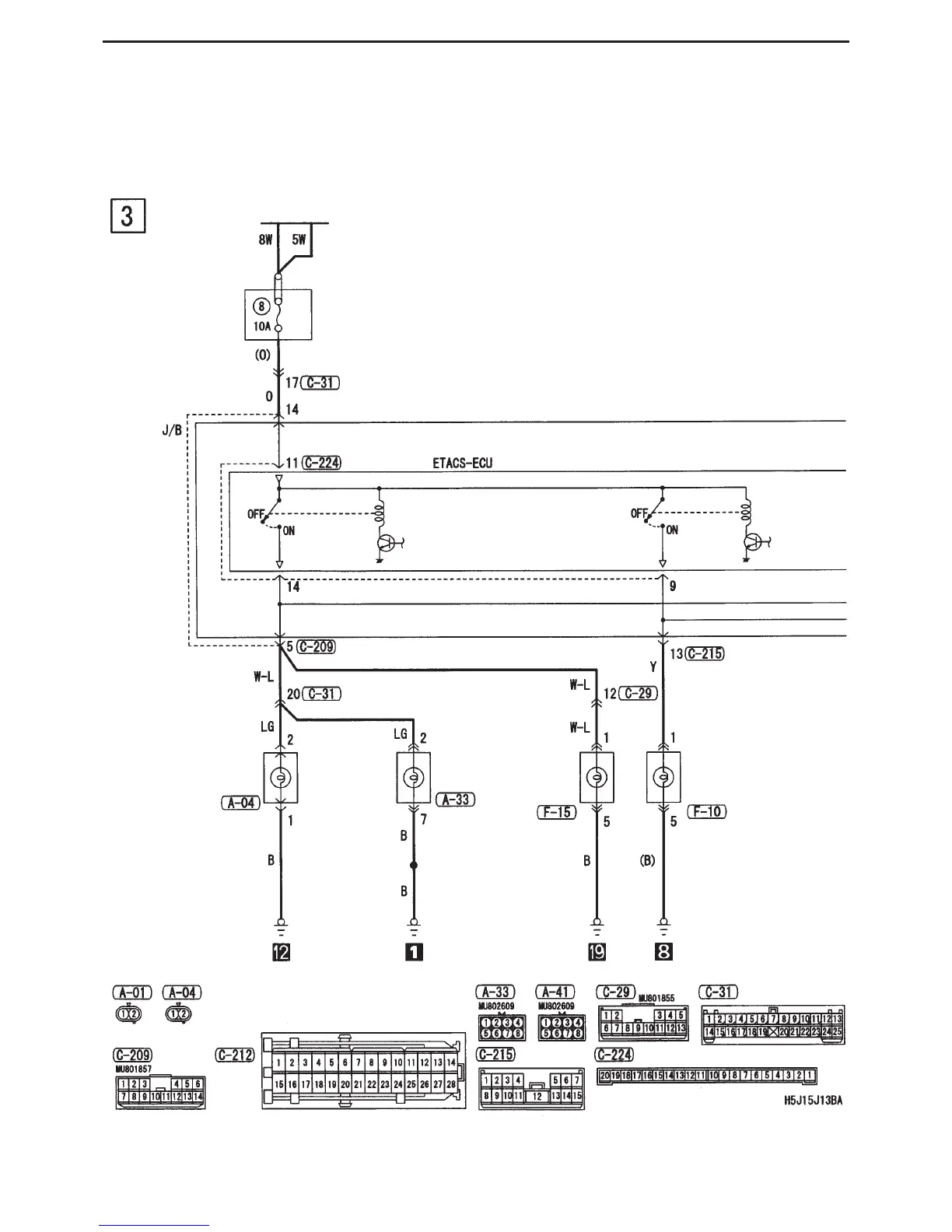

Security Alarm (cont’d)
Dedicated
fuse
Battery
Turn signal light
relay : LH
Turn signal light
relay : RH
(
(
)
)
Side turn signal
light (LH)
Headlight
ASSY
(turn : LH)
Rear
combination
light
(turn : LH)
Rear combination
light (turn : RH)
J/B side connector
