CIRCUIT DIAGRAMS - CENTRAL JUNCTION
3-14

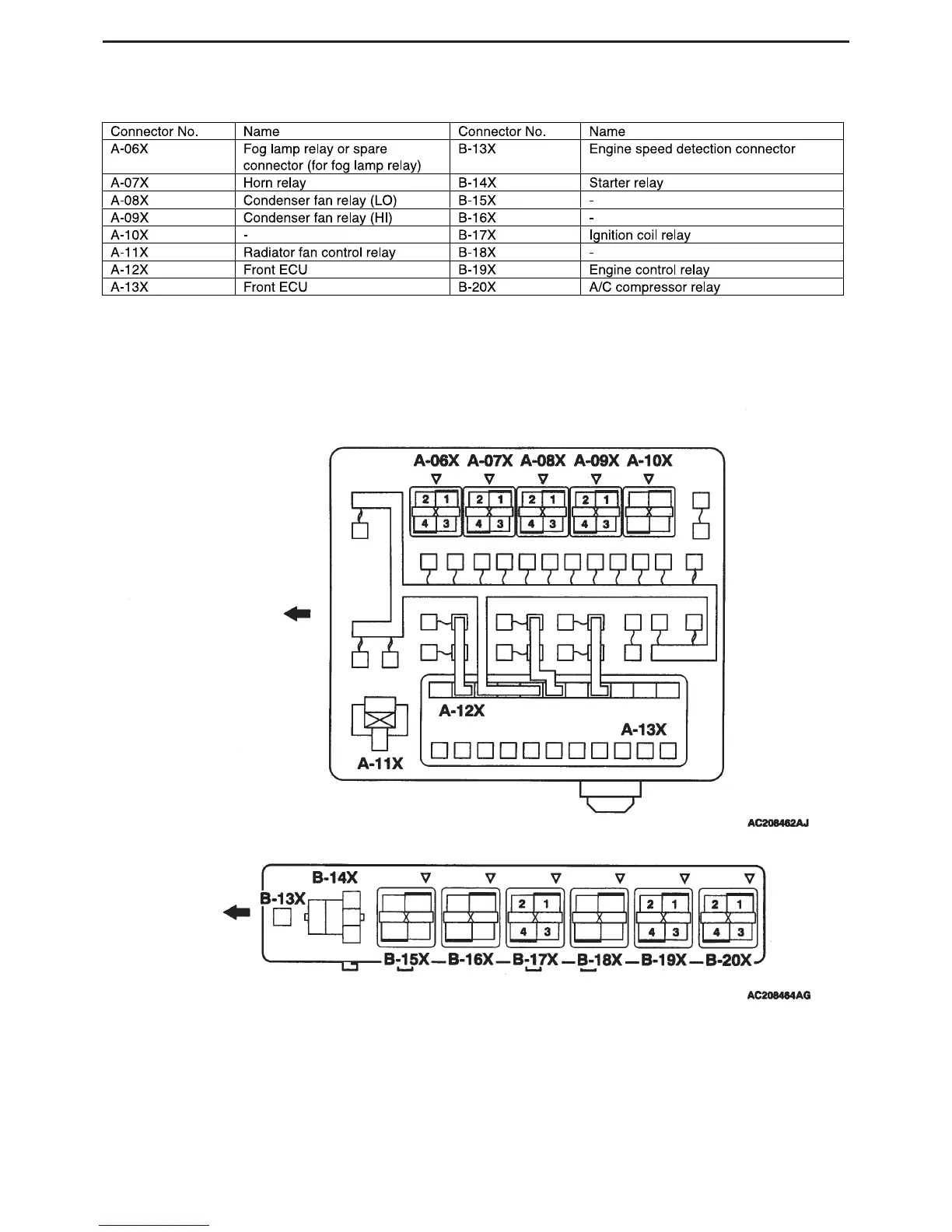

Central relays (relay box inside engine compartment)
Note : The triangle symbols engraved in the J/B and relay box indicate the position which coincide with the triangle marks
engraved on the relays.
Relay box inside engine compartment
Front of vehicle
