1-7

B-19X (4) Engine control relay

B-20X (4) A/C compressor relay

B-21 (10-black) Control panel / battery harness junction

B-25 (4-black) O

sensor

B-26 (2-black) Injector 4

B-27 (2-black) Injector 3

B-28 (2-black) Injector 2

B-29 (2-black) Injector 1

B-30 (2-grey) Waste gate solenoid valve 1

B-31 (8-black) Control harness / transmission harness

junction

B-32 (2-black) Waste gate solenoid valve 1

B-33 (3-black) Intake cam position sensor

B-34 (2-black) Air temperature sensor

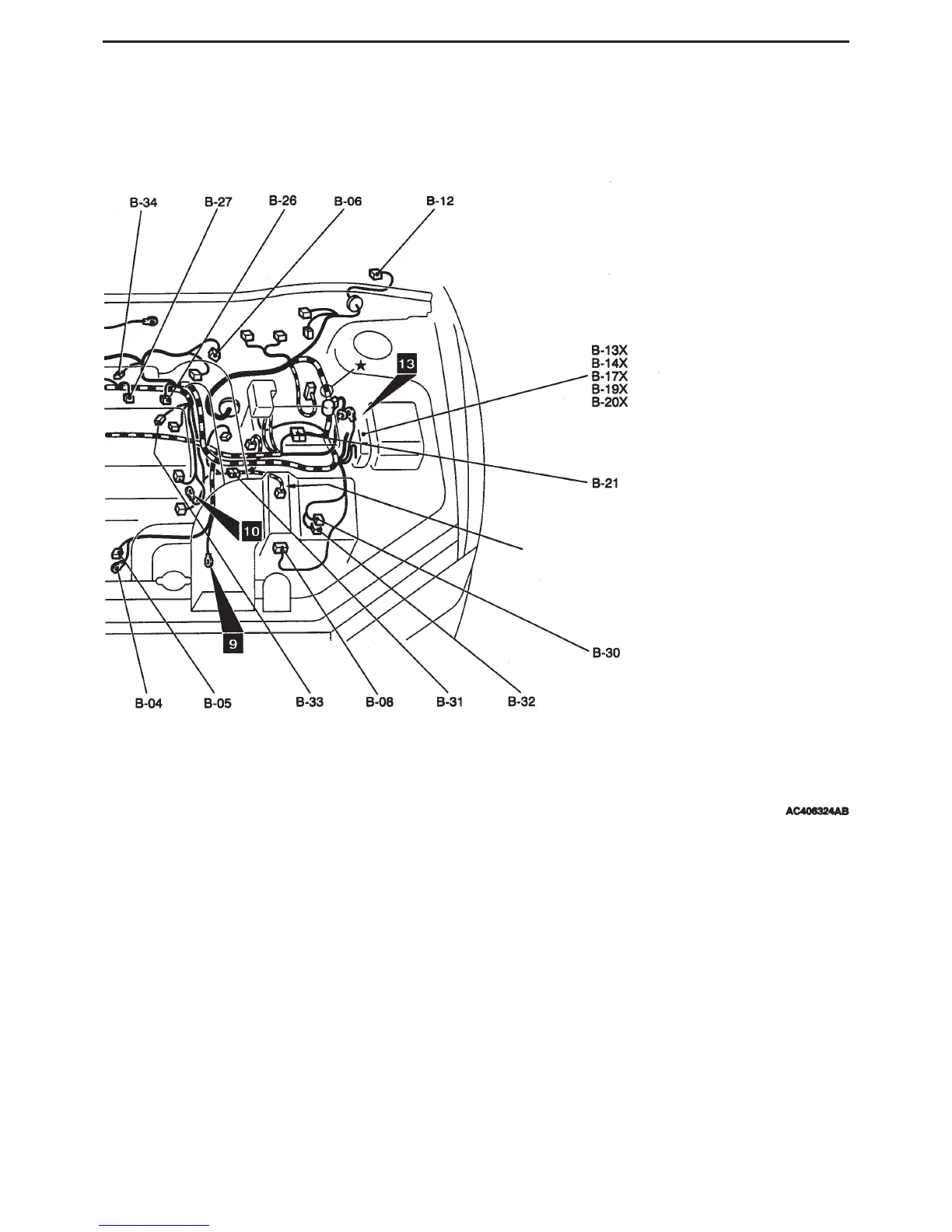

LAYOUT DIAGRAMS - ENGINE / TRANSMISSION

Ground cable
