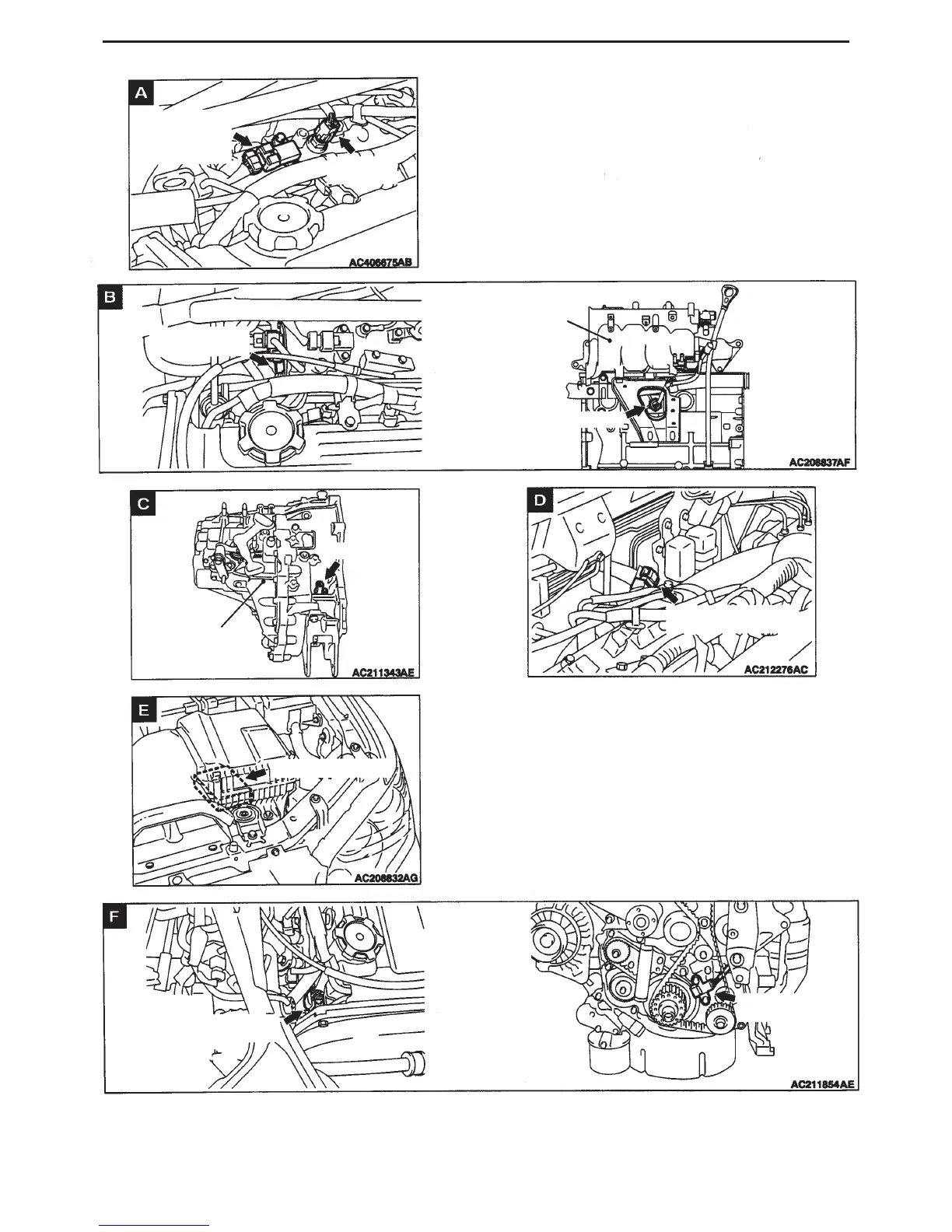

PART INSTALLATION POSITIONS - SENSORS
2-3
Manifold
absolute
pressure sensor
Knock sensor
connector
Transmission case
Throttle position
sensor
Inlet
manifold
Knock sensor
Vehicle speed
sensor
Crank angle sensor
connector
Crank angle
sensor
Air flow sensor
Air temp.
sensor
