Mitsubishi Lancer Evolution IX 2005 - Page 22

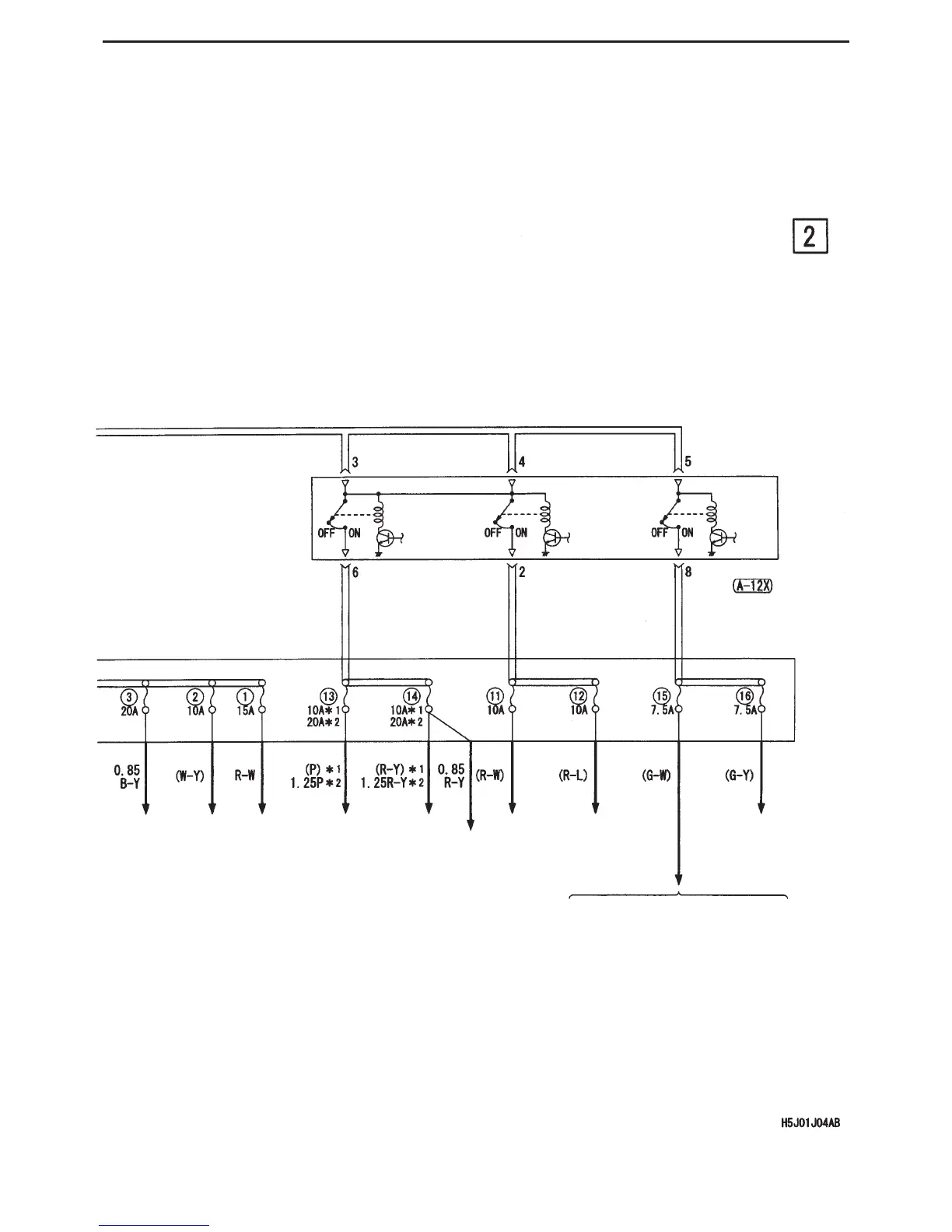

CIRCUIT DIAGRAMS - POWER DISTRIBUTION
3-19
Headlight
relay LO
Headlight
relay HI
Tail light
relay
•Engine
immobiliser
system
•Engine
control
• Ignition
• Security
alarm
•Horn
• Fog lamps
•Spare
connector
for fog
lamps
Headlights Headlights Headlights Headlights
Front ECU
Headlight
levelling
system
Tail lights, position
lights, licence
plate lights,
lighting monitor
warning buzzer
• ACD (vehicle
w/out AYC)
• ACD, AYC
• Intercooler water
spray
• Spare audio
connector
•Clock
•Cigarette lighter,
ashtray illumination
lights
• Needle meter
•Turn signal lights,
hazard lights
•Tail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer
•Demister (vehicle
w/out full auto A/C)
• Demister, door
mirror heating
elements (vehicle
with full auto A/C)
•Generic spare
connector
•Heater
• Fog lamps
• Full auto A/C
• Headlight levelling
system
•Manual A/C
Note :
*1 : Except discharge type headlights
*2 : Discharge type headlights
(
((
)
)
)
