Mitsubishi Lancer Evolution IX 2005 - Page 225

SUMMARY - OVERVIEW OF CIRCUIT DIAGRAMS
0-8
Item
N
o
C
o
n
necto
r / E
arth
S
ym
bo
l
D
etails

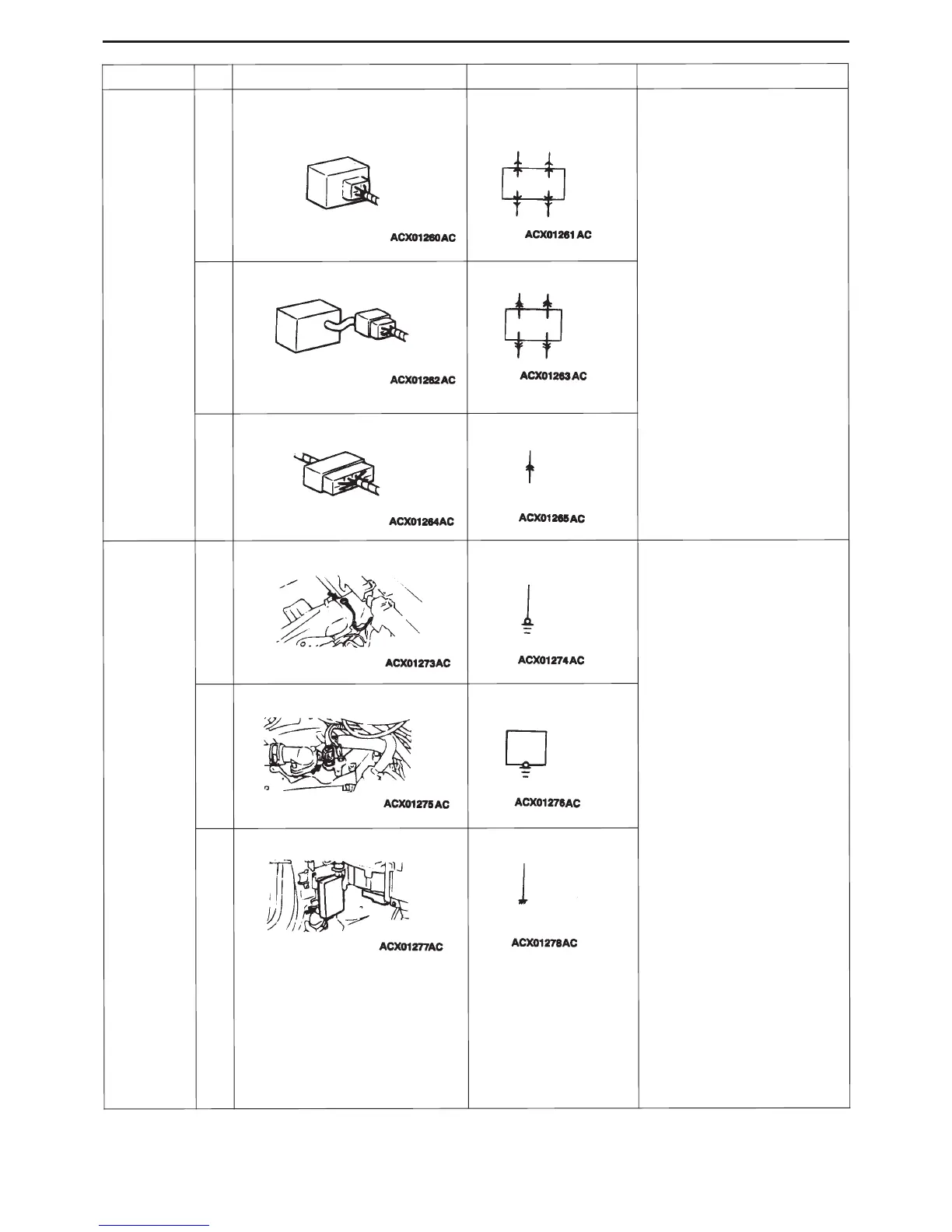

Connector
connections
4
A
connection between a device
and a harness side connector
may be achieved by direct
insertion into the device (direct
connection type) or by connecting
to a harness connector on the
device (harness connection type).
These types of connection are
shown differently in the diagrams.
5
6
Earths
7
The earth may be a vehicle body
earth, a device earth, or an earth
provided inside the control unit.
They are depicted differently in
the diagrams.
8
9
Harness connection type
Intermediate connector
Vehicle body earth
Device earth
Earth in control unit
Direct connection type
