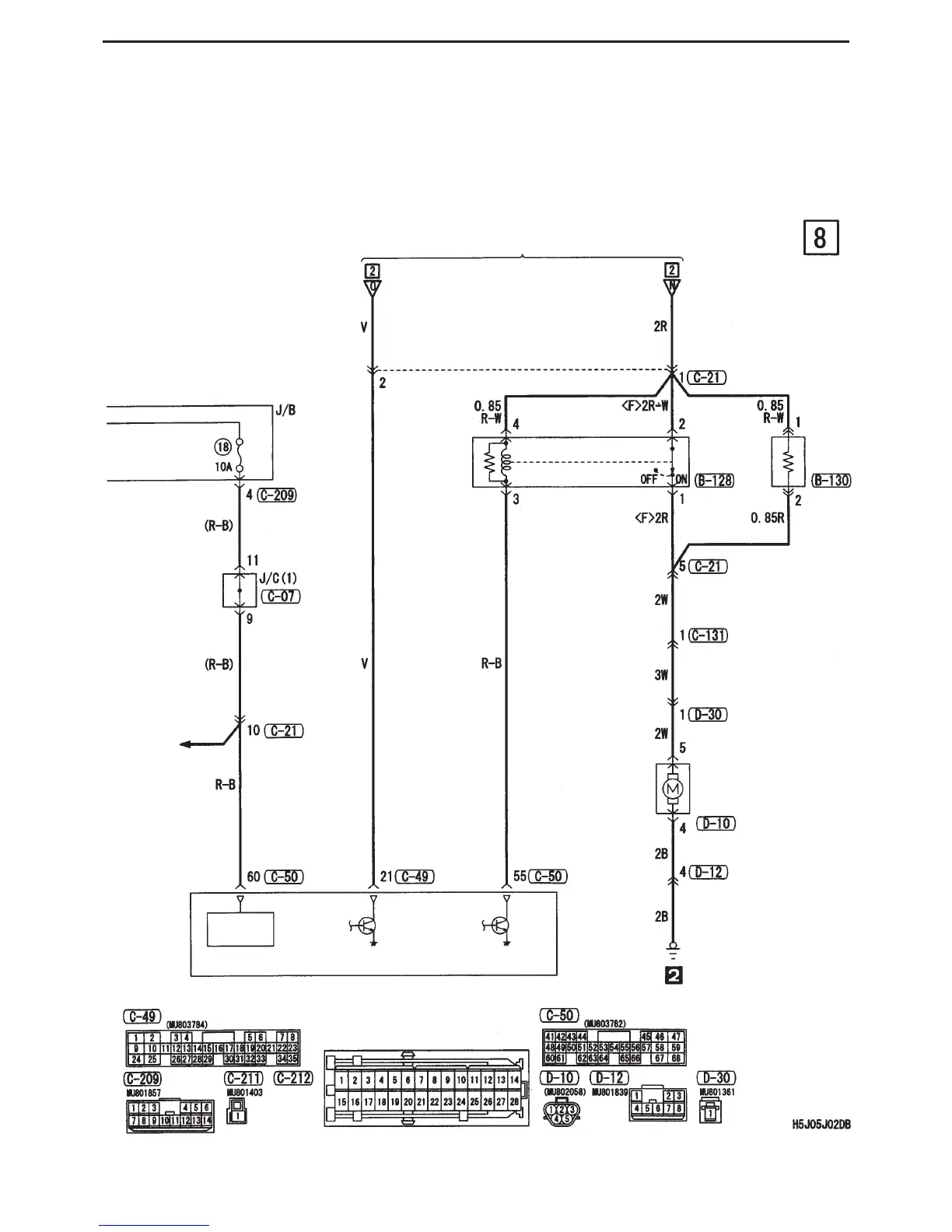

CIRCUIT DIAGRAMS - ENGINE CONTROL SYSTEM

3-35

J/B

(Fuel pump relay 2)

Fuel pump

relay 3

Fuel pump

and fuel

gauge unit

(main)

• ACD, AYC

•ACD (vehicle

w/out AYC)

Engine ECU

Back-up

power supply

•Windscreen washer /

wiper

• Needle meters

•Electric stowable remote

control door mirrors

•Generic spare connector

•Cabin lights, boot

compartment lights,

ignition key cylinder

illumination light, door

ajar indicator light

Note:
