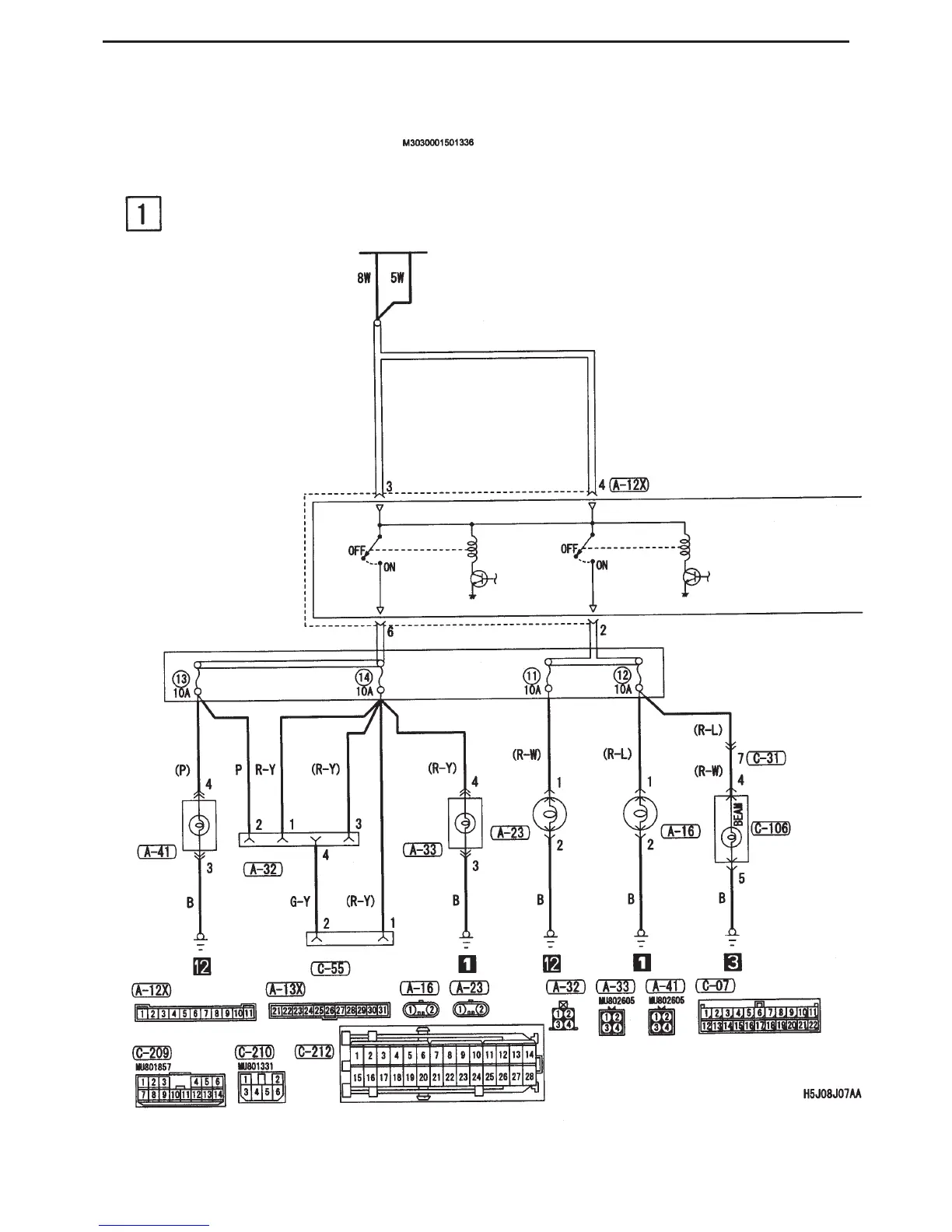

CIRCUIT DIAGRAMS - LIGHTING
3-38
LIGHTING
Headlight <excluding discharge type>
Battery
Front ECU
Dedicated
fuse
Headlight
ASSY
(LO : RH)
Headlight
ASSY
(LO : LH)
Headlight
(HI : RH)
Dummy connector
Headlight
(HI : LH)
Combination
meter
Headlight
relay : LO
Headlight
relay : HI
(
(
)
)
