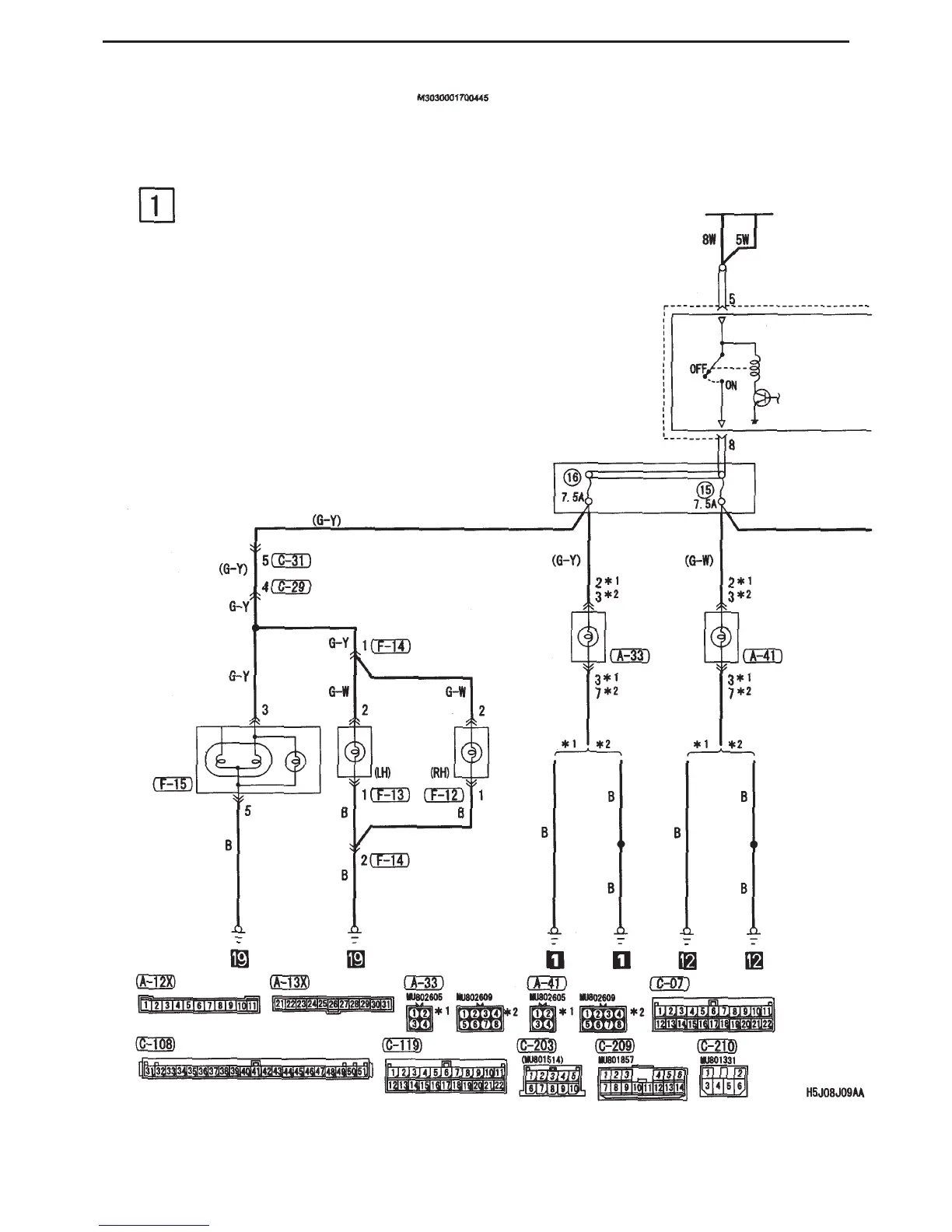

CIRCUIT DIAGRAMS - LIGHTING
3-46
Tail light, front side light, licence plate light, lighting monitor buzzer
Battery
Front ECU
Dedicated
fuse
Headlight
ASSY
(position : LH)
Headlight
ASSY
(position : RH)
Tail light
relay
()
Note :
*1: Except discharge type headlights
*2: Discharge type headlights
Rear
combination light
(Tail : LH)
Licence
plate
lights
