3-70

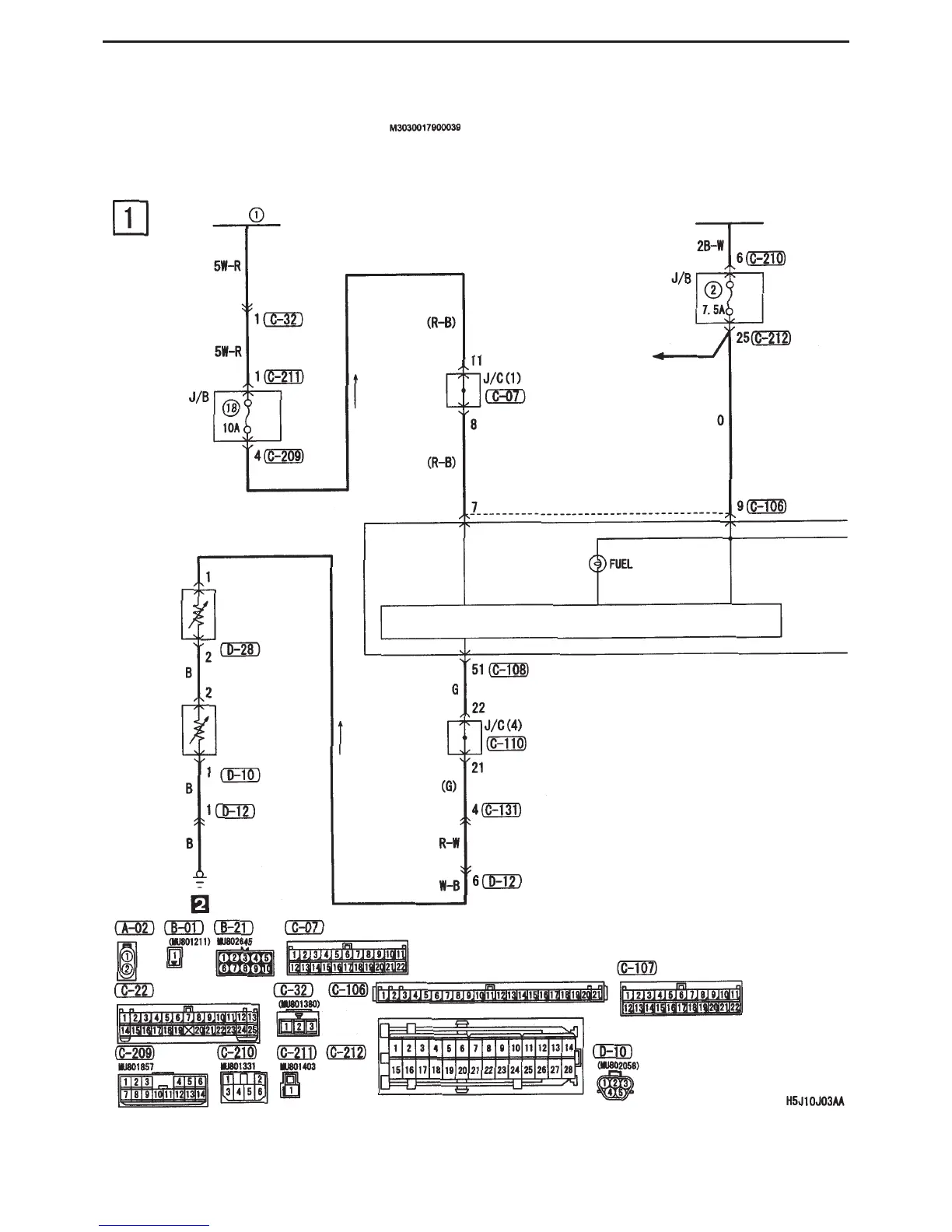

CIRCUIT DIAGRAMS - METERS

Fuel warning light, oil pressure warning light, brake warning light, seatbelt warning light

Ignition switch (IG1)

Fusible link

•Windscreen washer /

wiper

• Engine control

• Needle meters

•Turn signal lights,

hazard lights

•Tail lights, position

lights, licence plate

lights, lighting monitor

warning buzzer

•Electric stowable

remote control door

mirrors

• Fog lamps

• Headlights

•Rear washer / wiper

•Cabin lights, boot

compartment lights,

ignition key cylinder

illumination light, door

ajar indicator light

Fuel gauge unit

(sub)

Fuel pump & fuel

gauge unit (main)

Control circuit
