3-88

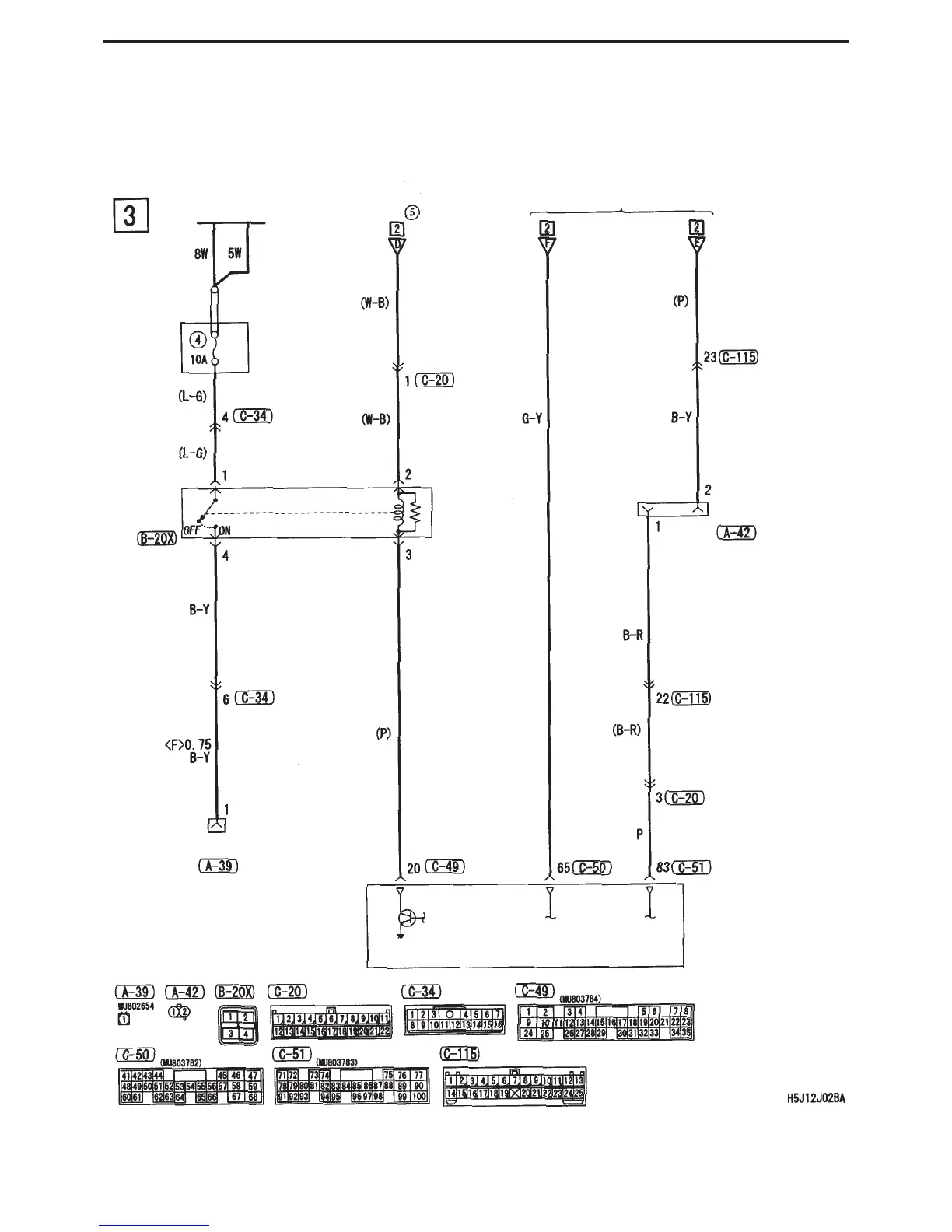

CIRCUIT DIAGRAMS - TEMPERATURE CONTROL
Heater (cont’d)
Battery
Heater control unit
Dedicated
fuse
A/C
compressor
relay
Dummy
connector
Dummy
connector
Engine ECU
Generic
fuse
J/B
(
)
