3-94

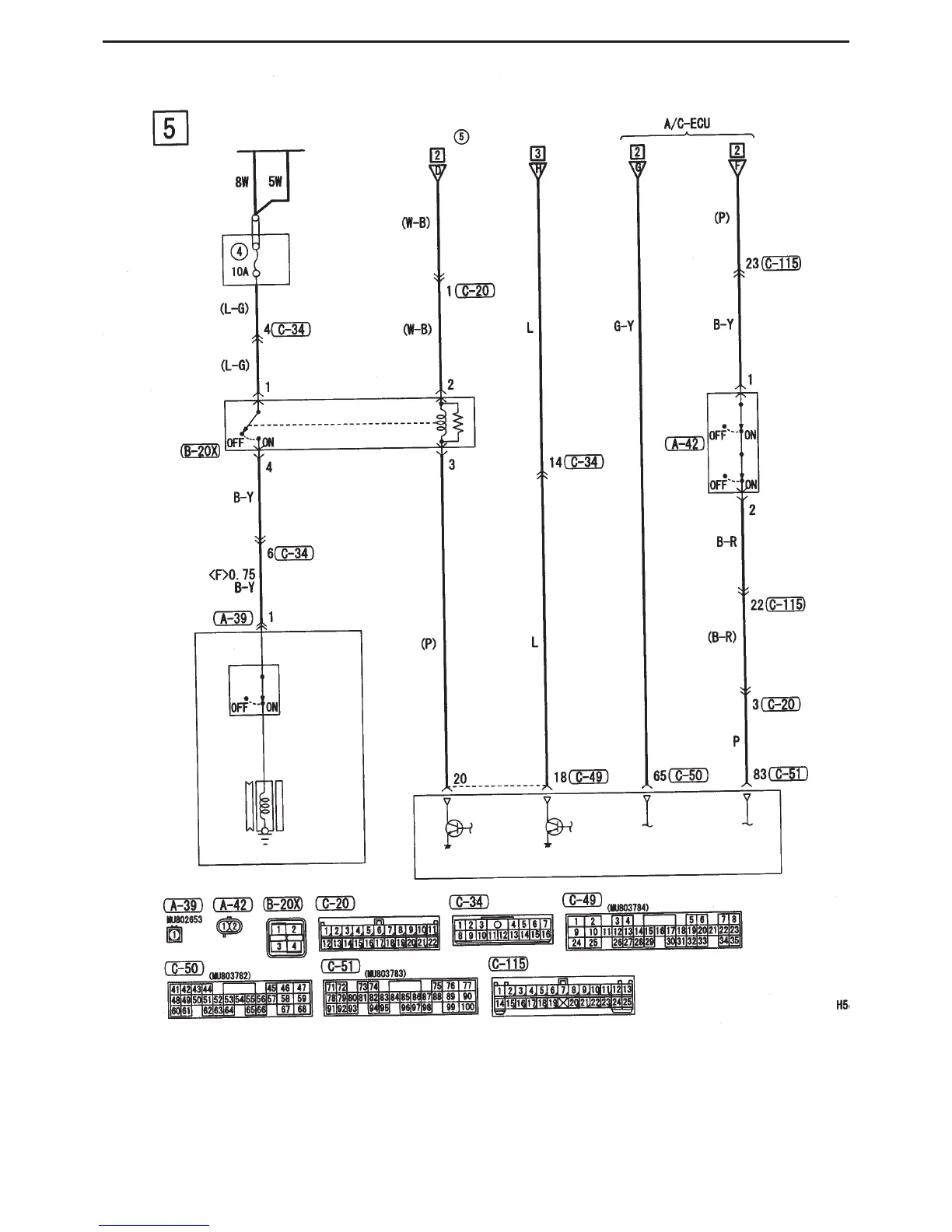

CIRCUIT DIAGRAMS - TEMPERATURE CONTROL
Manual Air-Conditioning (cont’d)
Battery
Radiator fan controller
Dedicated
fuse
A/C
compressor
relay
Dual
pressure
switch
Low pressure
ON ! OFF : 196 kPa
OFF ! ON : 221 kPa
High pressure
ON ! OFF: 3138 kPa
OFF ! ON : 2550 kPa
Engine ECU
Magnetic
clutch
Coolant
temperature
switch
A/C compressor
J/C (2)
Generic fuse
(
)
