M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
136
IB-1501269-J

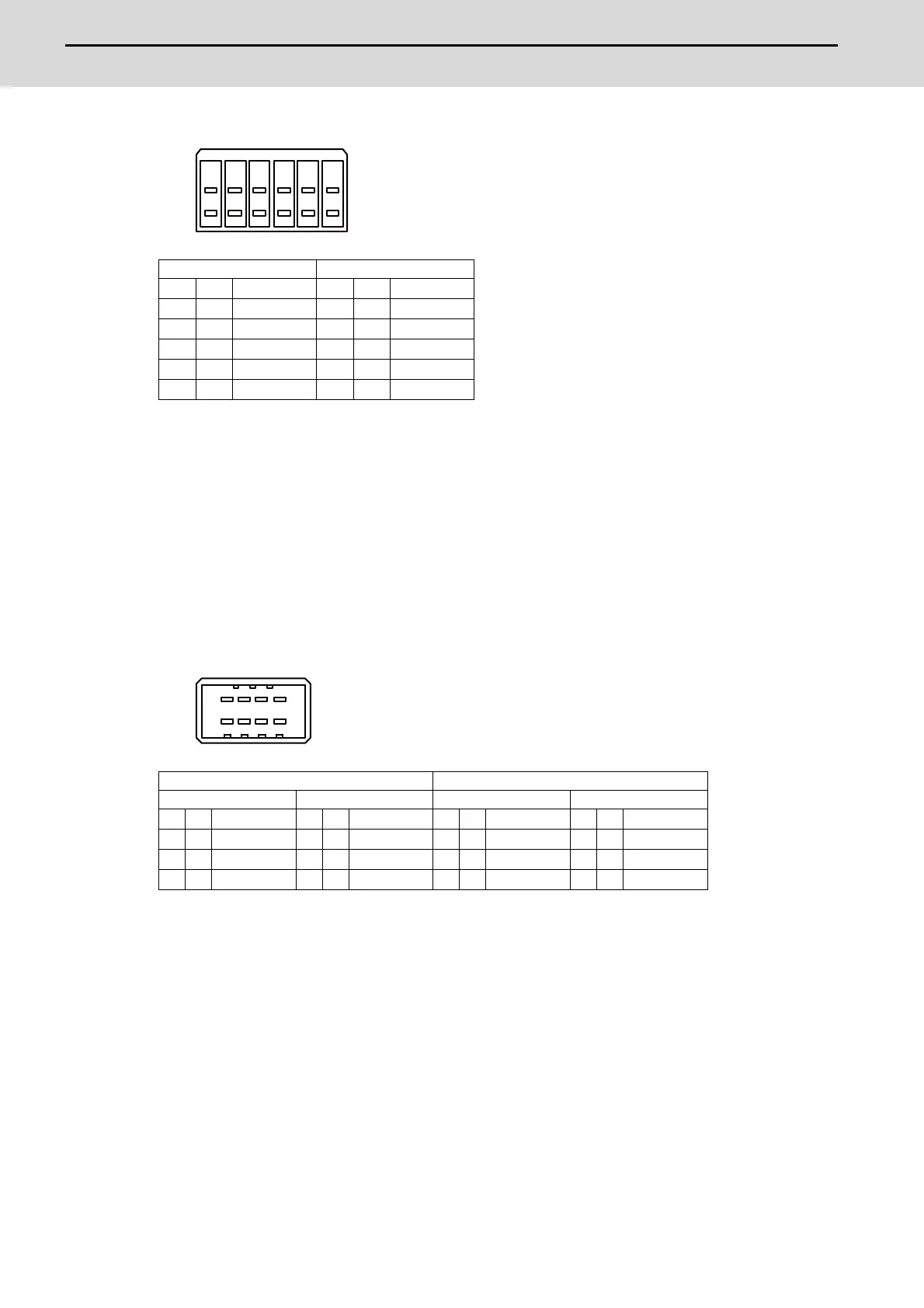

(10) SDI2 (Safety DI input)
<Cable side connector type>
Connector : 175362-1 (2-pole type)
Connector : 175363-1 (4-pole type)
Connector : 1318095-1 (6-pole type)
Contact : 175218-2
Recommended manufacturer : Tyco Electronics
(a) Outline of digital signal input circuit
Refer to "(9) SDI1 (Safety DI input)".
(11) SDO1 (Safety relay output)
(12) SDO2 (Safety relay output)
<Cable side connector type>
Connector : 178289-4
Contact : 175218-2
Recommended manufacturer : Tyco Electronics
BA
6 COM+ 6 I SX07B
5 COM+ 5 I SX07A
4 COM+ 4 I SX06B
3 COM+ 3 I SX06A
2 COM+ 2 I SX05B
1 COM+ 1 I SX05A
SDO1 SDO2
BABA
4 SYR03A 4 SYR03A 4 SYR03B 4 SYR03B
3 SYR02A 3 SYR02A 3 SYR02B 3 SYR02B
2 SYR01A 2 SYR01A 2 SYR01B 2 SYR01B
1 SYR00A 1 SYR00A 1 SYR00B 1 SYR00B
A1
B1
A6
B6
A1
B1
A4
B4
