M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
141
IB-1501269-J
(17) FG (FG terminal)
(18) FG (FG terminal (M4 screw))

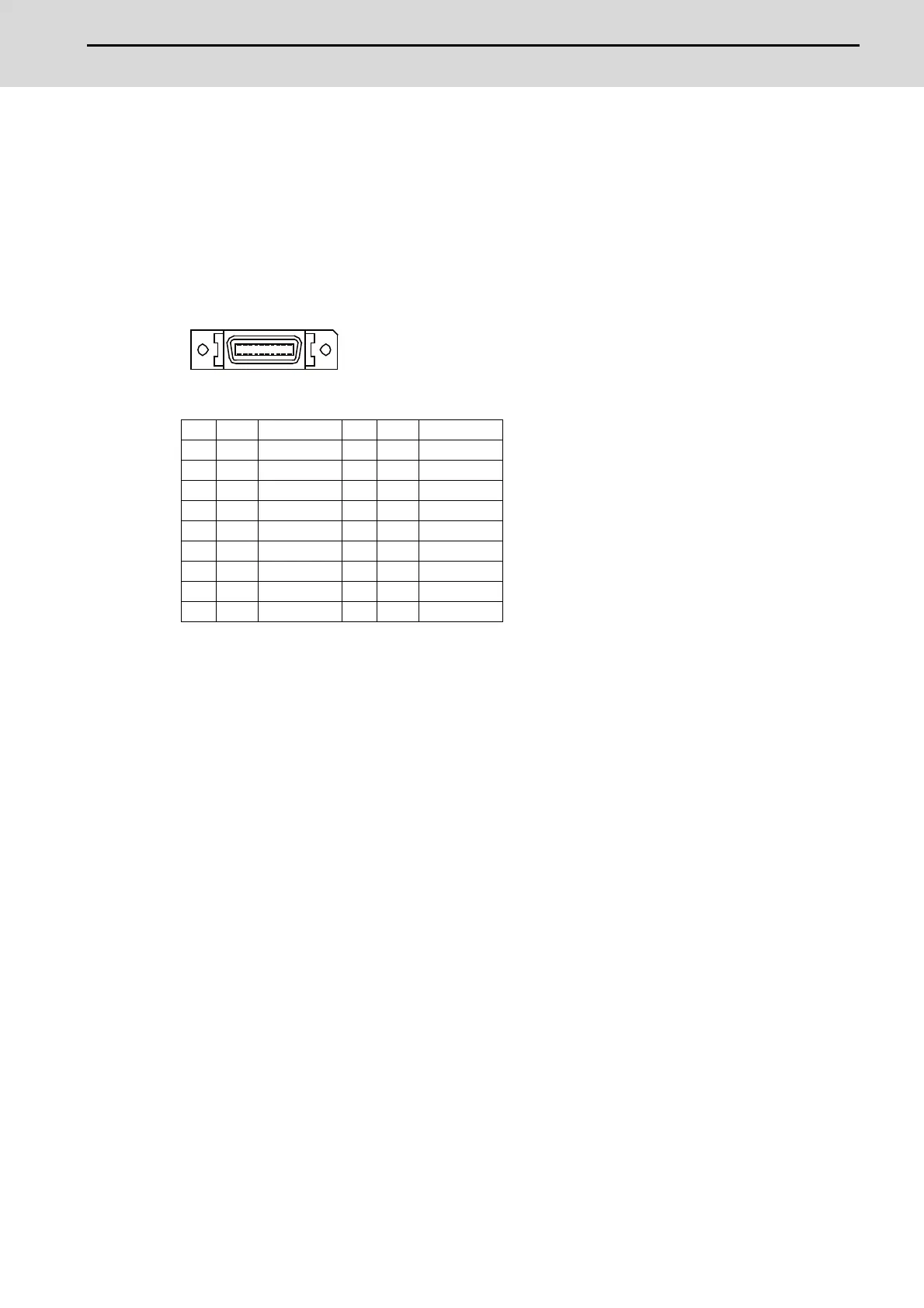

(19) AIO1 (Analog input, Analog output)
Analog input and analog output can be connected to this connector.
- Connect connector case with FG pattern.
<Cable side connector type>
Plug : 10120-3000PE
Shell : 10320-52F0-008
Recommended manufacturer : 3M
(Note) When using the jackscrew M2.6-type 10320-52A0-008 for the shell, do not fasten the screws
too tightly otherwise the connector and the PCB may be damaged.
(Manufacturer recommended tightening torque: 0.20±0.05Nꞏm)
1 0V 11 0V
2 I AI 0 12 I AI 1
3 I AI 2 13 I AI 3
4 NC 14 NC
5 0V 15 0V
6 NC 16 NC
7 OAO 17 INC
8 NC 18 NC
9 0V 19 NC
10 NC 20 NC
10 1
20 11
