M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
142
IB-1501269-J

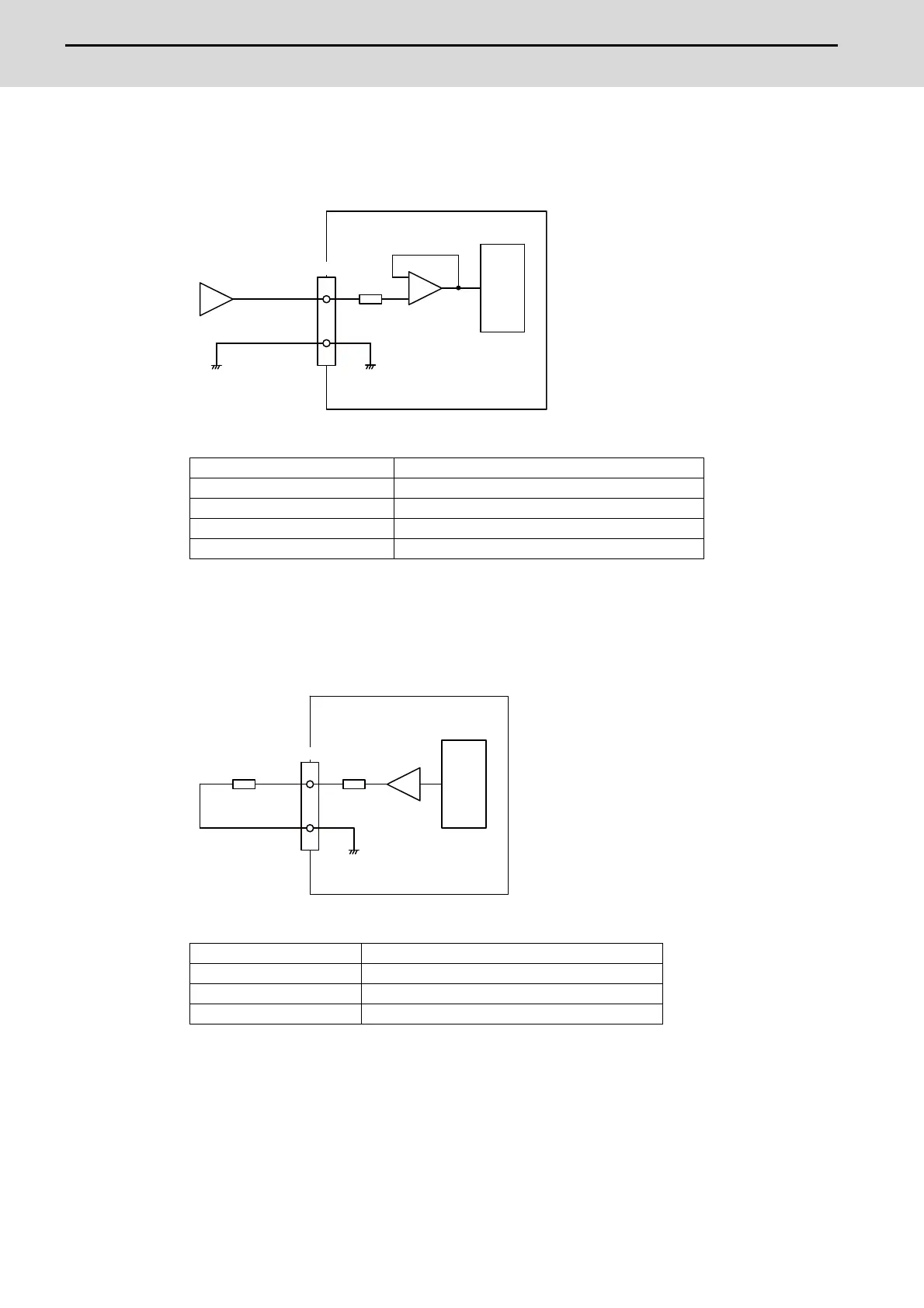

(a) Outline of analog signal input circuit
Input circuit
Input conditions
(Note 1) This indicates the input voltage which must not exceeded even in an instant.
(Note 2) Except when the accuracy is affected by the noise.
(b) Outline of analog signal output circuit
Output circuit
Output conditions
Analog input voltage -10 to 10V
Max. input rating (Note 1) ±15V
Resolution |-10 to +10V| / 4095 = 4.88mV
Precision Within ±25mV (Note 2)
Tolerance ±0.35V
Analog output voltage -10 to 10V (±5%)
Resolution 10V / 4095 = 2.44mV
Load conditions External load resistance value 10kΩ or more
Output resistance value 500Ω
DAC
AIO1
AO
0V
500Ω
Load
