(20) THERMISTOR (Thermistor input)
Thermistor can be connected to this connector.
<Cable side connector type>
Connector : 37104-2165-000FL
Recommended manufacturer : 3M

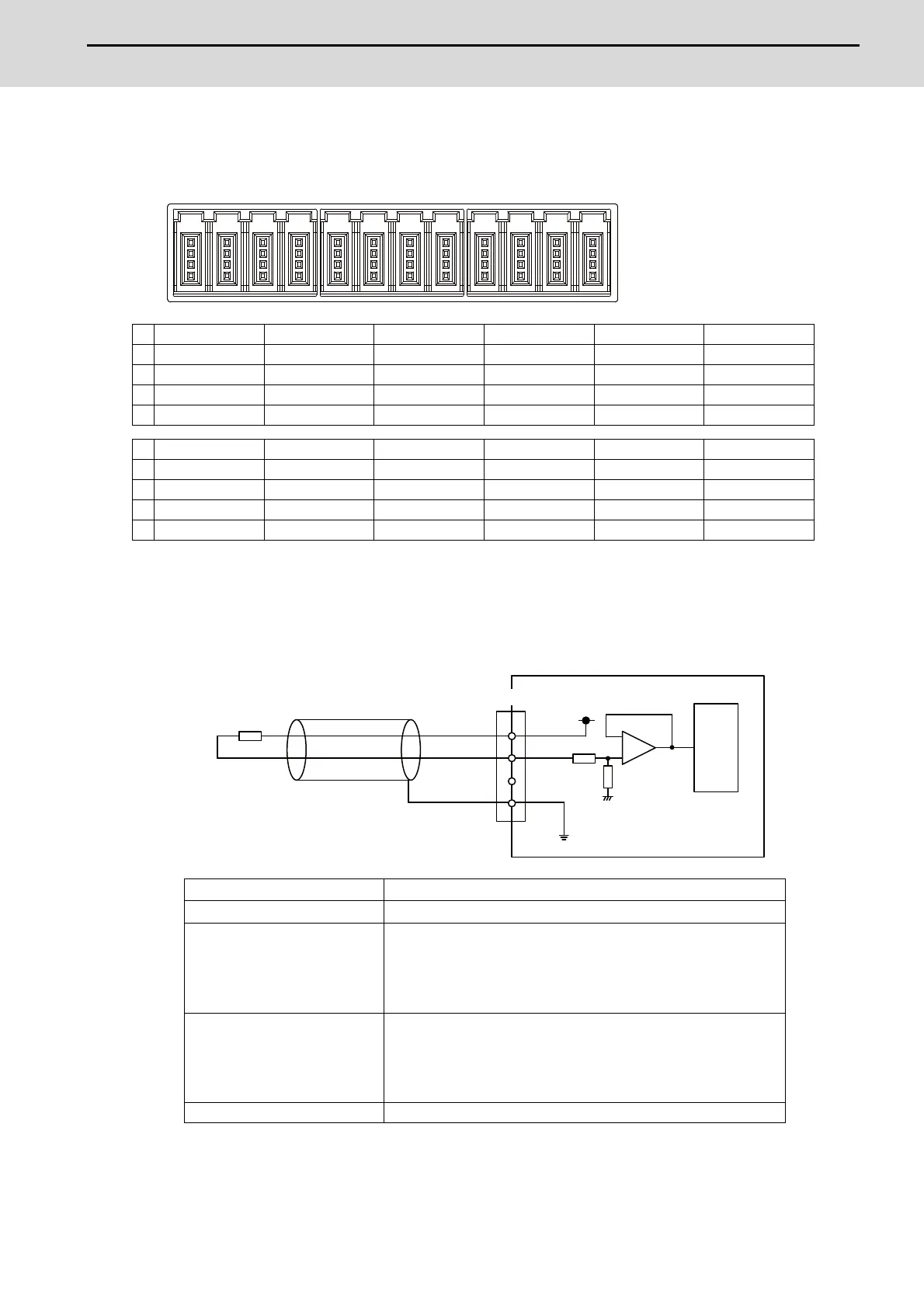

(a) Outline of the thermistor input circuit
(Note 1) This indicates the maximum measurable temperature change amount per unit time.
When the temperature change exceeds the described value, it cannot be measured correctly.
(Note 2) Do not connect any thermistor other than PT3C-51F-M2 made by SHIBAURA ELECTRONICS
Co., Ltd.
CH1 CH2 CH3 CH4 CH5 CH6
1FGFGFGFGFGFG
2NCNCNCNCNCNC
3 Thermistor CH1 Thermistor CH2 Thermistor CH3 Thermistor CH4 Thermistor CH5 Thermistor CH6
4 Thermistor CH1 Thermistor CH2 Thermistor CH3 Thermistor CH4 Thermistor CH5 Thermistor CH6
CH7 CH8 CH9 CH10 CH11 CH12
1FGFGFGFGFGFG
2NCNCNCNCNCNC
3 Thermistor CH7 Thermistor CH8 Thermistor CH9 Thermistor CH10 Thermistor CH11 Thermistor CH12
4 Thermistor CH7 Thermistor CH8 Thermistor CH9 Thermistor CH10 Thermistor CH11 Thermistor CH12
Measurement temperature
-10.0 to +150.0 ℃
Resolution
0.1 ℃
Accuracy
±1.5 ℃ (Measurement temperature -10 to +10 ℃ )
±1.0 ℃ (Measurement temperature +10 to +70 ℃ )
±1.5 ℃ (Measurement temperature +70 to +110 ℃ )
±2.0 ℃ (Measurement temperature +110 to +130 ℃ )
±2.5 ℃ (Measurement temperature +130 to +150 ℃ )
Thermal responsiveness (Note 1)
This varies depending on the setting of the parameter (#1334).
±10 ℃ /s (When the setting of #1334 is -1)
±20 ℃ /s (When the setting of #1334 is 0)
±45 ℃ /s (When the setting of #1334 is 1)
±90 ℃ /s (When the setting of #1334 is 2)
Disconnection detection function Provided
CH1 CH12CH11CH10CH9CH8CH7CH6CH5CH4CH3CH2
1
2
3
4
ADC
3.3V
FG
THERMISTOR
Thermistor
Shield
Thermistor
Thermistor
