M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
155
IB-1501269-J

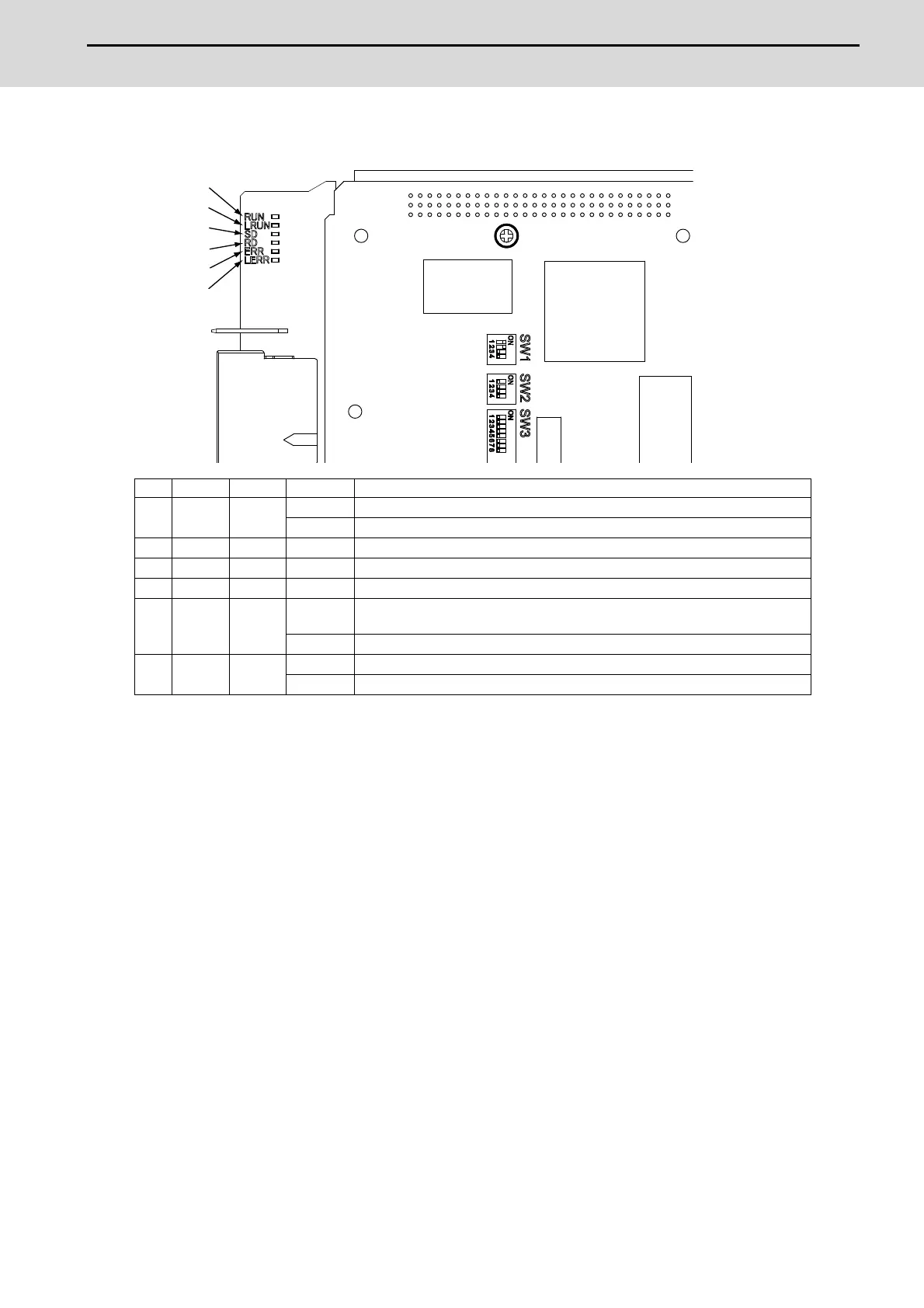

[LED]
(Note 1) All LED (RUN, LRUN, SD, RD, ERR, LERR) are lit during resetting of the CC-Link module.
No. Name Color Status Details
(1) RUN Green
Lit CC-Link module in the normal state
Not lit Watchdog timer error
(2) LRUN Green Lit Data link in process of execution
(3) SD Green Lit During data transmission
(4) RD Green Lit During data reception
(5) ERR Red
Lit
Switch setting error (LERR is also lit), overlapping of master, parameter error,
communication error
Flashing Other station data link error (when it is master station)
(6) LERR Red
Lit Data link communication error
Flashing Station and mode change during operation
(1)
(2)
(5)
(4)
(3)
(6)
