Mitsubishi M800S series

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
177
IB-1501269-J

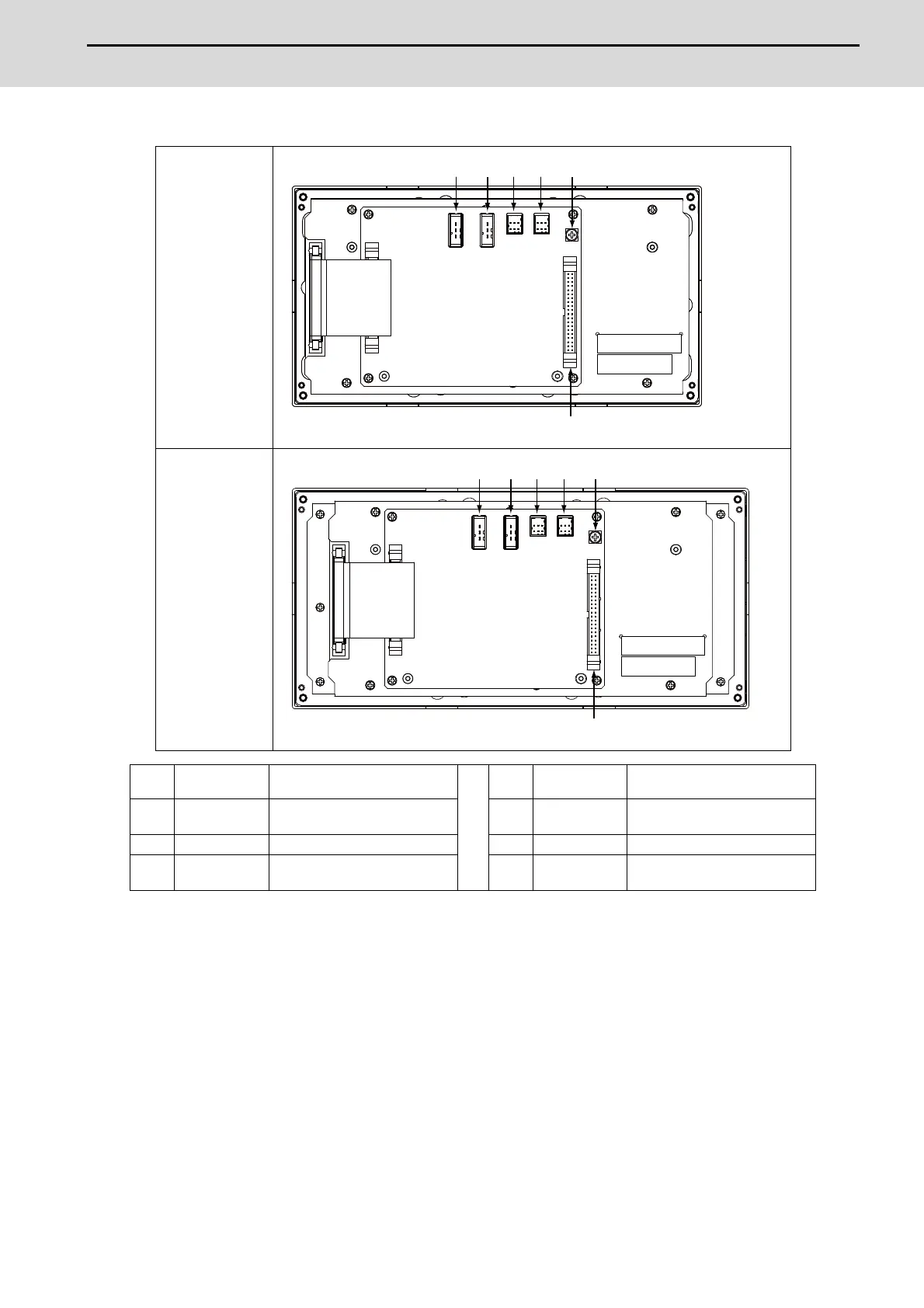

[Connector]
FCU8-KB921 /
FCU8-KB922 /
FCU8-KB925
FCU8-KB923 /
FCU8-KB924 /
FCU8-KB926
No.
Connector
name
Function No.
Connector
name
Function
(1) DCIN 24VDC input (4) RIOOUT
Remote I/O 2.0 communication
(relay)
(2) DCOUT 24VDC output (5) FG FG terminal
(3) RIOIN
Remote I/O 2.0 communication
(input)
(6) SUBP Sub panel connection
(5)(1)
(6)
(2) (3) (4)
(5)(1)
(6)
(2) (3) (4)
