M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
178
IB-1501269-J

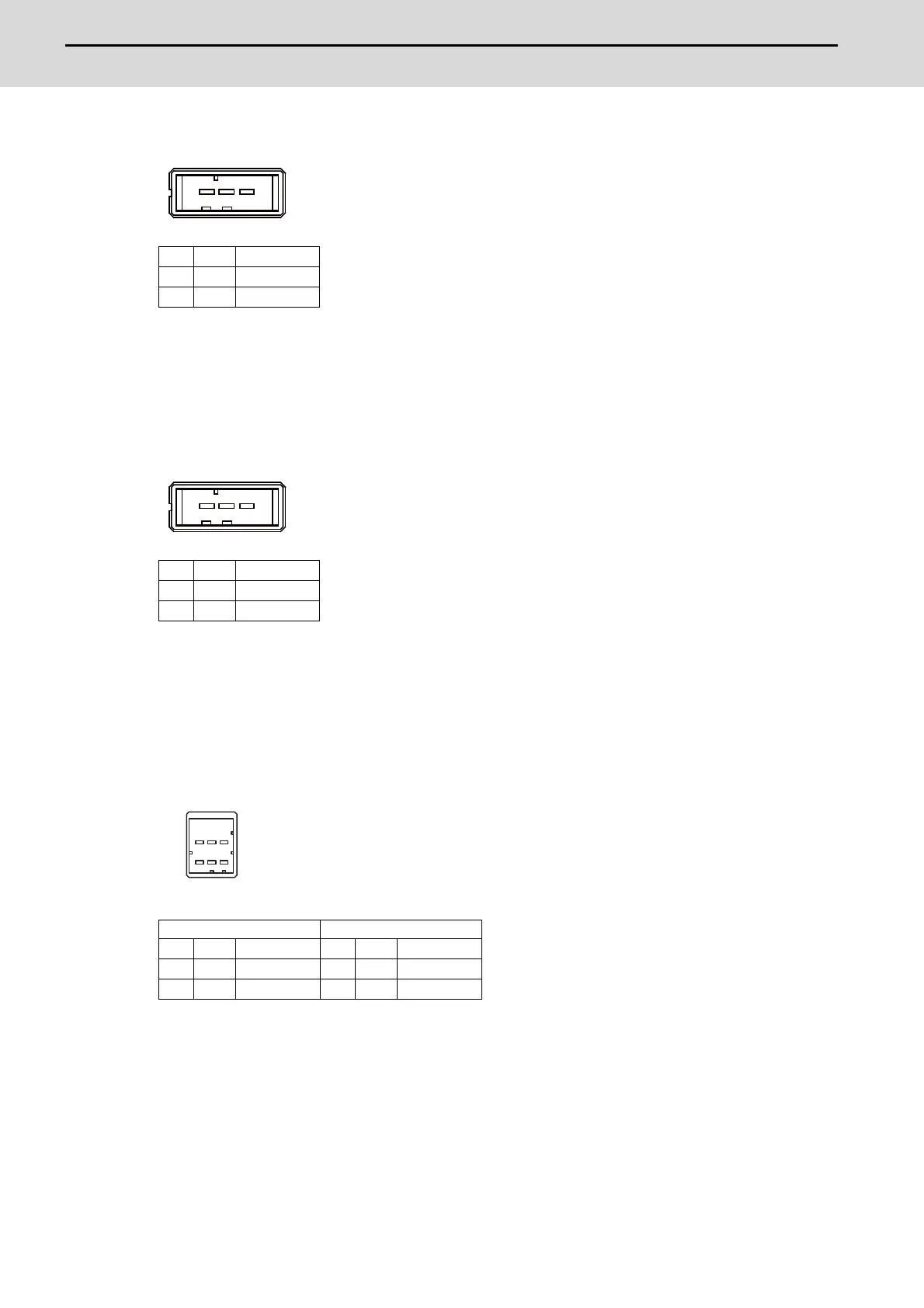

(1) DCIN (24VDC input)
<Cable side connector type>
Connector : 2-178288-3
Contact : 1-175218-5
Recommended manufacturer : Tyco Electronics
(2) DCOUT (24VDC output)
<Cable side connector type>
Connector : 2-178288-3
Contact : 1-175218-5
Recommended manufacturer : Tyco Electronics
(3) RIOIN (Remote I/O 2.0 communication (input))
(4) RIOOUT (Remote I/O 2.0 communication (relay))
Up to 64 remote I/O stations can be connected.
<Cable side connector type>
Connector : 1-1318119-3
Contact : 1318107-1
Recommended manufacturer : Tyco Electronics
(5) FG (FG terminal)
1 I+24V
2 0V
3 FG
1 O+24V
2 0V
3 FG
AB
1 I/O TXRXD 1 I/O TXRXD*
2 NC 2 0V
3 FG 3 NC
13
13
1 2 3
B
A
X
