M800S/M80/E80 Series Connection and Setup Manual
10 Connection of Remote I/O Unit
313
IB-1501269-J
Maximum cable length is 50m. Line resistance is 10Ω or less, and line resistance difference is 0.1Ω or less (see below).
AI : DFMC1,5/12-ST-3,5-LR (Phoenix Contact)
<Applicable cable>
Solid wire
: 0.2-1.5mm
2
Twisted wire
: 0.2-1.5mm
2
Bar terminal with insulation collar
: 0.25-0.75mm
2
Bar terminal without insulation collar
: 0.25-1.5mm
2
Stripping line length : 10mm
<Wire mounting tool (driver) type>
Type : SZS 0,4X2,5 VDE
Recommended manufacturer: Phoenix Contact
<Bar terminal type>
Type : AI series
Recommended manufacturer: Phoenix Contact
<Crimp tool type>
Type : CRIMPFOX 6
Recommended manufacturer: Phoenix Contact
<Recommended cable with shield material>
Type : HK-SB/20276XL LF
Recommended manufacturer: Taiyo Cabletec
(Select the wire diameter from AI connector specification.)

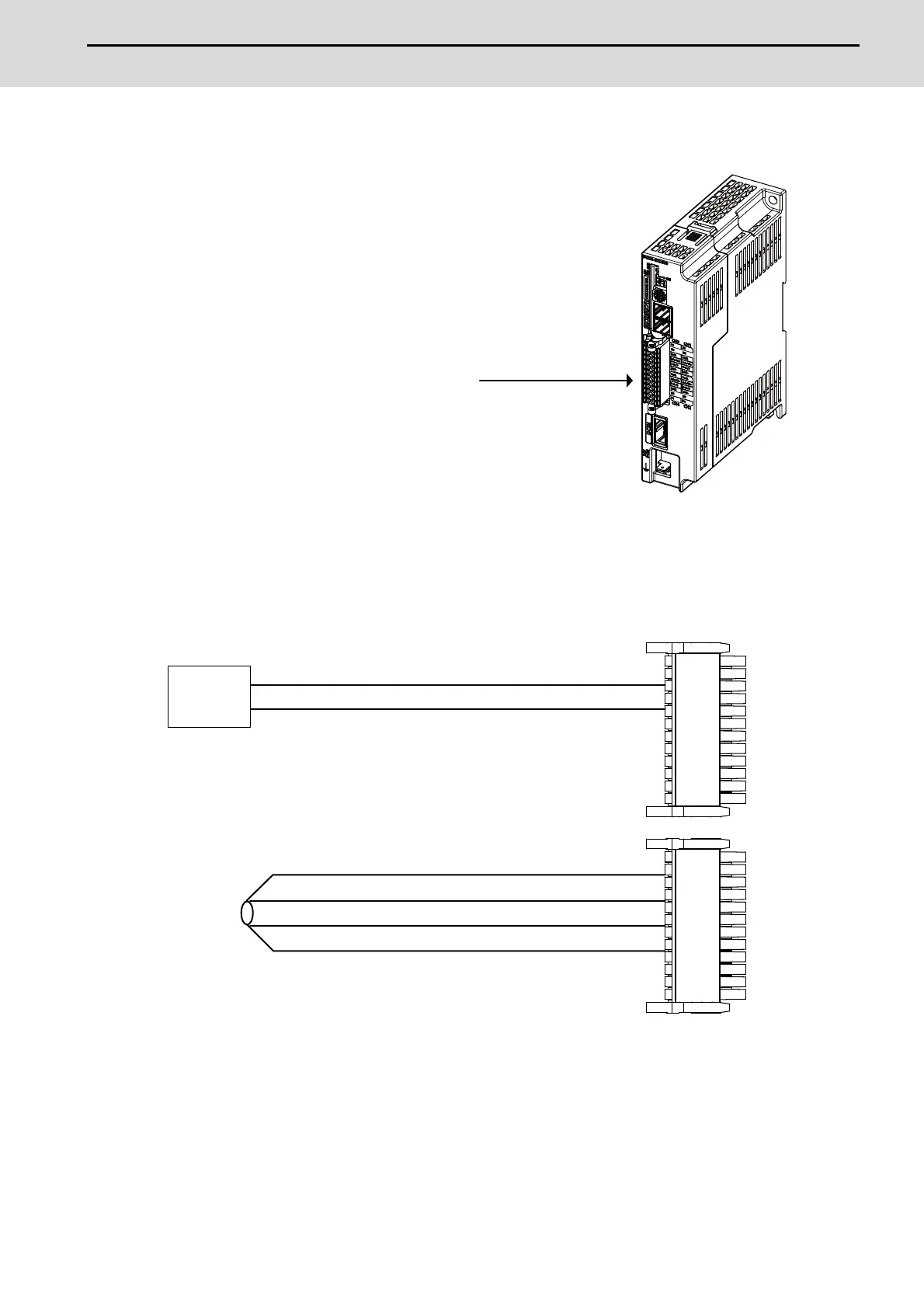

Resistance
temperature
detector
Conducting wire A
Conducting wire B
- Line resistance of conducting wire A, B C and D is 10Ω or less.
- Each line resistance difference between conducting wire A, B C and D is
0.1Ω or less
Conducting wire A
Conducting wire B
- Line resistance of conducting wire A and B is 10Ω or less.
- Line resistance difference between conducting wire A and B is 0.1Ω or less
Connector for analog input
Machine
side
Conducting wire C
Conducting wire D
To Next Page
