Mitsubishi M800S series User Manual

M800S/M80/E80 Series Connection and Setup Manual
10 Connection of Remote I/O Unit
314
IB-1501269-J

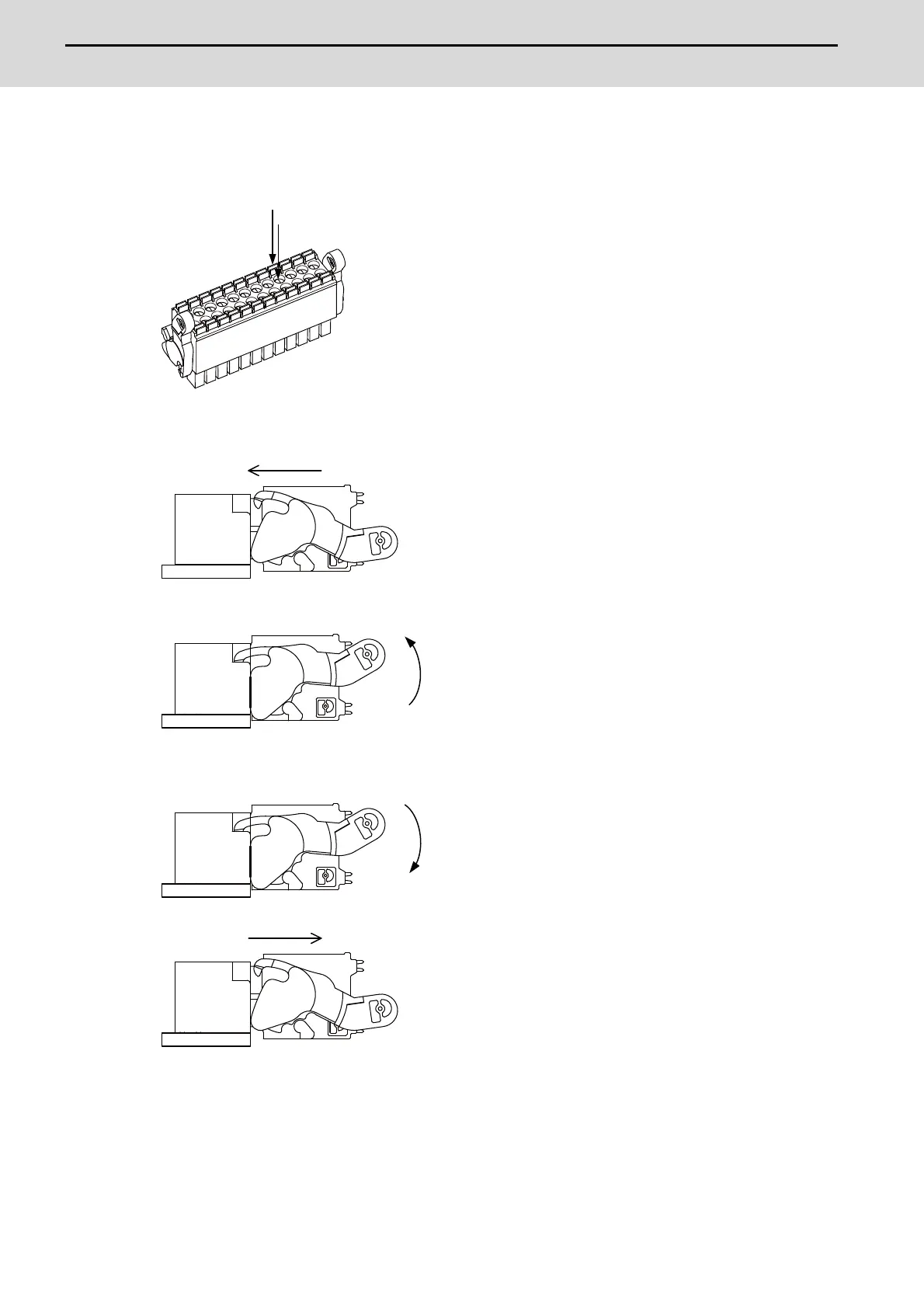

[Mounting the wire]
(1) Push in the wire opening lever (orange) using a slotted screwdriver (blade width: 2.5mm).
(2) Insert the wire and then pull the screwdriver out of the wire opening lever.
[Mounting the connector]
(1) Push the connector to the lock and release (LR) lever position.
(2) When the connector is pushed in to the end, the LR lever is applied. If the lever is loose, lift up the latch and
tighten the lever.
[Removing the connector]
(1) Push the lock and release (LR) levers down simultaneously.
(2) After unlocking (the connector is pushed out by the LR lever and left half-inserted), pull out the connector.
(䠍)
䠄2)
