M800S/M80/E80 Series Connection and Setup Manual
22 Setting the Position Detection System
474
IB-1501269-J

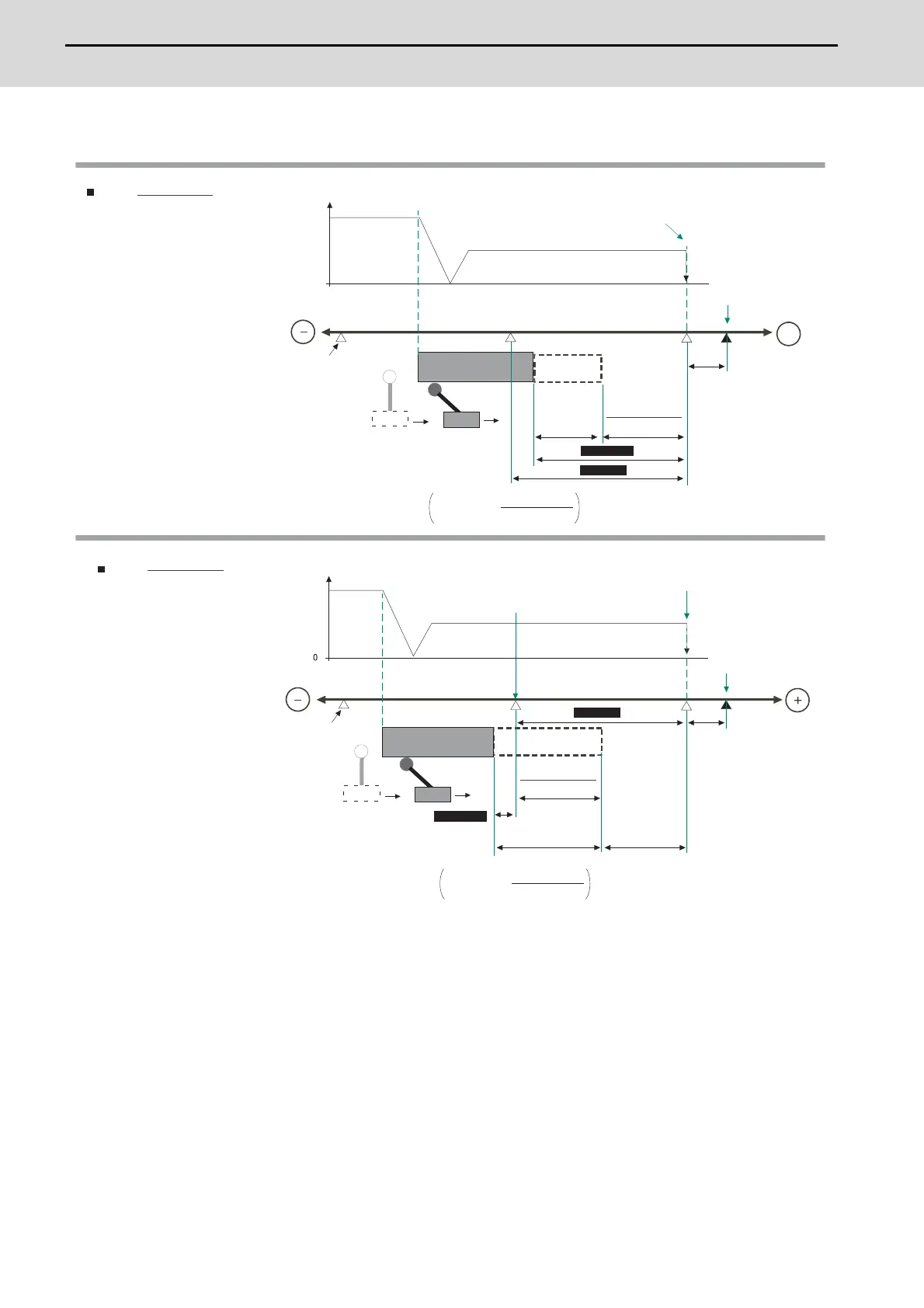

(5) Determine the grid mask amount according to the state as shown below.
(6) Set the determined grid mask amount for "#2028 grmask" of the [ZERO-RTN PARAM] screen.
Switch
OFF
ON
0
+
#2028
Grid mask
amount
Grid space
2
Position
Electrical zero point
(the first grid after the switch is turned ON and OFF)
Grid amount
Grid space
#2027 G28sft
Reference position
shift distance
Grid mask amount = Grid amount +
Grid space
2
When is smaller
than the grid amount
Axis speed
Reference position
Near-point dog
Grid point
Grid mask
Grid space
2
When is larger
than the grid amount
Grid space
2
OFF
ON
Position
Axis speed
Reference position
Near-point dog
Grid point
Grid mask
#2028
Grid mask amount
Grid space
2
Grid amount
Grid space
#2027 G28sft
Reference position
shift distance
Electrical zero point before the grid mask setting
(the exact point is set after the grid mask setting)
Electrical zero point after the grid mask setting
Grid mask amount = Grid amount -
Grid space
2
Grid amount
after the grid mask
setting
Switch
