M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
47
IB-1501269-J

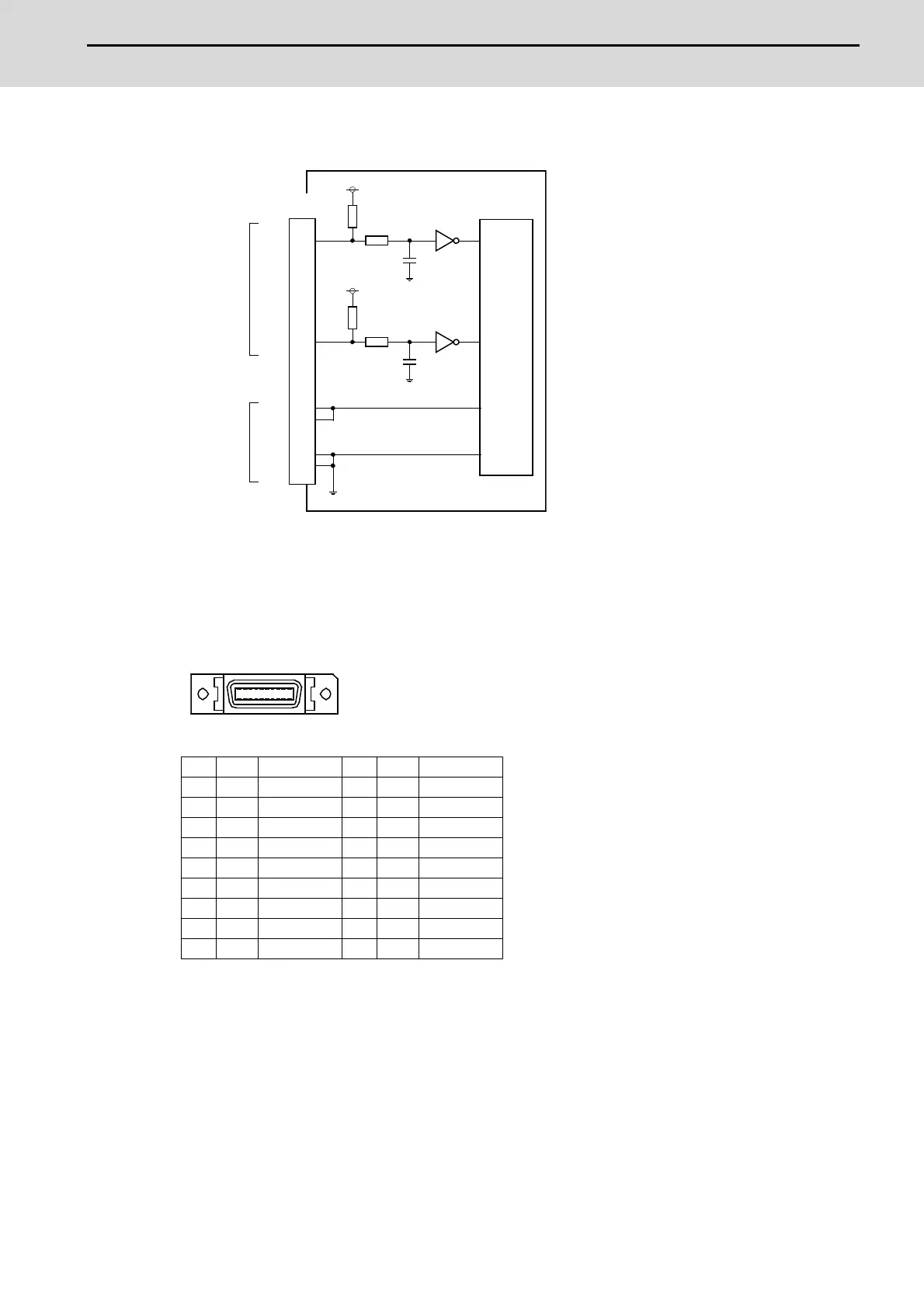

Input/output circuit
When using the synchronous feed encoder and the manual pulse generator at the same time, connect
the manual pulse generator to the operation panel I/O unit or use a distribution cable made by the
machine tool builder.
(16) SKIP (SKIP input 8 points)
- Connect connector case with FG pattern.
<Cable side connector type>
Plug : 10120-3000PE
Shell : 10320-52F0-008
Recommended manufacturer : 3M
(Note) When using the jackscrew M2.6-type 10320-52A0-008 for the shell, do not fasten the screws
too tightly otherwise the connector and the PCB may be damaged.
(Manufacturer recommended tightening torque: 0.20±0.05Nꞏm)
1 COM GND 11 COM GND
2 I SKIP IN1 12 I SKIP IN2
3 I SKIP IN3 13 I SKIP IN4
4 NC 14 NC
5 COM GND 15 COM GND
6 NC 16 NC
7 I SKIP IN5 17 I SKIP IN6
8 I SKIP IN7 18 I SKIP IN8
9 NC 19 NC
10 NC 20 NC
0V
+5V
8
7
18
17
10
20
1
11
0V
+5V
+5V
+5V
0V
0V
0V
HA1A
HA2A
HA1B
HA2B
R
C
R
R
C
R
Connector
pin No.
Control
circuit
Signal
input
Power
output
To Next Page
