M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
48
IB-1501269-J

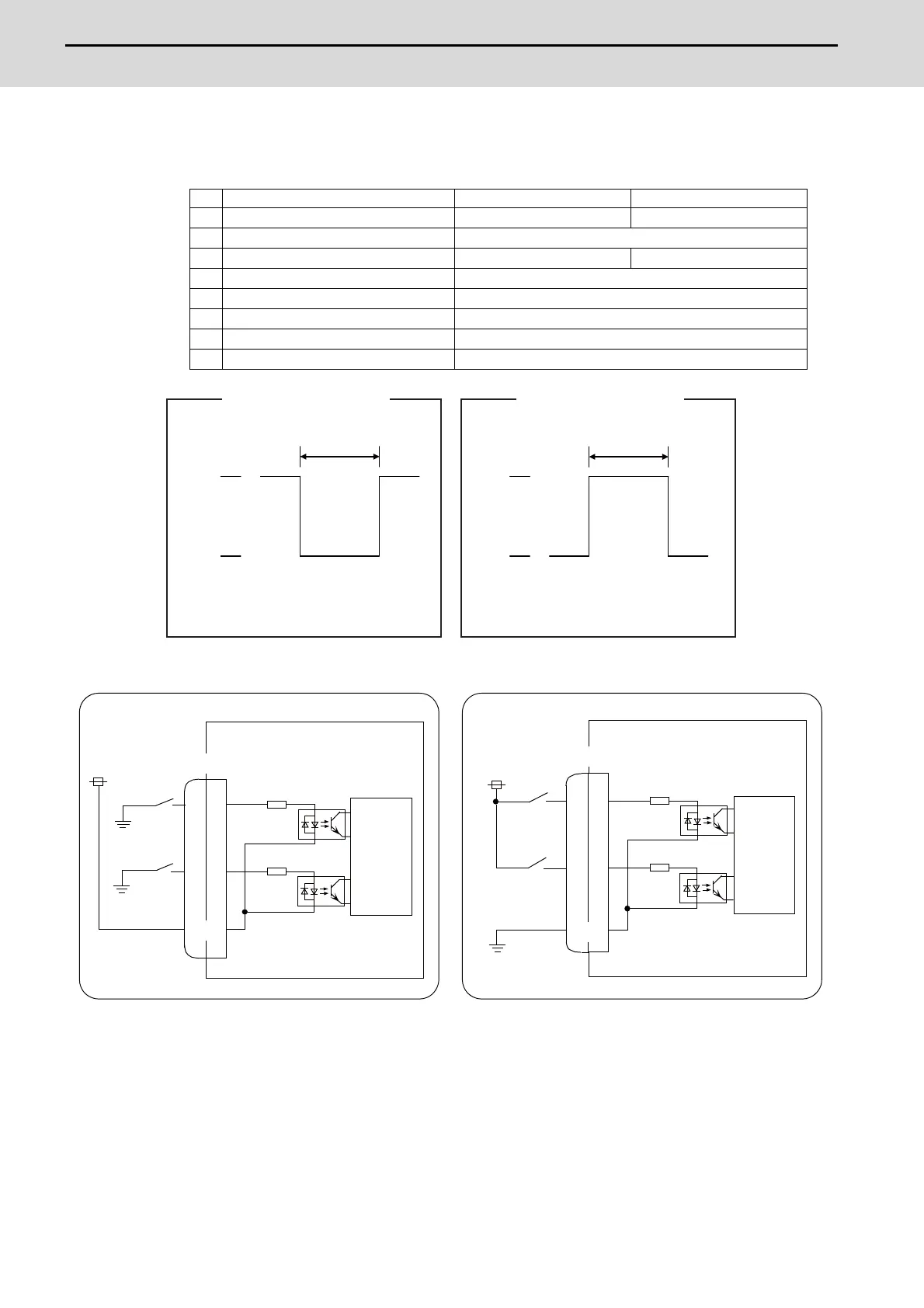

(a) Skip signal input conditions
Use the input signal within the following condition ranges.
24V common 0V common
1 Input voltage at external contact ON 6V or less 18V or more, 25.2V or less
2 Input current at external contact ON 6mA or more
3 Input voltage at external contact OFF 20V or more, 25.2V or less 4V or less
4 Input current at external contact OFF 2mA or less
5 Input resistance 2.35kΩ
6 Input signal holding time (Ton) 2ms or more
7 Internal response time 0.08ms or less
8 Machine side contact capacity +30V or more, 16mA or more
Ton
0V
+24V
External signal
Connection to 24V common
0V
+24V
Ton
External signal
Connection to 0V common
0V(RG)
0V(RG)
0V(RG)
SKIP
SKIP
COM
COM
2.35kΩ
2.35kΩ
2.35kΩ
2.35kΩ
24VDC
(Machine side)
Control
circuit
Control
circuit
(Machine side)
Connection to 24V common Connection to 0V common
24VDC
