M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
49
IB-1501269-J

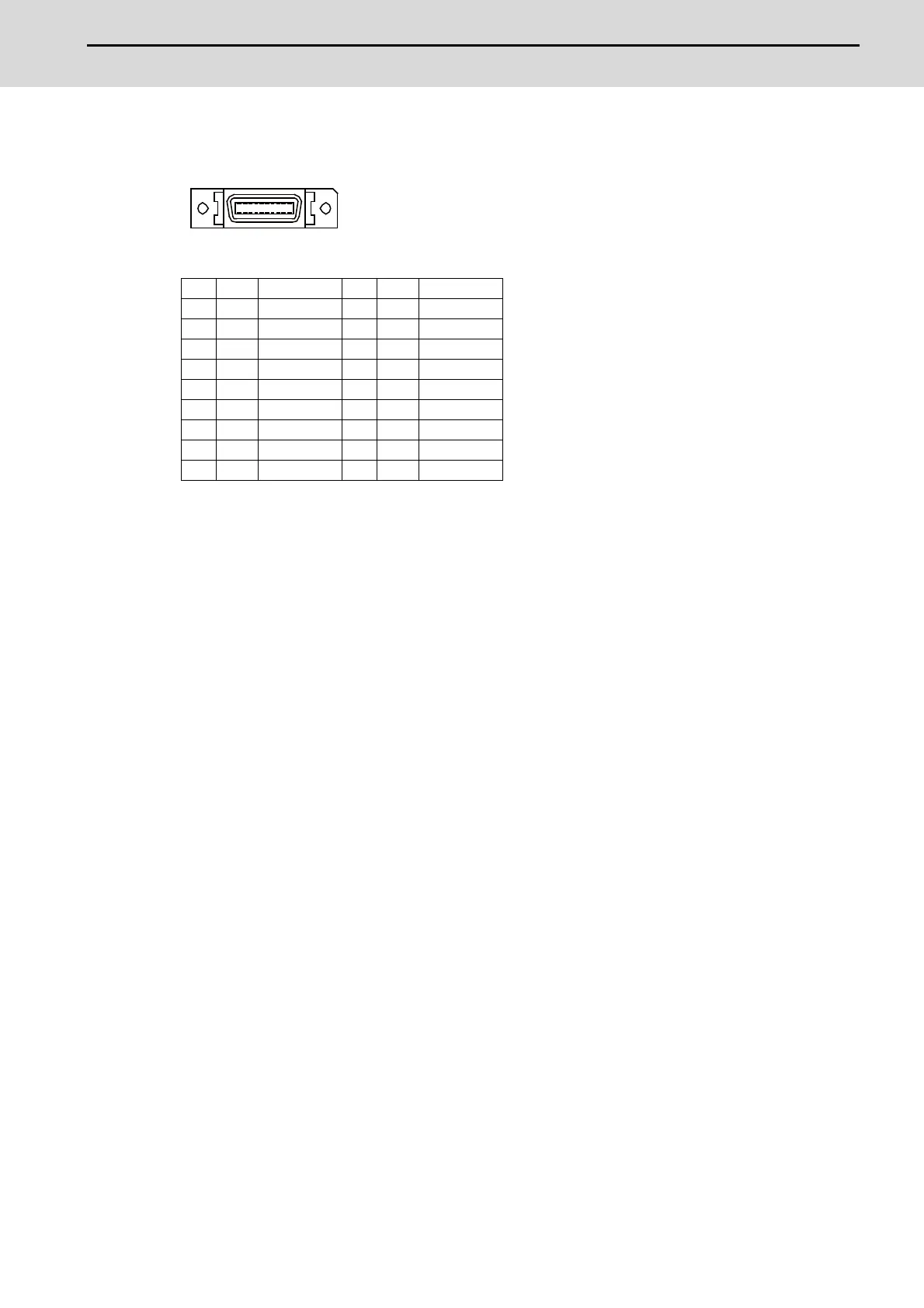

(17) SIO (RS-232C communication 2ch)
- Connect connector case with FG pattern.
<Cable side connector type>
Plug : 10120-3000PE
Shell : 10320-52F0-008
Recommended manufacturer : 3M
(Note) When using the jackscrew M2.6-type 10320-52A0-008 for the shell, do not fasten the screws
too tightly otherwise the connector and the PCB may be damaged.
(Manufacturer recommended tightening torque: 0.20±0.05Nꞏm)
1 0V 11 0V
2 I RD1(RXD1) 12 OSD1(TXD1)
3 ICS1(CTS1) 13 ORS1(RTS1)
4 I DR1(DSR1) 14 OER1(DTR1)
5 0V 15 0V
6 NC 16 NC
7 I RD2(RXD2) 17 OSD2(TXD2)
8 ICS2(CTS2) 18 ORS2(RTS2)
9 I DR2(DSR2) 19 OER2(DTR2)
10 NC 20 NC
To Next Page
