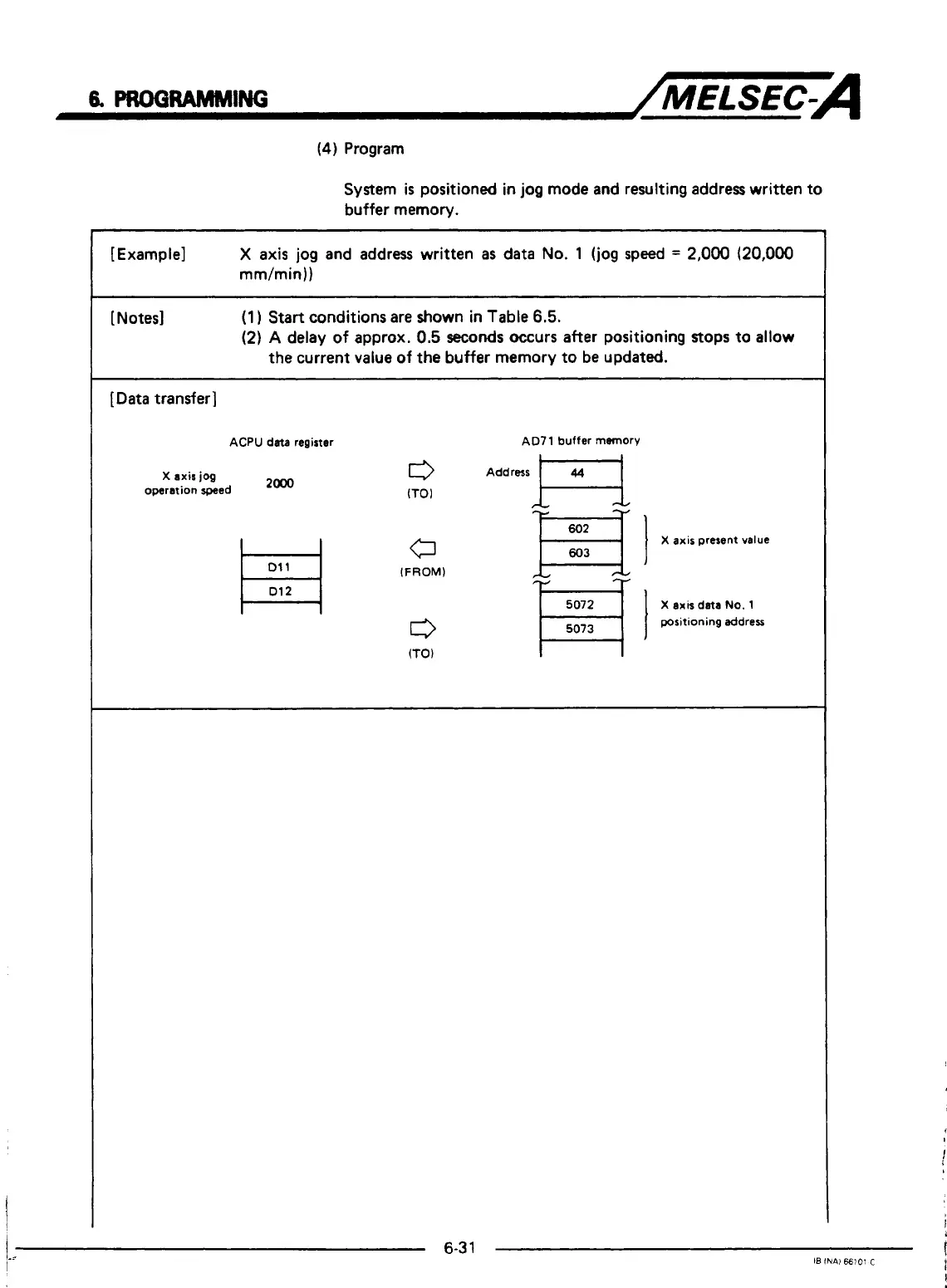

(4) Program
System is positioned in jog mode and resulting address written to
buffer memory.
[Example] X axis jog and address written as data No. 1 (jog speed = 2,000 (20,000
mrn/rnin))
[Notes] (1 ) Start conditions are shown in Table 6.5.
(2) A delay of approx. 0.5 seconds occurs after positioning stops to allow
the current value of the buffer memory to be updated.
[Data transfer]
ACPU data register
AD71 buffer memory
X axis Dresent value
X axis data No. 1
positioning address
IB INA) 6610: C
