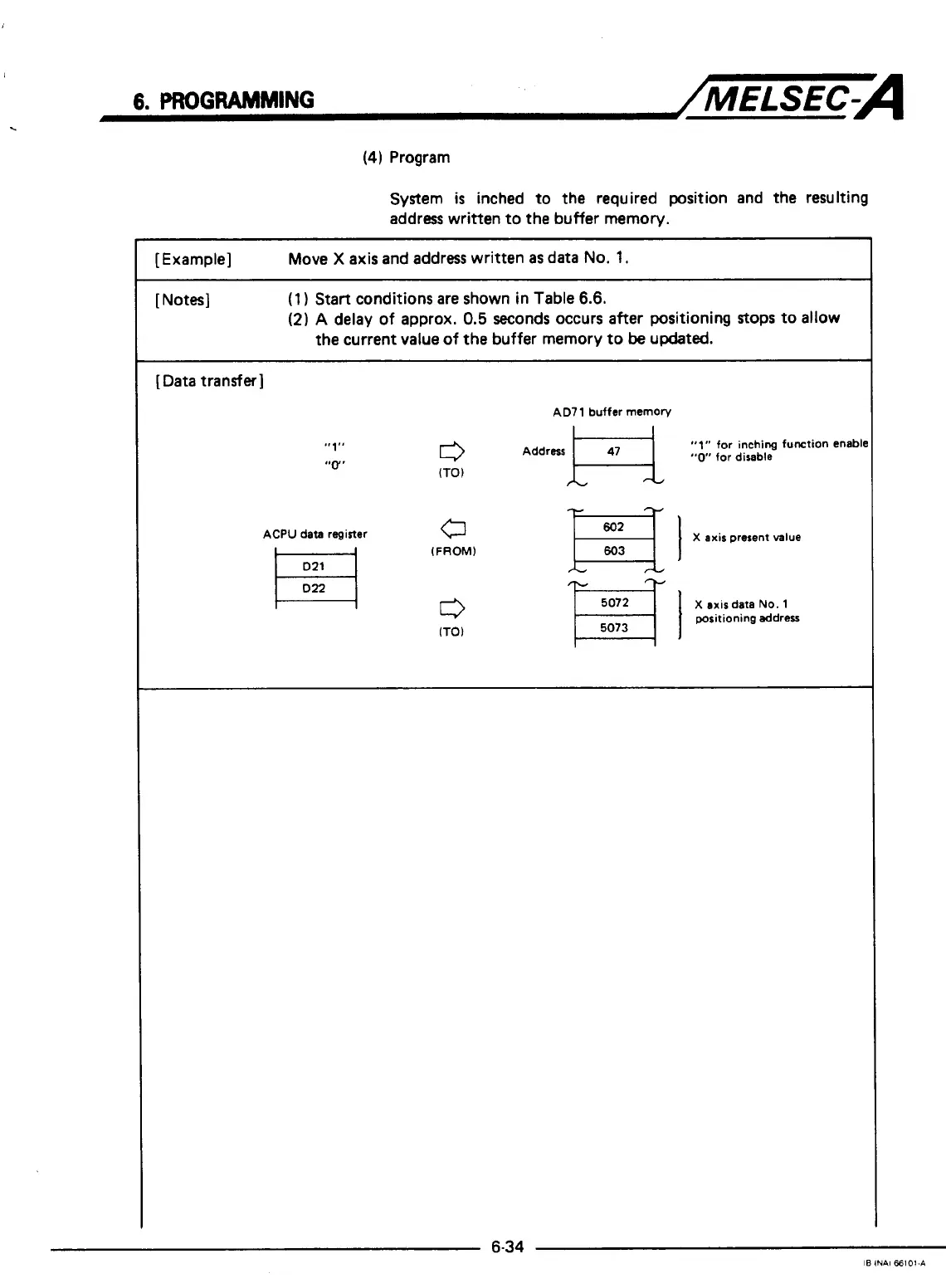

6. PROGRAMMING /MELSEC=A
(4) Program
System is inched to the required position and the resulting
address written to the buffer memory.
[Example] Move X axis and address written as data No. 1.
[Notes] (1 ) Start conditions are shown in Table 6.6.
(2) A delay of approx. 0.5 seconds occurs after positioning stops to allow
the current value of the buffer memory to be updated.
[Data transfer
I
"1"
"(Y'
ACPU data register
0
(FROM)
AD71 buffer memory
Address
"1" for inching function enable
47
"0' for disable
5.
X axis data No. 1
positioning address
