9. MAINTENANCE /MELSEC-A
9.2.2 Changing the battery

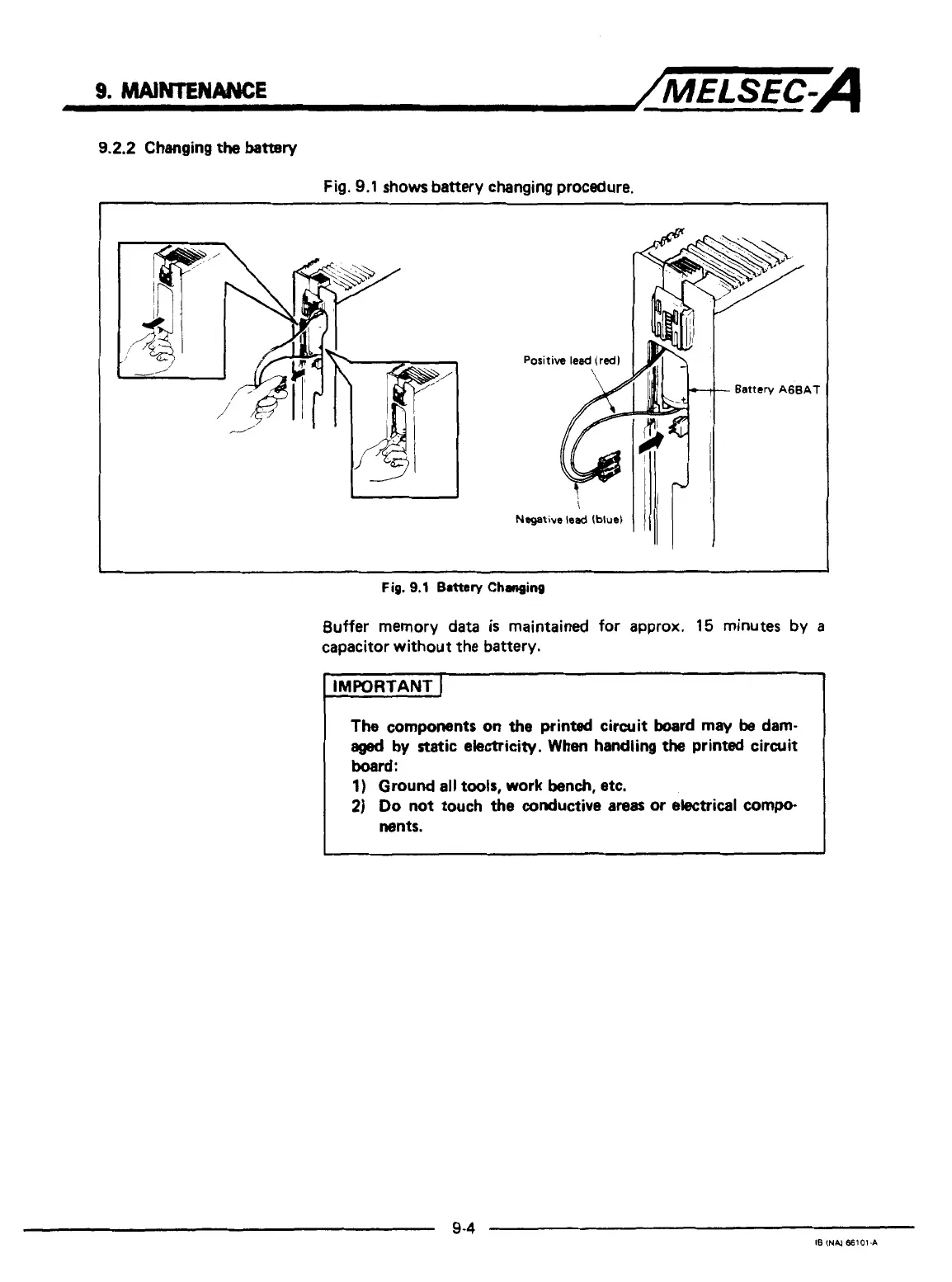

Fig. 9.1 shows battery changing procedure.
\
Negative lead (blue)
Fig. 9.1 Battery Changing
Buffer memory data is maintained for approx. 15 minutes by a
capacitor without the battery.
IMPORTANT 1
The components on the printed circuit board may be dam-
aged by static electricity. When handling the printed circuit
board:
1) Ground all tools, work bench, etc.
2) Do not touch the conductive areas or electrical compo-
nents.
E
1
I
I
I
i
9-4
18 (NAl e101.A
i
I
I
