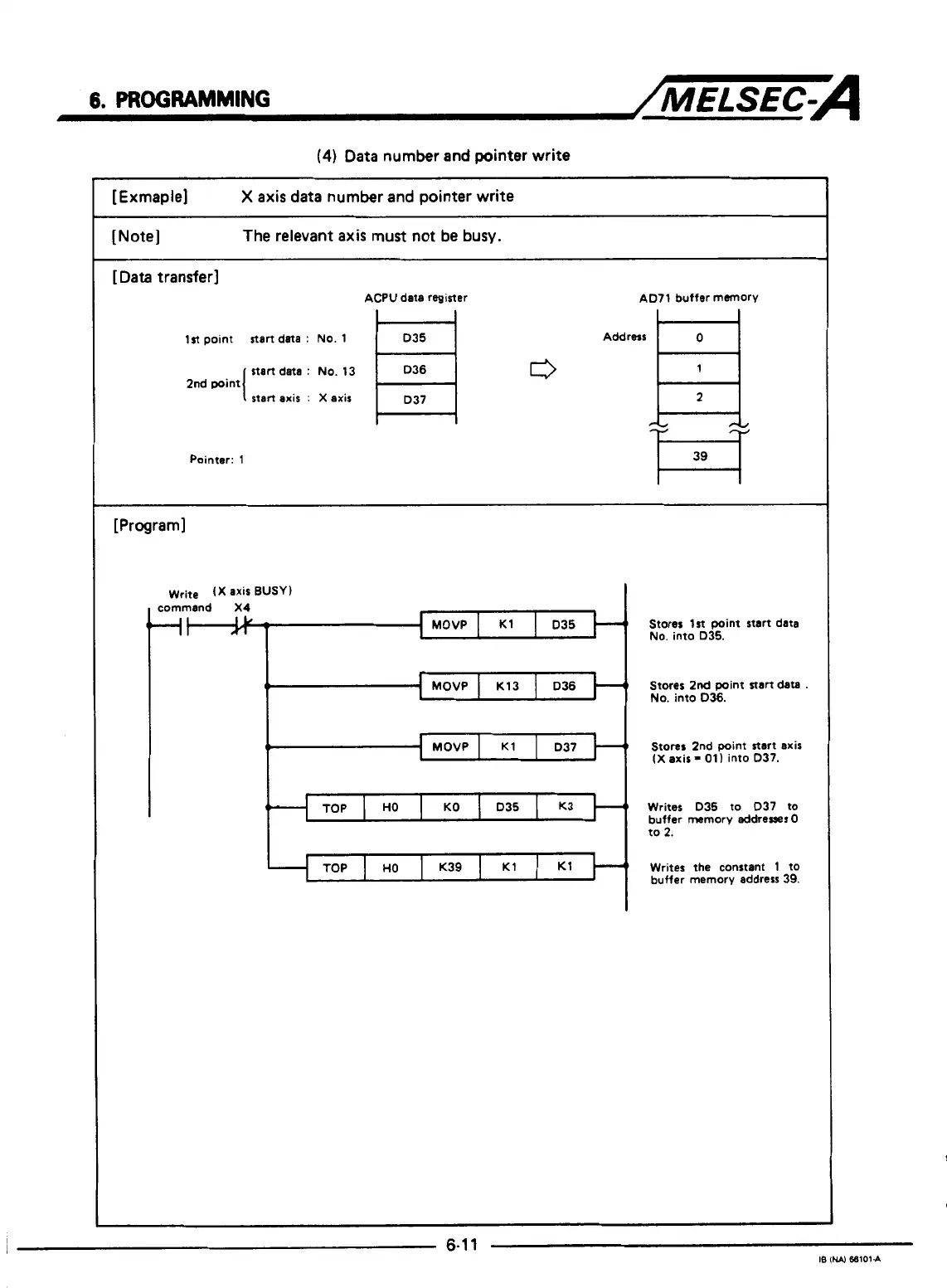

6. PROGRAMMING /MELSEC-A
(4) Data number and pointer write
[Exmaple] X axis data number and pointer write
[Note] The relevant axis must not be busy.
[Data transfer]
ACPU data register
1st point start data : No. 1
2nd point
I
start data : No. 13
start axis : X axis
Pointer:
1
AD71 buffer memory
Address
[Program]
Stores 1st point start data
No. into D35.
Stores
2nd point start data .
No. into DX.
Stores 2nd point start axis
(X axis - 01) into 037.
Writes D35 to
037 to
to 2.
buffer memory addresses 0
Writes the constant 1 to
buffer memory address 39.
I
1 6-1 1
18 IW WlOlA i
1
f
