400
EFCALL, EFCALLP
Function
(1) When the EFCALL(P) instruction is executed, the non-execution processing of the subroutine program of the pointer
designated by Pn is performed.
(a) Non-execution processing is identical to the processing that is conducted when the condition contacts for the
individual coil instructions are in the OFF state.
(b) The operation results for the individual coil instructions following non-execution processing will be as follows,
regardless of the ON/OFF status of the individual contacts:
(2) The EFCALL (P) instruction is used in combination with the ECALL (P) instruction.
The EFCALL (P) can also be used to call a subroutine program that uses a local
pointer from a different program file.
OUT instruction........................................................ Forced OFF
SET instruction
Maintains status
RST instruction
SFT instruction ................
Basic instructions
Application instructions
PLS instruction
Processing identical to when condition contacts are OFF
Pulse generation
instruction ( P)
................
Present value of low speed/high speed timers......... 0
Present value of retentive timer
................ Preserves
Present value of counter

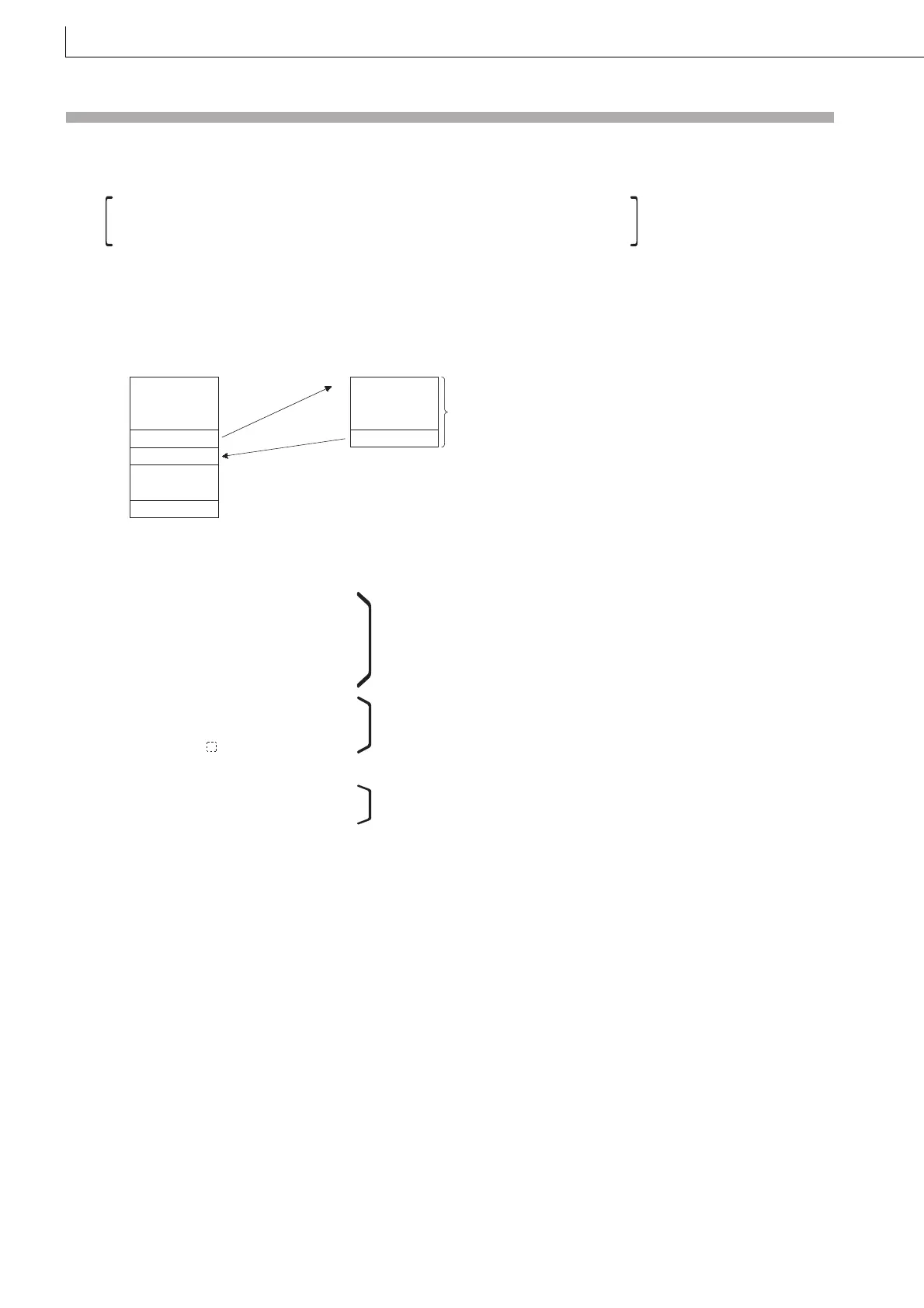

[File name: MAIN] [File name: ABC]
Main routine
program
Subroutine
program
EFCALL "ABC" Pn
END
RET
Pn
Non-execution processing
is executed when the
command for the
EFCALL(P) instruction is
turned from ON to OFF.
To Next Page
