TO, TOP, DTO, DTOP
Operation Error
(1) In any of the following cases, an operation error occurs, the error flag (SM0) turns ON, and an error code is stored into
SD0.

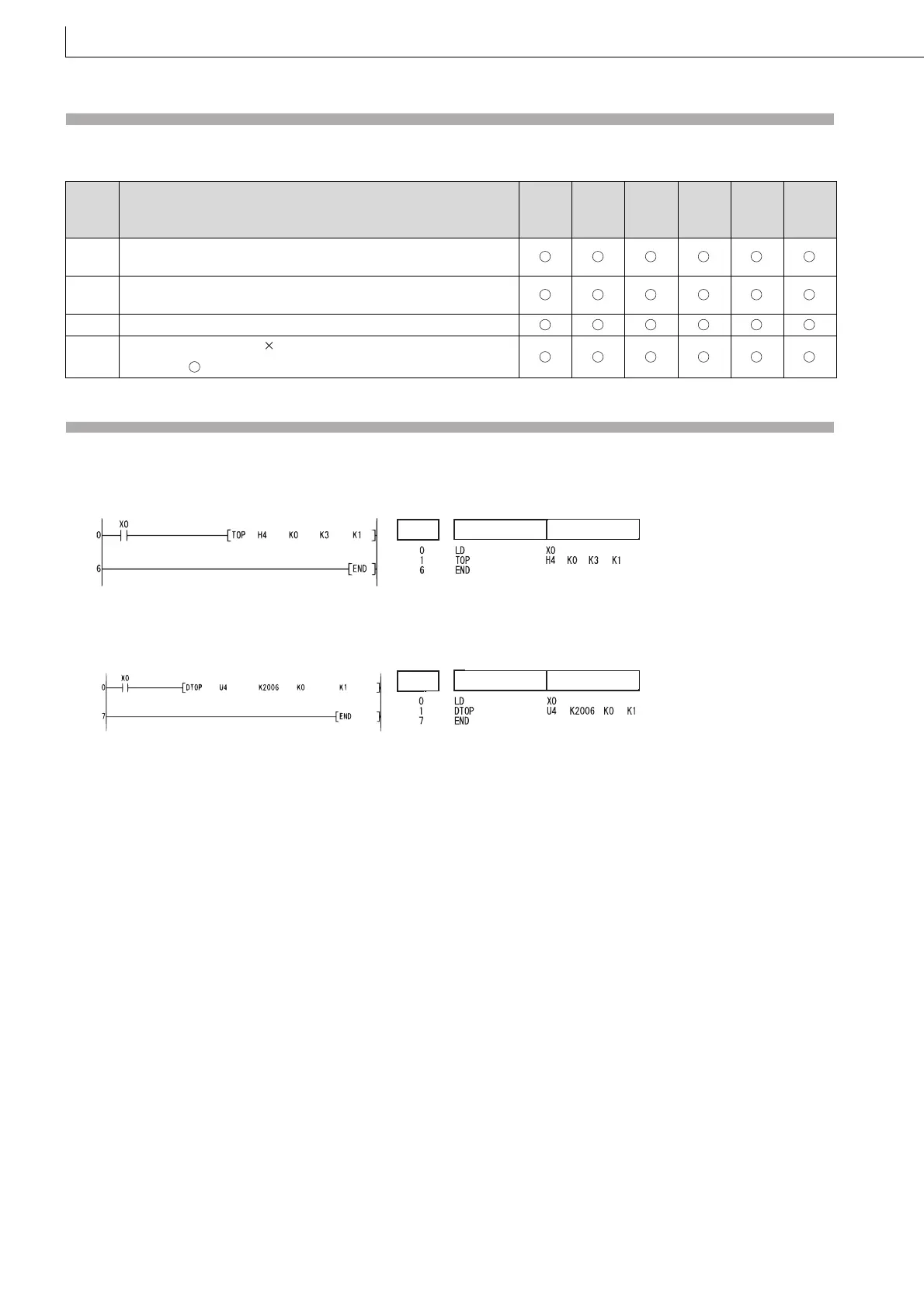

Program Example
(1) The following program sets "A/D conversion disabled" to the CH1 and CH2 of the Q68ADV at I/O numbers 040 to 04F
when X0 is turned on (writes "3" to the buffer memory address 0).
[Ladder Mode] [List Mode]
(2) The following program zeroes the positioning address/movement amount of axis 1 of the QD75P4 at I/O numbers 040 to
05F when X0 is turned on (writes 0 to the buffer memory addresses 2006 and 2007).
[Ladder Mode] [List Mode]
Error
code
Error details
Q00J/
Q00/
Q01
QnH QnPH QnPRH QnU LCPU
1402
An error has been detected in an intelligent function module at the
execution of the instruction.
1412
There has been no exchange of signals with an intelligent function
module at the execution of the instruction.
2110 The I/O number specified in n1 is not for the intelligent function module.
4101
The range of n3 points (2 n3 points for the DTO) from the device
specified in exceeds the specified device range.
S
Step
Instruction
Device
Step
Instruction
Device
