SCL, SCLP, DSCL, DSCLP

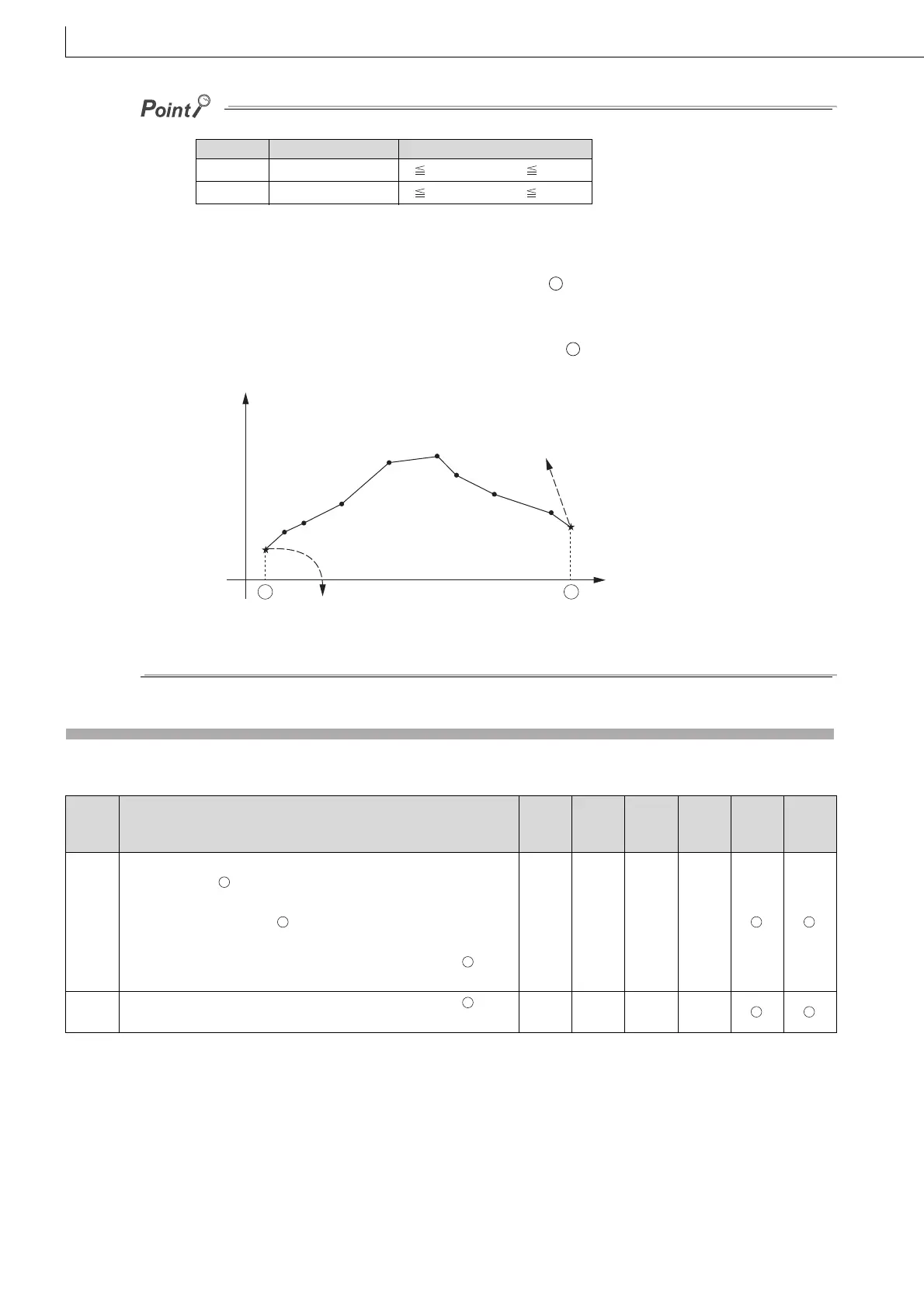

(1) There are two searching methods that depend on whether SM750 is on or off.
(2) When the scaling conversion data are set in ascending order, the searching methods change from one to the other
depending on the SM750 status. Therefore, the processing speed also changes. The number of searches determines
the processing speed. Fewer number of serches make the processing run faster.
(a) If the data processing speed with the sequential search rises:
If the number of coordinates is highest and the input value is within the coordinate range from 1 to 15 point,
the number of sequential searches will be 15 or smaller. Therefore, the data processing speed with the
sequential search will rise.
(b) If the data processing speed with the binary search rises:
If the maximum number of searches is 15 and the input value is out of the coordinate range, 16 or over, the
number of binary searches will be equal to the number of sequential numbers or smaller. Therefore, the data
processing speed with the binary search will rise.
Operation Error
(1) In any of the following cases, an operation error occurs, the error flag (SM0) turns on, and an error code is stored into
SD0.
SM750 Searching method Range of number of searches
OFF Sequential search
1 Number of times
32767
ON Binary search
1
Number of times 15
Error
code
Error details
Q00J/
Q00/
Q01
QnH QnPH QnPRH QnU LCPU
4100
The X coordinates of the scaling conversion data positioned before the
point specified in are not set in ascending order. (However, this error
is not detected when SM750 is on.)
The input value specified in is not within the range of the scaling
conversion data set.
The number of X and Y coordinates of the device specified in is not
within the range from 1 to 32767.
–– –– –– ––
4101
The number of X and Y coordinates of the device specified in is not
within the specified range.
–– –– –– ––
S1
S1
Number of coordinate points=32767
Number of sequential searches=32767
Number of binary searches=15
Number of sequential searches=1
Number of binary searches=15
The processing speed with sequential searches
rises since the number of binary searches is
larger than the number of sequential searches.
The processing speed with binary search
rises since the number of binary searches is
smaller than the number of sequential searches.
S1
S1
S1
S1
S2
S2
