UNIRD, UNIRDP
n1 : Value obtained by dividing the head I/O number of the reading module information source by 16 (0 to FFn) (BIN 16 bits)
: Head number of the devices where the module information will be stored (device name)
n2 : The number of points of read data (0 to 256) (BIN 16 bits)
Function
(1) Reads the module information as much as designated by n2 from the module designated by n1, and stores that
information into the area starting from the device designated by .
(Reads the status of the actually installed modules even if the module type and the number of points are changed by I/O
assignment.)
Remark
The value of n1 is specified by the first 3 digits of the hexadecimal 4 digits that represent the head I/O number of the
module from which the module information is read.
QCPU
LCPU

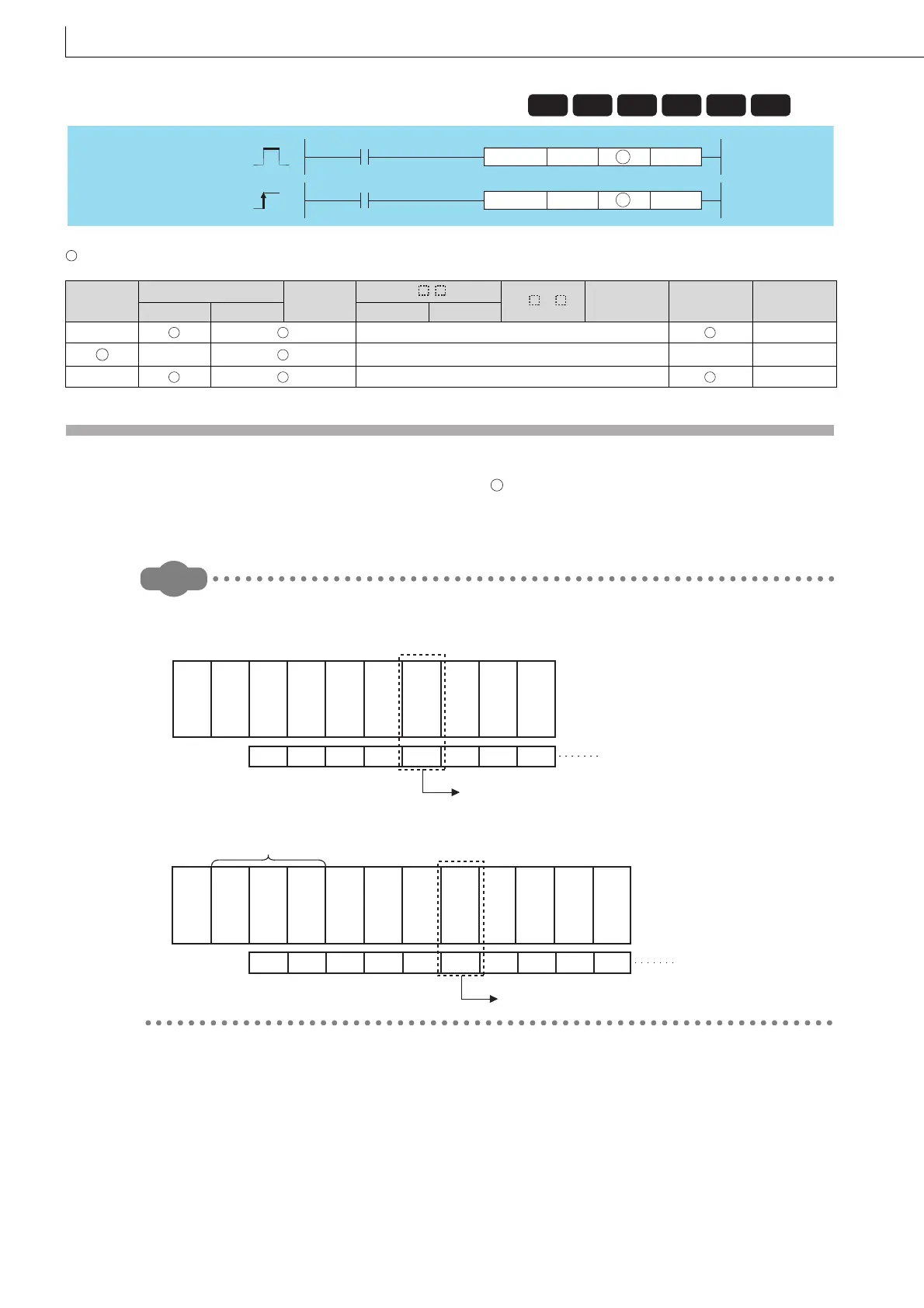

7.18.9 UNIRD, UNIRDP Reading module information
7.18.9 UNIRD, UNIRDP
Setting
Data
Internal Devices
R, ZR
J\
U\G
Zn
Constants
K, H
Other
Bit Word Bit Word
n1 –– ––
–– –– –– ––
n2 –– ––
Basic
Process
High
performance
Redundant Universal LCPU
n2
UNIRD
UNIRDP
Command
Command
UNIRD
D
n1
UNIRDP
n2
D
n1
D
D
D
Power
supply
module
CPUQX10 QX10QX10 QX10
Q68
ADV
QY41
P
QY10 QY10
0000
H 0010H 0020H 0030H 0040H 0050H 0070H 0080H
Head I/O number configured in
the I/O assignment setting
Specify K4 or H4 as the head I/O number to be read.
Power
supply
module
CPU
Built-in
I/0
Built-in
CC-Link
LX40
C6
LX40
C6
LX40
C6
L60
AD4
LY41
NT1P
LY10
R2
LY10
R2
LY10
R2
0000
H 0010H 0030H 0040H 0050 H 0060H 0070H 0090H 00A0H 00B0H
CPU module
(L26CPU-BT)
Specify K6 or H6 as the head I/O number to be read.
Head I/O number configured in t
h
I/O assignment setting
