690

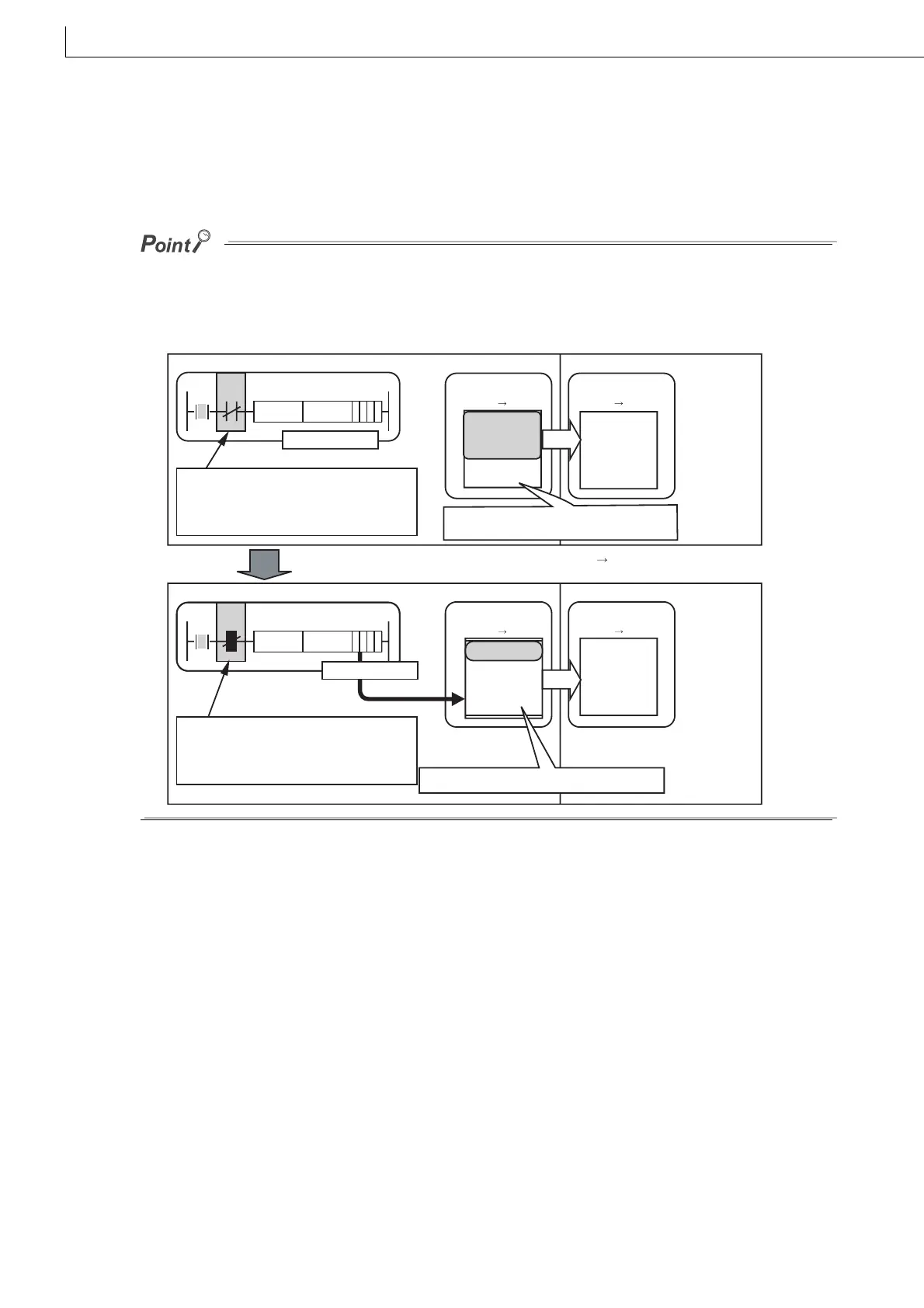

(7) Interlock when using the multiple CPU high-speed transmission dedicated instruction
(a) Special relays SM796 to SM799 (maximum number of used blocks for multiple CPU high-speed transmission
dedicated instruction setting) can be used as an interlock for the multiple CPU high-speed transmission dedicated
instruction.
When executing the multiple CPU high-speed transmission dedicated instructions concurrently, use SM796 to
SM799 as an interlock for the instructions.
When using special relays SM796 to SM799, set the maximum number of blocks for the instruction used for each CPU to
special registers SD796 to SD799. (For example, when the maximum number of blocks for the multiple CPU high-speed
transmission dedicated instruction to be executed to CPU No.3 is 5, set 5 to SD798.)
When the multiple CPU high speed transmission area becomes equal to or less than the number of blocks set at SD796 to
SD799, the corresponding special relay (SM796 to SM799) turns on.
CPU No.1
CPU No.2
Execution
command
SM
797
DP.DDWR
H3E1
Number of request blocks:4
Turns on when the number of empty blocks
is less than the number of blocks used for
the DP.DDWR instruction.
(The DP.DDWR instruction is not executed.)
Multiple CPU high speed transmission area Multiple CPU high speed transmission area
Send area
(1 2)
Receive area
(1 2)
During use
Number of empty blocks:
2
Insufficient for writing a request from
the DP.DDWR instruction.
Empty area of the request blocks in send area (1 2) has been increased.
CPU No.1
CPU No.2
Execution
command
SM
797
DP.DDWR
H3E1
Number of request blocks:4
Multiple CPU high speed transmission area Multiple CPU high speed transmission area
Send area
(1 2)
Receive area
(1 2)
During use
Number of empty blocks:
8
Turns off as empty blocks by the number of blocks
used for the DP.DDWR instruction became available
(The DP.DDWR instruction can be written.)
The request from the DP.DDWR instruction can be written.
To Next Page
