8 - 43

8. DEBUGGING FUNCTION

The following shows the procedures to perform step execution.

All operations are performed on Monitor/test screen in the ladder mode (debugging).

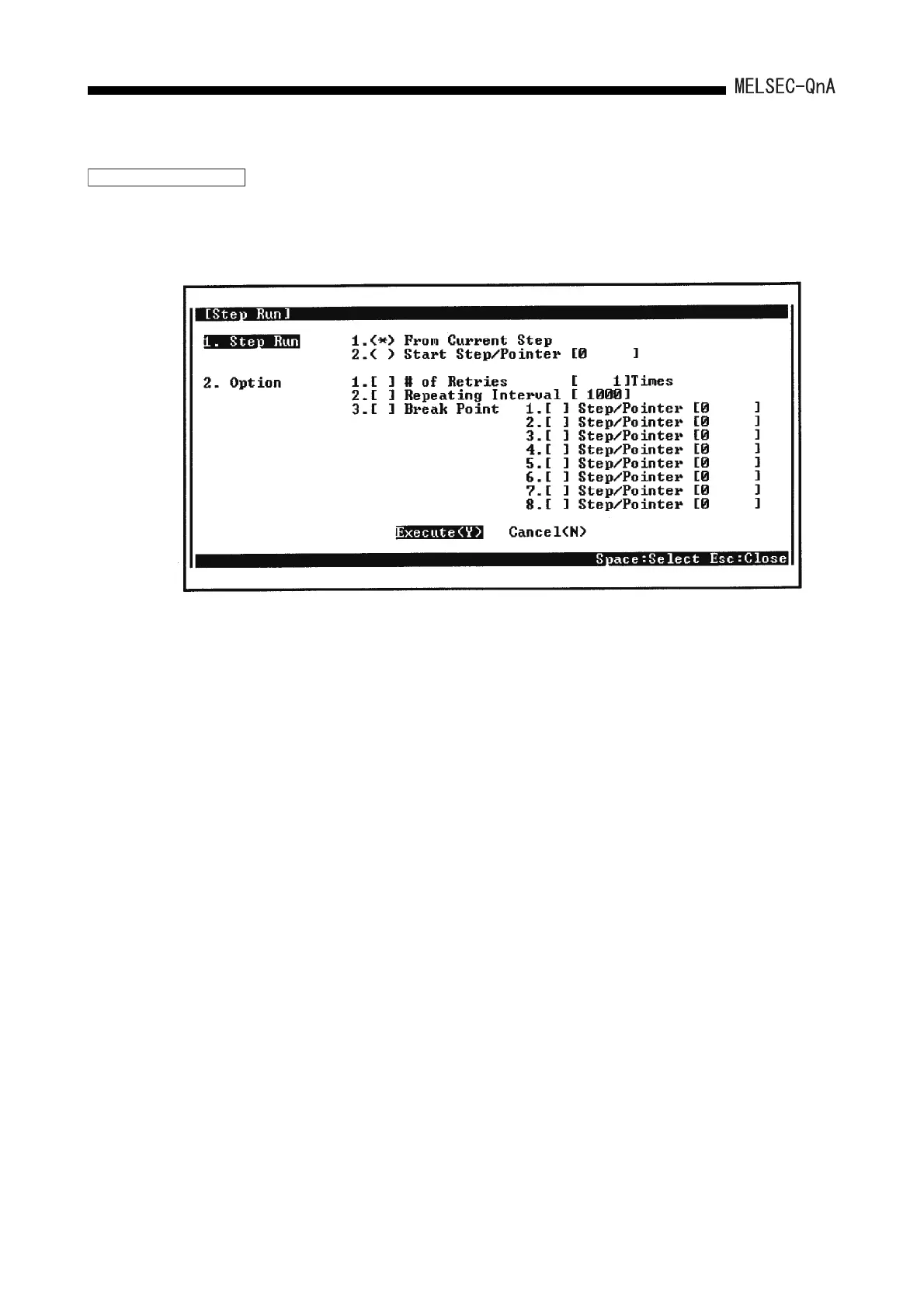

(1) Select "B/Step Run".

Operation Procedures
